Product Details:
Payment & Shipping Terms:
|
| Geocell Materia: | HDPE | Geocell Color: | Black, Green, Yellow |
|---|---|---|---|
| Geocell Strength: | 1420N/10cm, 1200N/10cm, 1000N/10cm | Geocell Height: | 50mm, 75mm, 100mm, 150mm, 200mm |
| Geocell Thickness: | 1.0mm, 1.1mm, 1.2mm, 1.3mm, 1.5mm, 1.6mm, 1.7mm | Geocell Welding: | 300mm, 330mm, 400mm, 450mm, 500mm, 600mm, 660mm, 712mm, 800mm, 900mm, 1000mm |
| Geocell Surface: | Smooth And Textured | Geocell Hole: | With Hole Or Without Hole, Circular Hole Or Rectangle Hole |
| HS Code: | 3902100090 | Package: | Pallet |
| High Light: | geotextile filter fabric,geotextile road fabric |
||
Geocell And Geoweb, Plastic Gravel Stabilizer Geocell Made From HDPE Material

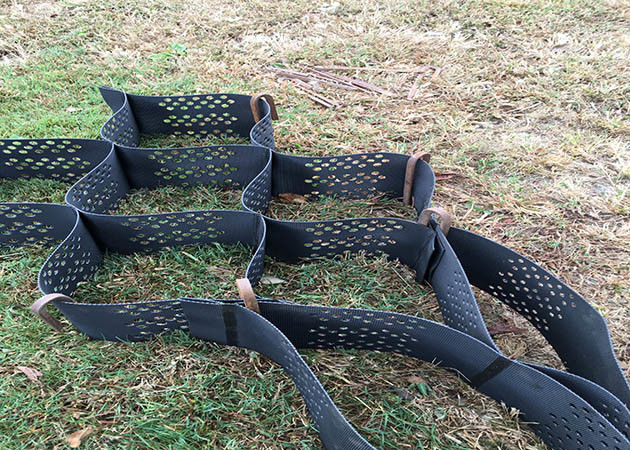

HDPE Geocell Description
Made of welding high tensile HDPE broad bands. It has many cells and is very flexible.
Geocell made of PE or PP sheets through High intensity ultrasonic welding to be three-dimensional net structure material.
It uses local materials (sand, gravel, mud, etc.) as a filler material to be a combination of the steady structurel,achieve a high load carrying capacity.can make roadbed more steady, but also can plant on it, green the slope stability.
Geocell Specification
| Name | HDPE Geocell / Geoweb |
| Height (D) | 50mm, 75mm, 100mm, 150mm, 200mm |
| Thickness | 1.1mm ,1.2mm, 1.3mm, 1.5mm, 1.6mm,1.7mm |
| Welding Distance (C) | 300mm, 330mm, 400mm, 450mm, 445mm, 500mm, 600mm, 660mm, 712mm, 800mm, 900mm, 1000mm |
| Surface | Smooth or Textured Perforated or Withtout |
| Color | Black, Green, Yellow |
| Samples | Free |
Geocell Features:
light weight, abrasion resistance, chemical stability, light oxidative aging, acid, suitable for different soil and desert soil conditions.
Geocell Applying Area
1. Be used for firm the roadbed of railroad;
2. Be used for firm highway soft foundation handling;
3. Be used for dike and retaining wall, which can bear load force;
4. Be used to harness the shoal water runway;
5. As pipeline and the sewer's propping up structure;
6. Be used for mixed type retaining wall that prevent the slope from falling down and bear load force;
7. Be used for independent wall, dock and breakwater;
8. Be used to harness the desert, beach and riverbed ,river bank
HDPE Geocell Function
1. Slope Protection
The geocell Slope protection system prevents sliding or sloughing off by providing sufficient weight at the foot and or along the face of the slope.
2. Earth Protection
The geocell earth protection system minimizes and eliminates erosion actions of wind and water on exposed soils.
3. Channel Protection
The geocell channel protection system protects channel slops from soil erosion and confines the infill material that from the channel bed and banks.
4. Ground Stabilization
The Geocell Ground Stabilization System provides cost-effevtive solution to ground stabilization project.
5. Vegetation Retention
The Geocell Vegetation retention system’s horizontal create a natural environment for sustainable vegetation and allow water to collect through the wall fascia, and minimizing runoff.
