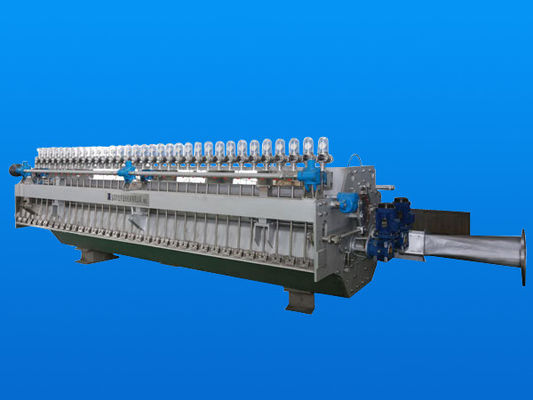

Air Cushion Headbox For Kraft Paper Mills

Air Cushion Headbox For Kraft Paper Mills
Air Cushion Headbox For Kraft Paper Mills Air Cushion Headbox For Kraft Paper Mills

Large Image :  Air Cushion Headbox For Kraft Paper Mills

Product Details:
Place of Origin: China
Brand Name: Huatao
Certification: ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Price accept negotiation
Packaging Details: Standard Export Package
Delivery Time: 25 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 set per month
Detailed Product Description
Application: Paper Making Materail: Stainless Steel
Type: Air Cushion Type Origin: China
High Light:

paper mill machine parts


paper machine components

Paper Making Machine Parts - Air Cushion Type Headbox for Kraft Paper Mills


Air cushion headbox is a headbox applying to paper machine speed of above 250m/min, as a key part of paper machine. With the development of the quality of life, we demand high quality of paper use, it promotes the rapid development of paper industry. Headbox is dramatically important equipment in whole papermaking process, it is the key part of connecting slurry preparation and paper shape, the headbox also decides the paper quality and papermaking speed, it's the throat section of paper machine, and name the heart and accelerator of paper machine. Therefore, it is great significance to strengthen the research and development of headbox automatic control system, as we always use Siemens PLC control system. We also use software method to assure the automatic running model of whole starting procedure, and the flow diagram of software is also given, so that the swiftness and accuracy of system is improved.

The system debug is the link of system design, it decides the operation reliability of system.


In the paper making industry, the air cushioned headbox is key junction for connecting delivering and forming section of paper making machine. In the headbox control system, frequency changer changes the rotate speed of roots blower to control the flow of air. Frequency changer also change rotate speed of fan pump to control the flow of paper pulp, add the pressure of air and pressure of paper pulp is the total pressure value of air cushioned.This value decides the spouting velocity.



Main Technical Parameters


Trimmed Width (mm) 3200 3600 3800
Width of Jet (mm) 3350 3800 4050
Work Speed (m/min) 200-300 200-300 200-300
Diameter of holy roll (mm) 220
Cloth Paste Way Square taper pipe into the slurry,cloth pulp by the organic glass holey plate
Outline size (m) 2.6*4.4*1.6 2.6*4.4*1.6 2.6*5*1.6
Arrangement Left or right hand machine


Air Cushion Headbox For Kraft Paper Mills 0  Air Cushion Headbox For Kraft Paper Mills 1
