Single Layer Polyester Forming Fabric Paper Machine Clothing

Single Layer Polyester Forming Fabric Paper Machine Clothing
Single Layer Polyester Forming Fabric Paper Machine Clothing
video play

Large Image :  Single Layer Polyester Forming Fabric Paper Machine Clothing

Product Details:
Place of Origin: China
Brand Name: huatao
Model Number: 22408
Payment & Shipping Terms:
Minimum Order Quantity: 10 square meter
Price: Price accept negotiation
Packaging Details: pp bags/wooden box
Delivery Time: 3-4 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1200 suqare meter per week
Detailed Product Description
Layer: Single Layer Usage: Forming Section
Material: Polyester WARP DIAMETER: 0.13, 0.20
WEFT DIAMETER: 0.13 0.13, 0.27 0.27 Quality: Excelent
High Light:

paper making felt

,

industrial felt fabric

Single Layer Paper Machine Clothing Polyester Forming Fabric Light weight

Single Layer Forming Fabric:



Polyester forming fabrics are being made with special yarns in 100% polyester. every polyester dryer fabrics will be made to fit in a high degree of stability and long running life.



Brief introduction:



Polyester forming fabric refers generally to the polyester fabrics woven with polyester fiber in spiral and heddle inserting methods for various industrial uses in producing of paper, corrugated paper, paper for train fare, filtration and separation in environmental protection, pharmaceutical, mine, metallurgy, machinery, airspace and other fields.



Forming Fabric Feature:



1. Long service life, wear resistance, the net loss is low.
2. High fatigue resistance, acid, weak alkali resistance.
3. The mesh mark light, forming quality is good.
4. Light weight, easy to transport, set net easy operation.



Forming Fabric Specifications:



According to the weaving, polyester forming fabric can be divided into 4-shed single layer fabrics, 5-shed single layer fabrics, 8-shed single layer fabrics, 7-shed double layer fabrics, 8-shed double layer fabrics, 8-shed double and a half layer fabrics, 16-shed double and a half layer fabrics.

Technical parameters of single layer forming Fabric



FABRIC CODE WARP DENSITY WEFT DENSITY WARP DIAMETER WEFT DIAMETER AIR PERMEABILITY FSI DI
HT40203 40.5 ~ 41.5 29.5 ~ 30.5 0.15 0.20 285CFM 135 14.1
HT25284 27.5 ~ 28.5 22.0 ~ 23.0 0.22 0.28, 0.28 400CFM 86 11.4
HT25305 27.5 ~ 28.5 21.5 ~ 22.5 0.22 0.30, 0.30 505CFM 77 11.3
HT25408-1 27.5 ~ 28.5 17.5 ~ 18.5 0.22 0.40, 0.40 505CFM 70 8.7
HT25408-2 27.5 ~ 28.5 16.5 ~ 17.5 0.22 0.40, 0.40 560CFM 69 9.1

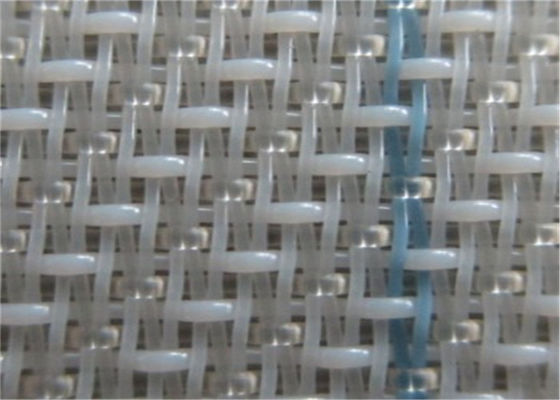

Forming Fabric Picture:



Single Layer Polyester Forming Fabric Paper Machine Clothing 0 Single Layer Polyester Forming Fabric Paper Machine Clothing 1

FAQ:

1. Q: How to confirm the type?
A: There are many methods for us to confirm the type:
1). tell us the specifications data.
2). tell us your requirements as more as possible, and our engineers will give you the best suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.
3). send us the photos with size
4). send us a small piece sample.


2. Q: Waht is the payment terms?
A: We prefer T/T, but for some countries, we will also accept L/C.
So pls feel free about the payment.


3. Q: When will delivery the goods?
A: Usally, we will deliver the goods within 15 working days. And if the quantity is big, it will take about 20-30 working days.


4. Q: How long will the fabric be used?
A: The time is different differ the usage and factory. But we can confirm and make sure that our product can be used longer than any other one in China.


5. Q: Is the package strong enough for the long transportation?
A: Of course it is.
By sea, we will pack every piece into wooden/ polywood box.
By air, we will pack it by strong water-proof bag.




Single Layer Polyester Forming Fabric Paper Machine Clothing 2Looking for ideal Forming Wire Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Forming Wire are quality guaranteed. We are China Origin Factory of Paper Making Forming Wire. If you have any question, please feel free to contact us.
