Product Details:
Payment & Shipping Terms:
|
| Material: | Polyester | Color: | Blue/green/white |
|---|---|---|---|
| Width: | Max13 Meters | Lifetime: | 3-6 Month |
| Layers: | Single Layer, 2.5 And Triple Layer | Fiber Support: | High |
| Application: | Paper Making | Place Of Origin: | Hebei, China |
| Weaving: | 4-shed,5-shed,7-shed,8-shed,16-shed Etc | Brand: | Huatao |
| Usage: | Forming Section For Paper Machine | ||
| High Light: | industrial felt fabric,polyester forming fabrics |
||
1.5 Layer Polyester Forming Fabrics , Polyester Paper Machine Clothing
Forming fabric are designed to retain as much fiber components as possible, meanwhile allowing water to drain through them.Forming fabric can be divided into single, 1.5, double, 2.5, triple (SSB) layer. Which applicable to the machine speed up to 2000m/min.
Forming fabric is characterized by smooth surface without edge curl, good stability and less elongation, unique drainage channel without leaking, good runnability with low load, good fiber support and excellent formation, good life potential.
View more information about Paper Machine Clothings from www.papermachineclothings.com
| Fabric code | Warp density | Weft density |
Warp Dia (mm) |
Weft Dia (mm) |
Permibility | FSI | DI |
|---|---|---|---|---|---|---|---|
| HT40203 |
40.5~41.5
|
29.5~30.5 | 0.15 | 0.20 | 285CFM | 135 | 14.1 |
| HT25284 |
27.5~28.5
|
22.0~23.0 | 0.22 | 0.28,0.28 | 400CFM | 86 | 11.4 |
| HT25305 | 27.5~28.5 | 21.5~22.5 | 0.22 | 0.30,0.30 | 505CFM | 77 | 11.3 |

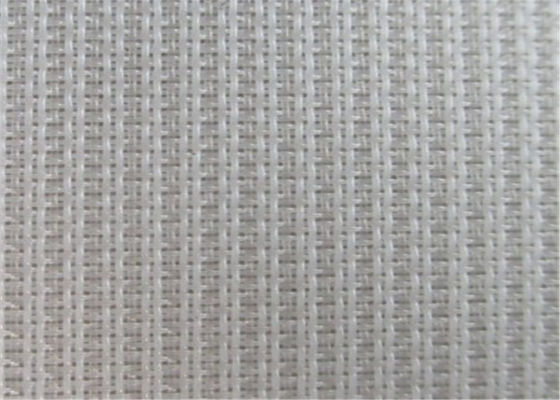

polyester forming fabric Product Pictures:
Feature of polyester forming fabric for paper maling machine:
High density,good permeability
Acid,alkali resistance,heat resistance under 180 degrees
Wear resistance,long work time
Smooth surface,high strength
Install easy to use, interface without imprint
FAQ:
1. Q: How to confirm the type?
A: There are many methods for us to confirm the type:
1). tell us the specifications data.
2).tell us your requirements as more as possible, and our engineers will give you the best suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.
3). send us the photos with size
4). send us a small piece sample.
2. Q: Waht is the payment terms?
A: We prefer T/T, but for some countries, we will also accept L/C.
So pls feel free about the payment.
3. Q: When will delivery the goods?
A: Usally, we will deliver the goods within 15 working days. And if the quantity is big, it will take about 20-30 working days.
4. Q: How long will the fabric be used?
A: The time is different differ the usage and factory. But we can confirm and make sure that our product can be used longer than any other one in China.
5. Q: Is the package strong enough for the long transportation?
A: Of course it is.
By sea, we will pack every piece into wooden/ polywood box.
By air, we will pack it by strong water-proof bag.
Looking for ideal Triple Layer Forming Wire Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Polyester Triple Layer Forming Wire are quality guaranteed. We are China Origin Factory of Paper Making Triple Layer Forming Wire. If you have any question, please feel free to contact us.
Contact Person: Mr. Maple
Tel: +86 15103371897
Fax: 86--311-80690567
