Stable Paper Machine Clothing 3 Layer Forming Fabric High Fiber Support

Large Image : Stable Paper Machine Clothing 3 Layer Forming Fabric High Fiber Support

Product Details:

Place of Origin:	China
Brand Name:	HTL
Certification:	ISO9001:2008
Model Number:	HTL-001

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc or 100kg
Price:	Price accept negotiation
Packaging Details:	50mm x 50mm x *length wooden box package
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T, , D/P, Western Union
Supply Ability:	10000m2 per month

Contact Now

Detailed Product Description

Material:	Polyester	Color:	Blue/green/white
Width:	Max13 Meters	Lifetime:	3-6 Month
Layers:	Single Layer, 2.5 And Triple Layer	Fiber Support:	High
Application:	Paper Making	Packaging:	Standard Export Package
Brand Name:	HTL
Highlight:	paper making felt , polyester forming fabrics

Stable Paper Machine Clothing 3 Layer Forming Fabric High Fiber Support

Forming fabric are designed to retain as much fiber components as possible, meanwhile allowing water to drain through them.

Parts of Specs:

Fabric code

Warp density

Weft density

Warp Dia

(mm)

Weft Dia

(mm)

Permibility

FSI

HT40203

40.5~41.5

29.5~30.5

0.15

0.20

285CFM

135

14.1

HT25284

27.5~28.5

22.0~23.0

0.22

0.28,0.28

400CFM

11.4

HT25305

27.5~28.5

21.5~22.5

0.22

0.30,0.30

505CFM

11.3

Forming fabric can be divided into single, 1.5, double, 2.5, triple (SSB) layer. Which applicable to the machine speed up to 2000m/min.

Forming fabric is characterized by smooth surface without edge curl, good stability and less elongation, unique drainage channel without leaking, good runnability with low load, good fiber support and excellent formation, good life potential.

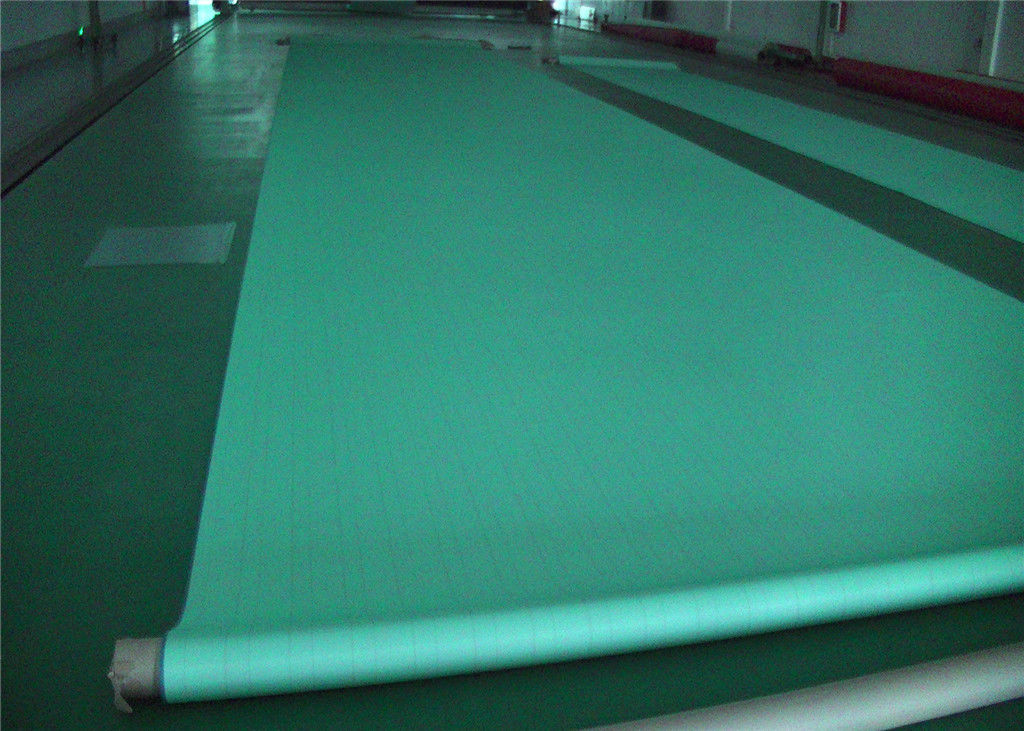

Product Pictures:

Stable Paper Machine Clothing 3 Layer Forming Fabric High Fiber Support
