Product Details:
Payment & Shipping Terms:
|
| Color: | Blue, Red | Model: | RC81 |
|---|---|---|---|
| Working Range: | 1~16% Concentration (according To Measuring Components) | Sensitivity: | Better Than ±0.005% |
| Measurement Accuracy: | Close To Sensitivity Under Stable Conditions | Damping Time: | 1~100s |
| Maximum Working Pressure: | 1MPa, 80°C | Shell Material: | Cast Aluminum |
| Motor: | 3-phase 380VAC, 370W, IP54 | Analog Signal Output: | 4~20mA, Load 0~750 |
| High Light: | cotton belt filter cloth,woven belt filter cloth,batteries plant belt press filter cloth |
||
Blue Color Active Blade Inline Measurement Rotating Consistency Transmitter for The Paper Mill
Rotating Consistency Transmitters can be used for many different variations using different components. It is suitable for all stages of the entire pulping process, from the blow-off line after the digester, to the screening and cleaning stages, even the bleaching workshop, until entering the pulp tank stage before the paper machine, etc.
1. Liquid crystal display, which can realize multi-point, parabolic calibration and easy to operate calibration;
2. Signal damping and filtering are very low, signal to noise ratio is high, and has high precision;
3. Not affected by pulp, fiber type, freeness, Kappa number, flow rate, pressure, etc.;
4. It is little affected by pH and temperature, and the temperature can be compensated;
5. Unaffected by pressure, air bubbles, and electrical conductivity;
6. Fast response, short reaction time and control dead time, and good controllability;

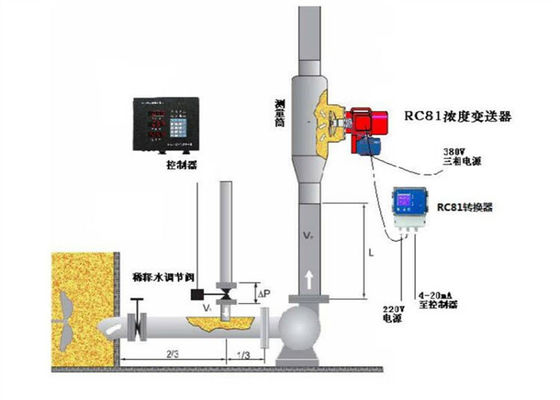

7. It can be installed on horizontal, vertical, or inclined pipes. The sensor shaft should be horizontal and the motor should be under the sensor.
| Product name | Rotating Consistency Transmitter |
| Model | RC81 |
| Shell Material | Cast aluminium |
| Contact medium part material | Stainless steel |
| Working range | 1~16% concentration (according to measuring components) |
| Sensitivity | Better than ±0.005% |
| Damping time | 1~100s |
| Working temperature | 1MPa, 80°C |
| Motor | 3-phase 380VAC, 370W, IP54 |
| Features | 1. Liquid crystal display, which can realize multi-point, parabolic calibration and easy to operate calibration 2. Signal damping and filtering are very low, signal to noise ratio is high, and has high precision 3. Not affected by pulp, fiber type, freeness, Kappa number, flow rate, pressure, etc 4. It is little affected by pH and temperature, and the temperature can be compensated 5. Unaffected by pressure, air bubbles, and electrical conductivity 6. Fast response, short reaction time and control dead time, and good controllability 7. It can be installed on horizontal, vertical, or inclined pipes. The sensor shaft should be horizontal and the motor should be under the sensor |
