Fully Automatic Toilet Paper Machine 3800mm Type High Speed Paper Napkin Machine

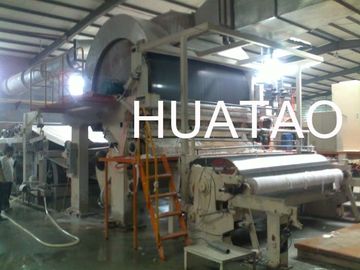

Large Image : Fully Automatic Toilet Paper Machine 3800mm Type High Speed Paper Napkin Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO9001
Model Number:	HT-PJT003

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	20000
Packaging Details:	standard export packing
Delivery Time:	100 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	30 sets per year

Contact Now

Detailed Product Description

Paper Grade::	13-30gsm	Design Speed:	250m.min
Working Speed:	160-230m/min	Capacity:	11-18Ton/day
Gauge:	4800mm
Highlight:	tissue paper production line , toilet paper equipment

Fully Automatic Toilet Paper Machine 3800mm Type High Speed Paper Napkin Machine

Key Specifications

Paper grade	13-30gsm
Design speed	250m/min
Working speed	160-230m/min
Capacity	11-18Ton/day
Gauge	4800mm

Product Overview

The 3800mm Type High-speed Tissue Paper Machine is designed for efficient production of toilet paper and napkin base paper with pulp weights of 13-30 g/㎡.

Application

Primarily used for manufacturing toilet paper and paper napkin base paper from wood pulp plate or waste paper raw materials.

Craft Parameters

Pulp: Wood pulp plate, waste paper
Feeding pulp concentration: 0.3-0.9‰
Beating degrees: 30-38°SR
Paper sheet dryness: 18-20% from wire case, 36-40% before MG cylinder, 90-94% finish tissue
Lateral shrinkage: 8-10%
Day running hours: 22 hours/day
Papermaking rate: 94%
Yield: 95%
Touch roll line pressure: 60 KN/m

Supporting Parameters

AC voltage: 380V; 50Hz
Control voltage: 220/24V
Water pressure: 0.3Mpa (Working: 0.2Mpa)
Compressed air pressure: 0.8Mpa (Working: 0.5Mpa)
Steam pressure: 0.6Mpa (Working: 0.3Mpa)
Vacuum suction tank: 20-40Kpa
Water requirement: Pure color, remove impurities, PH value 6.8

Technical Specifications

Paper weight: 18-30g/m²
Net width of paper: 3500mm
Designed speed: 250m/min
Working speed: 160-230m/min
Nominal capacity: 10-15T/D
Track gauge: 4500mm
Wrinkling rate: 15-30%
Drive way: Y-type AC motor drive division, section drive
Control way: Frequency conversion
Power: MG cylinder motor: 95kw, Roll-cylinder motor: 7.5kw (Total: 102.5Kw)
Arrangement: Single-layer, left and right hand arrangement

Machine Model Comparison

Item / PM type	1575	1880	2400	2900	3500	3800
Design Speed (m/min)	250	250	250	250	250	250
Working Speed (m/min)	160-230	160-230	160-230	160-230	160-230	160-230
GSM Range (g/m²)	13-30	13-30	13-30	13-30	13-30	13-30
Capacity	4-6	5-8	7-10	8-12	10-15	11-18
Diameter of Dryer (mm)	Φ2500-3000	Φ2500-3000	Φ2500-3000	Φ2500-3000	Φ2500-3000	Φ2500-3000
Motor (kw)	37-45	45-55	55-75	75-90	90-110	90-110
Gauge(mm)	2400	2800	3400	3900	4500	4800
