Oxygen Stainless Steel Hydraulic Headbox Dilution In Paper Machine

Oxygen Stainless Steel Hydraulic Headbox Dilution In Paper Machine
Oxygen Stainless Steel Hydraulic Headbox Dilution In Paper Machine Oxygen Stainless Steel Hydraulic Headbox Dilution In Paper Machine

Large Image :  Oxygen Stainless Steel Hydraulic Headbox Dilution In Paper Machine

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: Hydraulic Headbox
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000USD/set
Packaging Details: Standard export packing
Delivery Time: 120 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: Hydraulic Headbox Stainless Steel Oxygen Head Box Hydraulic Dilution Headbox Material: Stainless Steel
All Type: Air Cushion Headbox, Hydraulic Headbox, Open Headbox, Crescent Headbox Application: Paper Production
High Light:

paper machine dilution hydraulic headbox

,

stainless steel hydraulic headbox

Hydraulic Headbox Stainless Steel Oxygen Head Box Hydraulic Dilution Headbox



Hydraulic Headbox Stainless Steel Oxygen Head Box Hydraulic Dilution Headbox Introduction:
The hydraulic headbox (hydraulic full-flow air-cushion combined headbox) is suitable for paper machines with a speed of 350-1500m/min and a speed of 1760-5500. The tube bundle enters the pulp stabilization chamber, and there is an attenuation chamber above the pulp stabilization chamber. It has an air cushion and spray device to eliminate air bubbles and reduce pressure pulses, and has an overflow outlet. The isobaric slurry flows from the stabilization chamber through the turbulence generator. Arrive at the upper weir plate of the convergence channel



Main Feature of Hydraulic Headbox Stainless Steel Oxygen Head Box Hydraulic Dilution Headbox
1. Dedicated dilution water profile quantitative adjustment device can obtain better quantitative profile distribution;
2. High turbulence generator and special flap design can achieve better paper evenness;
3. Different designs are suitable for different vehicle speeds and paper types;
4. The addition of controllable edge flow to obtain good fiber orientation;
5. The upper lip plate adjustment mechanism of the structure can quickly and accurately adjust the quantification of the width;
6. The quick box opening design is convenient for maintenance and cleaning.



The headbox is the key to the paper machine, the function is to supply uniform and steady pulp flow to the paper machine wire part. With different pulp, different machine speeds, and different flows the design of the headbox is different. So when choosing the headbox, please pay more attention.



Our company design and produce headbox according to the information of our customer's paper making machine, calculate and design with the help of a computer, Thus, our headbox can meet customers' requirements and obtain the best-using effect, with the good formation of the paper web, small cross basic weight difference.





Hydraulic Headbox Stainless Steel Oxygen Head Box Hydraulic Dilution Headbox Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technicians.



Hydraulic Headbox Stainless Steel Oxygen Head Box Hydraulic Dilution Headbox After-sales Service
Highly inspecting equipment in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients with foundation construction of equipment;
Dispatching engineers to install and debug the equipment;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchange;



Hydraulic Headbox Stainless Steel Oxygen Head Box Hydraulic Dilution Headbox Simple Specification

Product Name Hydraulic Headbox Stainless Steel Oxygen Head Box Hydraulic Dilution Headbox
Trimmed Width (mm) 3200 3600 3800
Width of Jet (mm) 3350 3800 4050
Work Speed (m/min) 200-300 200-300 200-300
Diameter of holy roll (mm) 220
Cloth Paste Way Square taper pipe into the slurry, cloth pulp by the organic glass holey plate
Outline size (m) 2.6*4.4*1.6 2.6*4.4*1.6 2.6*5*1.6
Arrangement Left-hand or right-hand machine

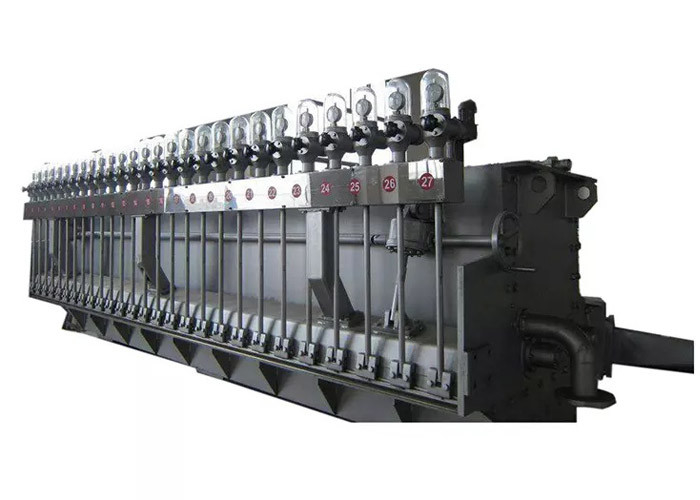

Oxygen Stainless Steel Hydraulic Headbox Dilution In Paper Machine 0

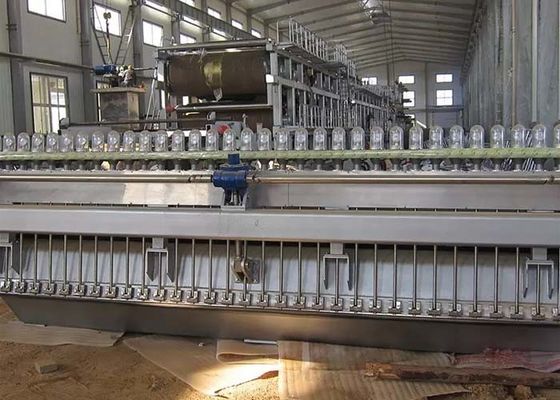

Oxygen Stainless Steel Hydraulic Headbox Dilution In Paper Machine 1





FAQ



Q1: What is the payment term?
A: TT or LC, anyway is available.



Q2: How long is your delivery time?
A: Generally it is 15 days if the normal size. If it is customized or big size, it may need 25 days.



Q3: What is the mode of goods transportation?
A: If clients don't need the products urgently, we normally use road transportation, rail transportation, and maritime transportation
according to the client's cost budget. If clients need the products urgently, we normally choose express or air transportation for the
fast delivery.



Q4: Do you provide samples? is it free or extra?
A: Yes, we could offer a small piece(A4 size) sample for free charge but do not afford the cost of freight.



Q5: How to confirm the type?
A: There are two methods for us to confirm the type:

1). You can tell us the specifications data.
2). Provide us with your sample.



Our engineer will do the test according to your data or samples, then recommend the suitable type to you.
