4mm Thickness Stainless Steel 304 Material Pulp Screen Plate For Fibre Separator

China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

I'm Online Chat Now

4mm Thickness Stainless Steel 304 Material Pulp Screen Plate For Fibre Separator

4mm Thickness Stainless Steel 304 Material Pulp Screen Plate For Fibre Separator
4mm Thickness Stainless Steel 304 Material Pulp Screen Plate For Fibre Separator 4mm Thickness Stainless Steel 304 Material Pulp Screen Plate For Fibre Separator 4mm Thickness Stainless Steel 304 Material Pulp Screen Plate For Fibre Separator 4mm Thickness Stainless Steel 304 Material Pulp Screen Plate For Fibre Separator

Large Image :  4mm Thickness Stainless Steel 304 Material Pulp Screen Plate For Fibre Separator

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO
Model Number: HTSX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: By negotiation
Packaging Details: Poly wooden box or wooden box
Delivery Time: 15-25 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
Condition: New Or Second Hand Thickness: 4-12mm
Warranty: One Year Material: Stainless Steel 304, 316, 316L
Min. Slit Width: 0.15mm Min. Aperture: 1.2mm
High Light:

industrial screening equipment

,

pressure screen

4mm thickness stainless steel 304 material pulp screen plate for fibre separator



Product description

The pulp screen plate aperture is 2.5-6φmm (according to the customer need). Newsprint and magazine paper are usually used in the range of 2.5-4mm. Corrugated paper and cardboard are used in a 3.5-6mm range. Pulper Impurity separator sieve Disc plate assembly, replace Disc Plate of pulper easily.



Specification

Material Stainless steel 304, 316, 316L
Thickness 4-12mm
Min. Slit Width 0.15mm
Min. Aperture 1.2mm
Warranty One year
Condition New or second hand



Features

1.Good abrasion resistance and long service life
2. The cost is lower than metal screen mesh
3. Good moisture and abrasion resistance
4. Shock absorption and noise reduction
5. Automatic cleaning effect is good, no hole blocking, high screening efficiency



Application

This screen plate used for screening paper pulp, always used in pulping equipment,like hydropulper,pulper machine,etc

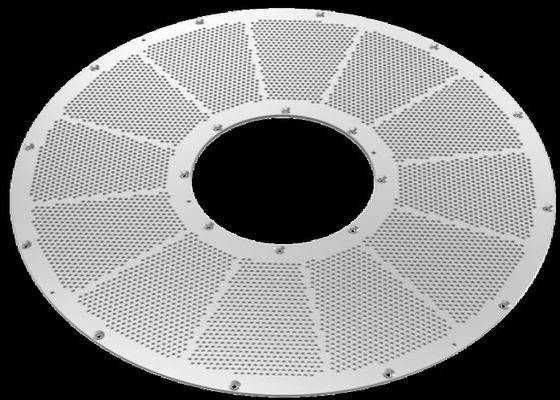

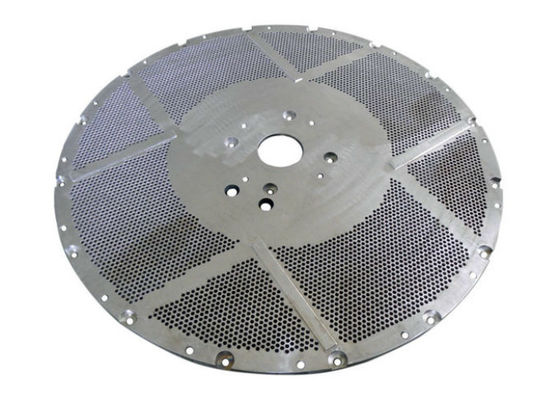

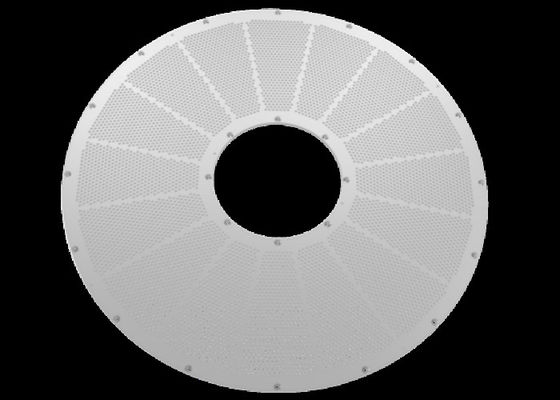

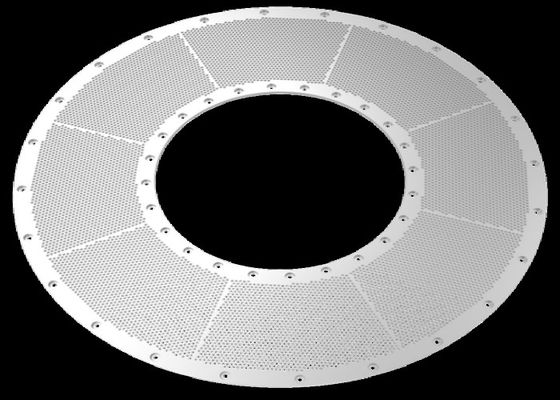

Product Photo

4mm Thickness Stainless Steel 304 Material Pulp Screen Plate For Fibre Separator 0
