Product Details:
Payment & Shipping Terms:
|
| Type: | Pulping Equipment | Dimension(L*W*H): | Depend On The Type |
|---|---|---|---|
| Voltage: | 220V | Computerized: | No |
| Function: | Breaking And Filtrating Waste Paper | Processing Capacity(t/d): | 220-1200 |
| Application: | Paper Industry | Raw Material: | OCC |
| Certification: | ISO9001:2008 | ||
| High Light: | pulp chest agitator,pulp and paper machinery |
||

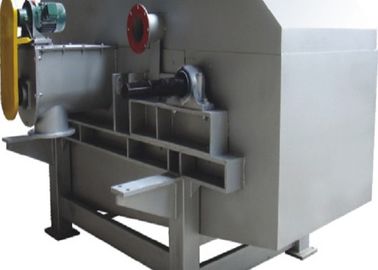

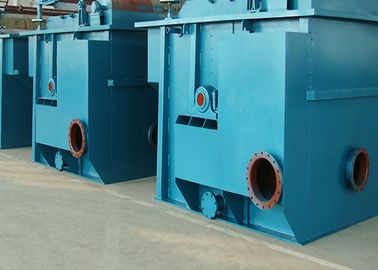

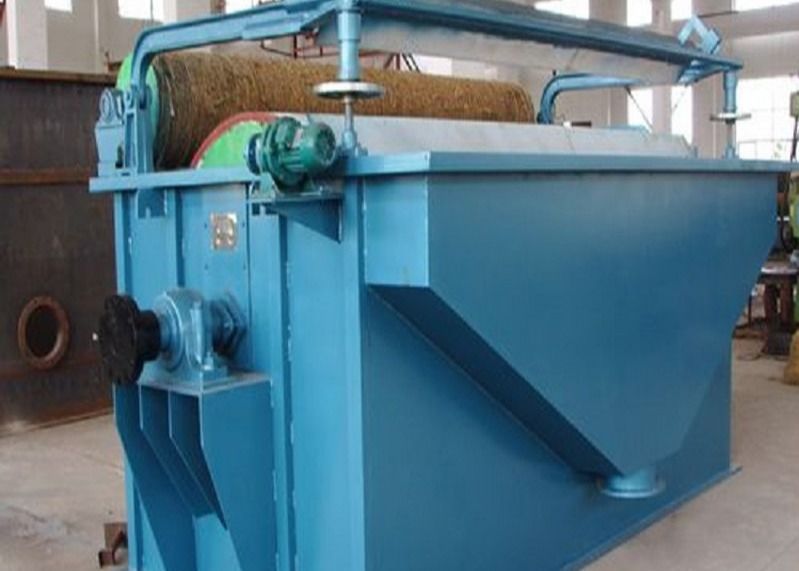

Paper Pulp Dewatering And Washing Gravity Cylinder Thickener
Application:
Used for washing and thickening low consistency pulp.
Features:
Except for having the same characteristics as the gravity cylinder
thickener, this machine has yet such characteristics as high rigidity of web cylinder and large equipping cap.
Main Technical Parameters
| Type | HT-4025 | HT-4525 | HT-5030 | HT-5530 | HT-6030 | |
| Filtrating area: m2 | 40 | 45 | 50 | 55 | 60 | |
| Consistency of inflow pulp: % | 0.5-1 | |||||
| Consistency of outflow pulp: % | 4-6 | |||||
| Capacity of product: | Rich-wheat-straw pulp: t/d | 40-60 | 45-67 | 50-75 | 55-82 | 60-90 |
| Mixed waste paper: t/d | 60-80 | 67-90 | 75-100 | 82-110 | 90-120 | |
| Reed pulp: t/d | 80-100 | 90-112 | 100-125 | 110-137 | 120-150 | |
| Chemical wood pulp: t/d | 120-140 | 135-157 | 150-175 | 165-192 | 180-210 | |
| Power of motor: kw | 15 | 18.5 | 22 | |||
Processing Type: Pulp equipment
Voltage: 380V
Power(W): 22KW
Dimension(L*W*H): 1230
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Online support
Production Capacity: 100%
Name: Gravity Cylinder Thickener
Length: Customization
Features: High Efficiency
Power of motor: 4-20kw
Raw material: Iron
Application: Paper Industry
Consistency of inflow pulp: 0.8-1.2%
Consistency of outflow pulp: 4-6%
Application:
Used for washing and thickening low consistency pulp.
Features:
Structure is simple and operation is safe and reliable. Discharge consistency and white water consistency is easy to be controlled.
Bulk degree of pulp layer forming in this equipment is high and fine impurities has stronger penetrability. So, this equipment is more adaptable to using washing method to remove such fine impurities as ink particles and ash etc.
Application:
It is suited to the washing and dewatering of low consistency stock in paper making and pulping process. It works like a filter by gravity.
Features:
Structure is simple and operation is safe and reliable. Discharge consistency and white water consistency is easy to be controlled.
Bulk degree of pulp layer forming in this equipment is high and fine impurities has stronger penetrability. So, this equipment is more adaptable to using washing method to remove such fine impurities as ink particles and ash etc.
Application:
It is suited to the washing and dewatering of low consistency stock in paper making and pulping process. It works like a filter by gravity.
Features
Structure is simple and operation is safe and reliable. Discharge consistency and white water consistency is easy to be controlled.
Bulk degree of pulp layer forming in this equipment is high and fine impurities has stronger penetrability. So, this equipment is more adaptable to using washing method to remove such fine impurities as ink particles and ash etc..
Packaging:
products will packaged according to their shapes, weight, transport distance and transport modes.
Large machines will be packaged in sections.every part export machinery will be in standard export
package seaworthy wooden case waterproof film, straw rope, carton box etc
