Product Details:
Payment & Shipping Terms:
|
| Type: | Pulping Equipment | Dimension(L*W*H): | Depend On The Type |
|---|---|---|---|
| Voltage: | 220V | Computerized: | No |
| Function: | Breaking And Filtrating Waste Paper | Processing Capacity(t/d): | 220-1200 |
| Application: | Paper Industry | Raw Material: | OCC |
| Certification: | ISO9001:2008 | ||
| High Light: | pulp chest agitator,pulp and paper machinery |
||

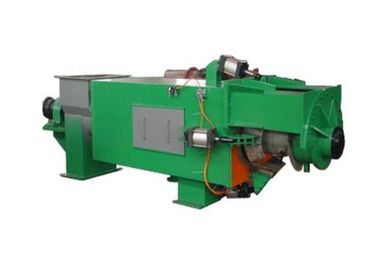

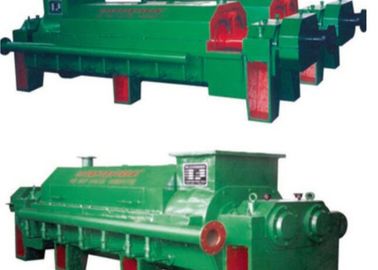

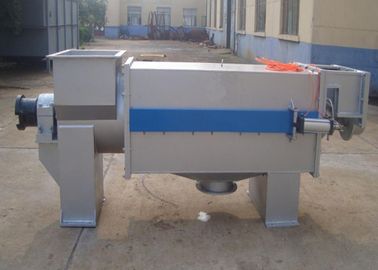

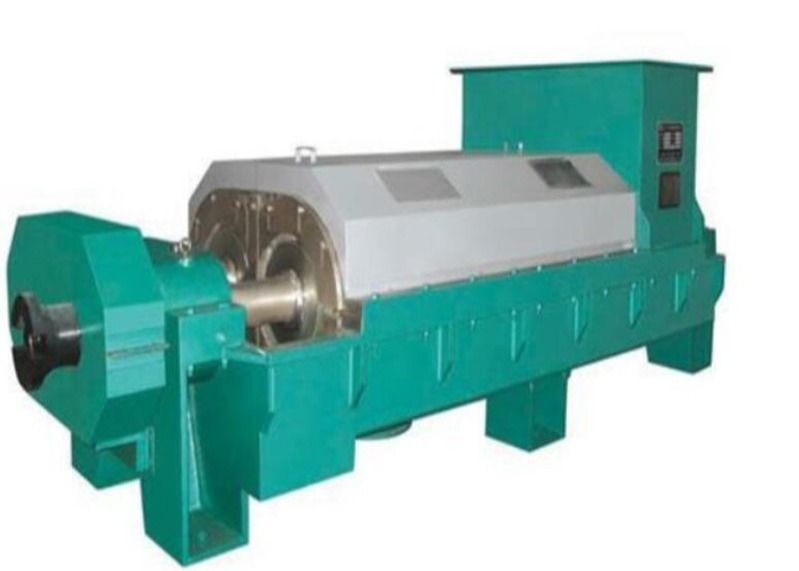

Screw Press Thickener Used For Thickening The Paper And Pulp Machine
Application:
Used for thickening the pulp.
Features:
For screw shaft, the compression ratio is axially distributed reasonably.Thereby, efficiently ensure normal running of equipment.
On discharge side, fitted with inner dewatering assembly with holes, which can efficiently secure uniformity of dewatering of inside and outside pulp layer. If necessary, use back-flushing device to wash the inner dewatering assembly to make sure of smoothness of inner dewatering channel.
Pneumatic back-push assembly can secure the stability and adjusting state of discharge consistency.
Main Technical Parameters:
| Type | HT-12 | HT-13 | HT-14 | HT-15 | HT-16 | HT-17 | HT-18 | ||
| Diamater of screw: mm | Φ400 | Φ450 | Φ600 | Φ700 | Φ800 | Φ900 | Φ1100 | ||
| Consistency of inflow pulp: % | 10-14 | 8-12 | |||||||
| Consistency of outflow pulp: % | 25-35 | ||||||||
| Capacity of product : t/d | 40-50 | 60-80 | 100-150 | 150-200 | 200-300 | 280-350 | 350-450 | ||
| Power of main motor: kw | 30 | 37 | 55 | 110 | 132 | 200 | 280 | ||
