Payment & Shipping Terms:
|Shipment Packing:||Wooden Box||Condition:||New|
|Material:||Stainless Steel||Manufacturing Process:||Casting|
paper mill machine parts,
paper machine components
Paper Tester Paper Making Machine Parts ,Tester For Paper Mill ,Paper Industry Tester , Craft Paper Tester
Paper tear tester is a proprietary instrument for measuring the tear strength of paper. Its main technical indicators and performance parameters are suitable for measuring the tearing degree of various types of paper, and can also be used for measuring the tearing degree of lower strength cardboard.
Measuring range: (10 ~ 1000) mN, of which standard pendulum (10 ~ 1000) mN, graduation value 10 mN, light pendulum (10 ~ 500) mN, graduation value 5 mN, lightest pendulum (10 ~ 200)
mN, minute The degree of 2mN instrument is equipped with a standard pendulum. (Light pendulum, lightest pendulum according to user's special order) Indication error: within the range of 20% ~ 80% of the upper limit of measurement, ± 1%, outside the range 0.5% FS
Indication repeatability error: <1% within the range of 20% to 80% of the upper limit of the measurement, <0.5% FS outside the range.
Tear arm: 104 soil 1mm
Initial tear angle: 27.5 + 0.5 °
Tear distance: 43 soil 0.5mm
Paper surface size: 25 x 15mm
Distance between paper clips: 2.8 soil 0.3mm
1. The appearance of this instrument is novel and compact, and the advanced circuit design effectively guarantees the accuracy and stability of the measurement data.
2. Large-screen high-pixel LCD display module, Chinese display and prompt operation steps, display measurement and statistical results, friendly human-machine interface makes the instrument operation simple and convenient.
3. This instrument adds a printer and uses an imported thermal printer core, without using inks and ribbons, no noise during work,
Features such as fast printing speed.
4. This instrument is equipped with a standard RS232 interface, which can cooperate with computer software for communication.
5. The instrument is protected from power failure, and the calibration data will not be lost after power failure.
6. Can store 10 reference samples (real samples or data).
Cardboard Bursting Tester
It uses a single-chip microcomputer as its core measurement and control method, thereby achieving Detection, control and data processing are all digitized and computerized. The instrument has simple operation, reliable performance and advanced technology. It is a scientific research unit, paper manufacturer, and packaging. Ideal equipment for industry and quality inspection department.

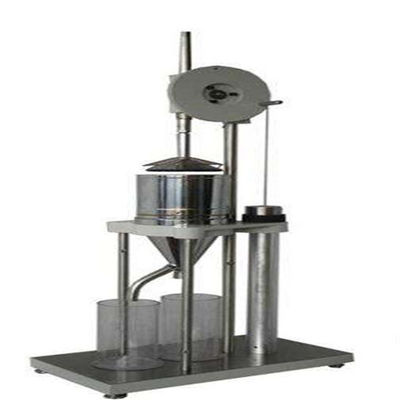

Beating Degree Tester
Pulp pulping degree tester is a special instrument for measuring the water filtration performance of pulp. This instrument is based on the phenomenon that the degree of pulp dissolution is inversely proportional to the filtration speed of pulp suspension. The water filtration performance of the slurry suspension was measured, the fiber condition was studied, and the degree of pulp beating was evaluated.
Main performance characteristics
The instrument is a Shawbel-type beating degree tester, which uses a manual compaction of the sealed cone, which is suitable for detecting the capacity of filtering water of the diluted pulp suspension, that is, the determination of the beating degree.
Paperboard Thickness Tester is a special instrument for measuring the thickness of paper and paperboard. Its main technical indicators and performance parameters comply with the relevant provisions of GB451.3 "Measurement Method for Paper and Paperboard Thickness." And other sheet materials.
Applying Japanese advanced sensors and adopting high frequency principle, it can accurately measure the moisture of cardboard, paper, corrugated boxes and so on. It can be measured on a paper reel or on a paper stack.
Wide measurement range: suitable for all types of paper products.
Lightweight and smart: about 200 grams in weight, about 1 60mm long, compact and easy to carry, suitable for field use.
Non-destructive testing: Abolish the needle, just touch the probe lightly to the surface of the paper, it can display the moisture content of the paper, and it will not damage the paper.
Intuitive and convenient: The measurement is fast and directly displayed in digital.
Simple and fast: set the type correction to ensure the instrument
The moisture content of each type of paper is accurately measured.
The Valley beater is one of the most commonly used beating equipment in the laboratory.
Composed of a mountain-shaped part, a flying knife roll, a bed knife bed, a pressurizing mechanism, etc.
Under use, changes such as cutting, crushing, swelling, and fibrillation occur, so that the pulp can meet the requirements of papermaking.
Materials in contact with water are stainless steel, resistant to rust and corrosion;
Equipped with double self-locking protection device to avoid accidents;
Equipped with back flushing device, easy to clean;
Rotary arm lever is used to raise and lower the bottom knife to reduce operator workload;
Equipped with an automatic beating time control system, which can precisely control the beating time
