Product Details:
Payment & Shipping Terms:
|
| Port: | Shanghai, China | Manufacturing Process: | Cnc Milling |
|---|---|---|---|
| Material: | Stainless Steel | Condition: | New |
| High Light: | pulp paper mill,pulp pump |
||

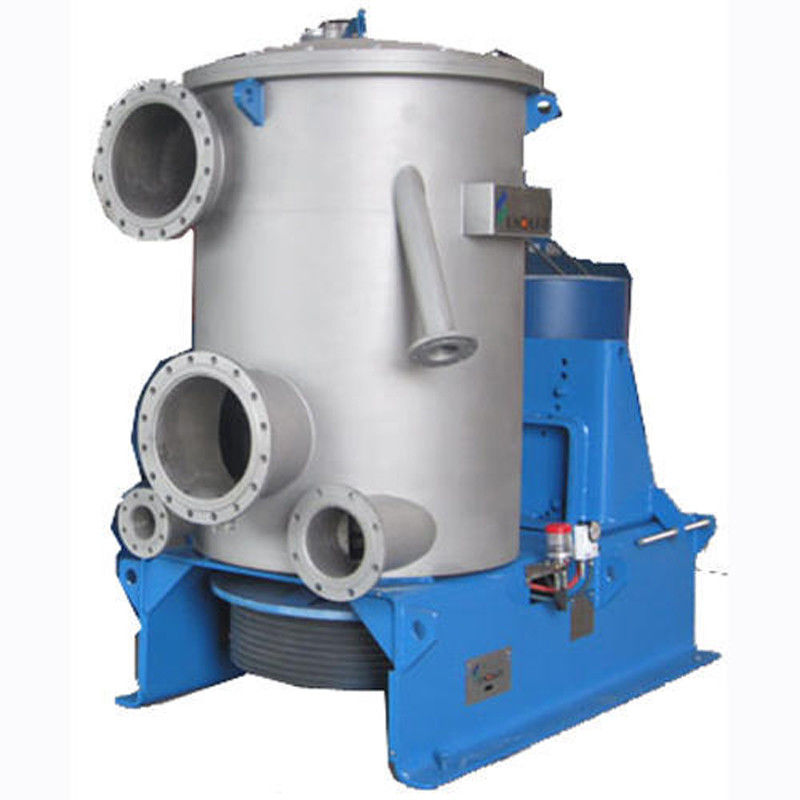

Up-flow pressure screen Pulping Equipment Stainless Steel Pulping Equipment Upflow Fine Screen
Application:
Used for fine screening of waste paper stock.
Features:
This Pressure Screen change the drop flow screening mode of traitional pressure screen, pulp inflow from bottom, heavy impurities are blocked at the bottom and discharged out periodically, reduce the wear of screen cylinder and rotor, extend the service life of screen cylinder and rotor; In the process of pulp rising, fine light impurities is very easy to rise to the top and discharged out through tail pulp entrance, pulp through the strong cleaning of long rotor slice, screen quality and capacity can improve greatly.Compared with traditional Down-Flow Screen, impurities percentage of good pulp reduce to about 30%. The top of this equipment have no rises device, be convenient for customers to check and overhaul the screen cylinder and rotor.
Main Technical Parameters:
| Type | HT-100 | HT-200 | HT-300 | HT-400 | HT-500 | HT-600 | HT-700 | HT-800 | ||
| Screen area: m2 | 0.6 | 0.8 | 1.2 | 2 | 3.2 | 4.2 | 4.7 | 5.7 | ||
| Hole Dia.: mm | 0.15-0.35 | |||||||||
| Slot width: mm | 0.12-0.25 | |||||||||
| Screen consisency:% | 0.8-2.0 | |||||||||
| Flow rate: t/d | 35-60 | 50-80 | 80-130 | 130-220 | 200-350 | 270-500 | 310-550 | 360-650 | ||
| Power of motor: kw | 30 | 37 | 45 | 90 | 132 | 160 | 200 | 250 | ||
