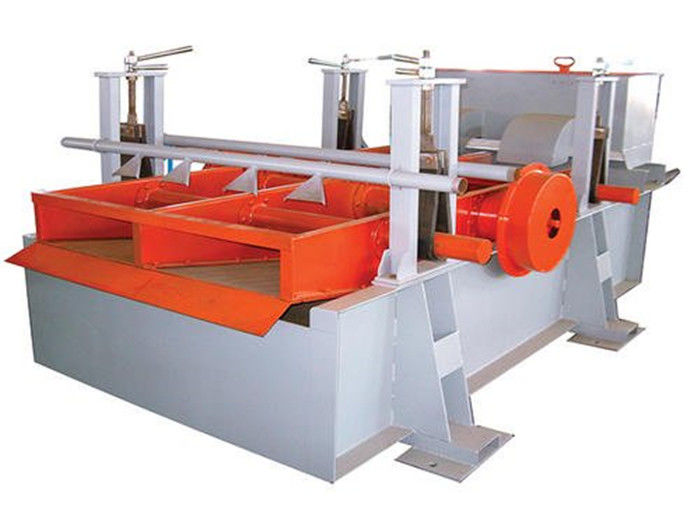

Vibrating Screen Pulping Equipment Stainless Steel Pulping Equipment
Application
Used for removal of various impurities in pulp suspension.
Features:
Shock-relieving assembly is made from special rubber, therefore, screen basket is stable during operation, with low noise.
For different areas, hole diameter arrangement of screen plate is different, which is beneficial to removing impurities and reducing fiber loss,
Air-seal chamber with special design can make self-washing ability of screen plate strong.
| Type | HT-4 | HT-5 | HT-6 | HT-7 | ||
| Screen area: m2 | 1 | 2 | 3 | 4 | ||
|
Consistency of inflow pulp
|
Hole screen: % | 1.2-1.5 | ||||
| Slot screen: % | 0.5-0.8 | |||||
| Capacity of product: t/d |
Treating tail
|
Hole screen: t/d | 4.5-15 | 9-30 | 13.5-45 | 18-60 |
| Slot screen: t/d | 2.-45 | 4-9 | 6-13.5 | 8-18 | ||
| Main flow | Hole screen: t/d | 7.5-25 | 15-50 | 22.5-75 | 30-100 | |
| Slot screen: t/d | 3.5-7.5 | 7-15 | 10.5-22.5 | 14-30 | ||
| Power of motor: kw | 2.2 | 3 | 4 | 5.5 | ||
