| Net Width Of Paper: | 3900mm | Esigned Speed: | 3.230m/min |
|---|---|---|---|
| Working Speed: | 4.150-200m/min | Nominal Capacity: | 5.10T/D |
| Paper Weight: | 18-30g/m2 | Output Paper: | Toilet Paper, Tissue Paper, Paper Napkin |
| High Light: | Pulp Molding Machine,pulp molding equipment |
||
Low-Speed Tissue Paper Machine 150-200 Speed Toilet Paper Machine
1. Toilet Paper Machine Application:
Our Low-Speed Toilet Paper Machine150-200 Speed Tissue Paper Production Line is mainly for the production of manufacture paper with pulp 18 - 30 g / ㎡, toilet paper. Paper napkin base paper.
2. Toilet Paper Machine Crafts Parameters:
| Pulp | wood pulp plate, waste paper, etc as raw material |
| Feeding pulp concentration | 0.3-0.9‰ |
| Beating degrees | 30-38°SR |
| Come out from wire case | 18-20％ |
| Before going through MG cylinder | 36-40％ |
| Come out from MG cylinder | 90-94％ |
| Finish tissue | 90-94％ |
| Lateral shrinkage | 8-10％ |
| Day running hours | 22 hours/d |
| Papermaking rate | 94％ |
| Yield | 95％ |
| Touch roll line pressure | 60 KN/m |
3. Toilet Paper Machine Crafts Supporting parameter
4. Toilet Paper Machine Technical Parameters:
Roll-cylinder motor: 7.5kw
Total:102.5Kw
5. Toilet Paper Machine Flow Chart
Waste paper, Chain conveyor, Hydrapulper, High-density cleaner, Reject separator, Pulp pump, Fiber separator machine, Pressure screen, Vibrating screen low-density cleaner, Toilet paper machine, paper

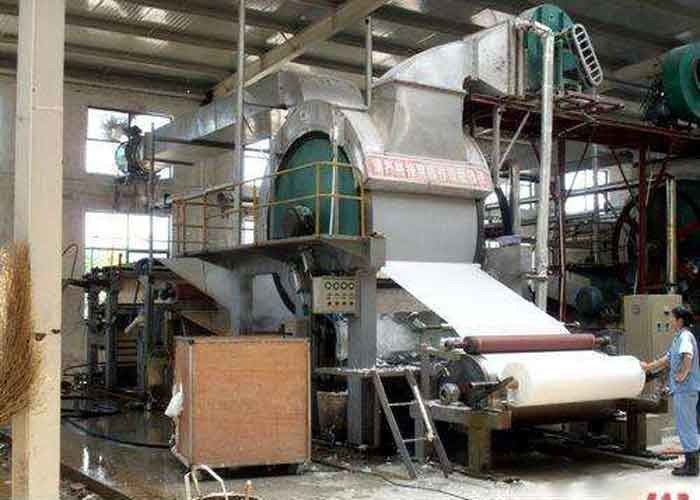

6. Toilet Paper Machine Photos:
We Supply all the solution for paper making machine line, welcome back to us with your demands, No harsh requirements, only imperfect solutions, look forward to your consultation.
