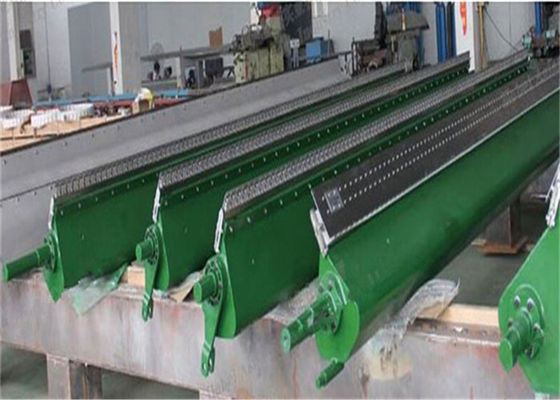

Doctor Blade Holder For Paper Machine

Doctor Blade Holder For Paper Machine
Doctor Blade Holder For Paper Machine Doctor Blade Holder For Paper Machine Doctor Blade Holder For Paper Machine Doctor Blade Holder For Paper Machine

Large Image :  Doctor Blade Holder For Paper Machine

Product Details:
Place of Origin: CHINA
Certification: ISO
Model Number: HT-Holder
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 200 usd per meter
Packaging Details: wooden box
Delivery Time: 25-30 days
Supply Ability: 100 set per month
Detailed Product Description
Brand Name: Huatao Surface Treatment: Polishing
Manufacturing Process: Casting Material: Stainless Steel
Condition: New Usage: For Doctor Blade
Feature: Blade To Better Fit The Large Cylinder Type: Paper Machine Part
Application: Paper Industry Color: Customer's Request
High Light:

Doctor & Roll Cleaning Blade Holders


Papermaking Doctor Blade Components

Doctor Blade Holder For Paper Machine



Doctor Blade Holder For Paper Machine Description

Doctor Blade Holder For Paper Machine technology is very important in industrial processing applications. Reasonable doctor blade technology far exceeds the choice of doctor blade. Scraper fixtures are also very important. The clamp must be able to reasonably position the scraper blade so that it closely adheres to the roller. To a certain extent, it can accept and accommodate the irregularity of the roller surface. It can be adjusted according to different thermal expansion degrees to facilitate frequent blade replacement. Kadant's solutions provide a full range of doctor fixtures for most roller positioning and applications


Doctor Blade Holder For Paper Machine data sheet


Air-bag Type
The air-bag control form can give full play to the flexibility of gas bag. The balanced contact with the roller surface prevents it from damaging the roller surface. The lineal pressure can be automatically adjusted by regulating the pressure of source gas. The available blade is in flexible thickness, and is easy to manage and replace. The roller will not be damaged when blade is replaced, thus achieving high working efficiency.
It is a kind of common blade holder in the paper-making industry. It is pressurized by self weight, and is operated with a handle. No source gas is needed. An air cylinder may be equipped to regulate and control the lineal pressure and the opening and closing of blade. The contact pressure between the holder and the roller surface can be adjusted by fine tuning the screw.
Yankee Blade Holder for Cylinder Drying The oil-pressure pipe within the holder can prevent the holder from deforming. It can be well attached to the blade, thus offering a good stability. Besides, it uses a low lineal pressure, and produces a high cleaning efficiency. The use of air-bag blade holder enables the roller to fully contact with the blade, thus offering a favorable flexibility. No fine tuning is required. In addition, the blade is of good rigidity, and corrugates stably. It is able to provide 1,500~3,500N/m lineal pressure required by corrugation


Doctor Blade Holder For Paper Machine Usage


We can make your paper-making equipment more efficient, paper more stable. Reasons to choose the material:


1.According to different use parts or different rolls materials, you can choose different material of doctor blades, with lower friction coefficient.
2.Long life: Choose high-quality EP synthetic resin material, carbon fiber, polymer materials and advanced production technology worldwide, 50% longer than other domestic material.
3.Low thermal expansion coefficient, long time sintering laminated, excellent uniformity and the internal stree-relieved.
4.Excellent gliding property can greatly protect equipments operating.



Doctor Blade Holder For Paper Machine 0



The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too higher,we will use pe film for packing or pack it according to customers special request.


Different products will adopt different packaging methods to ensure that products can reach customers' ports safely. We can provide sea, land, air and other modes of transport, respectively from Shanghai, Tianjin, Qingdao port shipment.

Doctor Blade Holder For Paper Machine 1



1:Do you have OEM service?
A: yes, the specifications and models of the products can be customized according to your needs.
2: Are you a trading company or a manufacturer?
A: we are a company integrating industry and trade.
3: How long is your delivery time?
A: generally speaking, it takes 15-20 days after receiving the advance payment. The exact delivery time depends on the item and quantity of your order.
4: Where is your factory? May I see the work?
A: Yihong road, shijiazhuang city, hebei province
