Frequency Conversion 200m / Min Toilet Roll Making Machine

Large Image : Frequency Conversion 200m / Min Toilet Roll Making Machine

Product Details:

Place of Origin:	China
Brand Name:	HUATAO
Certification:	SGS,ISO
Model Number:	HT-ZJ004

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Wooden Box
Delivery Time:	5 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now

Detailed Product Description

Payment Term:	L/C,T/T	Working Speed:	140-400m/min
Designed Speed:	100-450m/min	Net Width Of Paper:	1880-4600mm
Paper Weight:	13-40g/m2	Paper Grade:	Toilet Paper / Tissue Paper
Delivery Time:	Within 15 Days
Highlight:	Pulp Molding Machine , pulp molding equipment

Frequency Conversion 200m / Min Toilet Roll Making Machine

Product Specifications

Attribute	Value
Payment Term	L/C,T/T
Working speed	140-400m/min
Designed speed	100-450m/min
Net width of paper	1880-4600mm
Paper weight	13-40g/m2
Paper Grade	Toilet paper / Tissue paper
Delivery Time	Within 15 Days

Product Description

200m/Min Cylinder Machine Toilet Paper Machine

Application

Our Huatao Toilet Paper Machine can use waste paper (such as waste books, newspaper, used office paper, waste paper edge from printing factory), virgin pulp as material to make high-quality toilet paper. The finished product can be small tissue roll, napkin tissue, facial tissue, kitchen towel.

Supporting Parameters

Control voltage: 220/24V
Water pressure: 0.3Mpa
AC voltage: 380V；50Hz
Working pressure: 0.2Mpa
Compressed air pressure: 0.8Mpa
Working pressure: 0.5Mpa
Steam pressure: 0.6Mpa
Working pressure: 0.3Mpa
Vacuum suction tank: 20-40Kpa
Water requirement: pure color, remove impurities, PH value 6.8

Crafts Parameters

Feeding pulp concentration: 0.3-0.9‰
Beating degrees: 30-38°SR
Paper sheet dryness
Pulp: wood pulp plate, waste paper, etc as raw materials come out from wire case: 18-20％
Before going through MG cylinder: 36-40％
Come out from MG cylinder: 90-94％
Finish tissue: 90-94％
Lateral shrinkage: 8-10％
Day running hours: 22 hours/d
Papermaking rate: 94％
Yield: 95％
Touch roll line pressure: 60 KN/m

Main Technical Parameters

Track gauge: 4600mm
Wrinkling rate: 15-30℅
Driveway: Y-type AC motor drive division, section drive
Control way: frequency conversion
Power: MG cylinder motor: 95kw, Roll-cylinder motor: 7.5kw, Total: 102.5Kw
Arrangement: single-layer, the left, and right-hand arrangement
Paperweight: 18-30g/m2
Net width of paper: 3900mm
Designed speed: 230m/min
Working speed: 150-200m/min
Nominal capacity: 10T/D

Item / PM type	1575	1880	2400	2900	3500	3900
Design Speed (m/min)	250	250	250	250	250	250
Working Speed (m/min)	160-230	160-230	160-230	160-230	160-230	160-230
GSM Range (g/m2)	13-30	13-30	13-30	13-30	13-30	13-30
Capacity	4-6	5-8	7-10	8-12	10-15	11-18
The diameter of Dryer (mm)	Φ2500-3000	Φ2500-3000	Φ2500-3000	Φ2500-3000	Φ2500-3000	Φ2500-3000
Motor (kw)	37-45	45-55	55-75	75-90	90-110	90-110
Gauge(mm)	2400	2800	3400	3900	4500	4800

Machine Specifications

Output paper: toilet paper, tissue paper, paper napkin
Raw material: waste paper, virgin pulp
Capacity: 5-50 ton per day
Net paper width: 1575-3600mm
Output paper weight: 13-40g/m2

Production Flow Chart

Ⅰ. Waste paper
Ⅱ. Chain conveyor
Ⅲ. Hydrapulper
Ⅳ. High-density cleaner
Ⅴ. Reject separator
Ⅵ. Pulp pump
Ⅶ. Fiber separator machine
Ⅷ. Pressure screen
Ⅸ. Vibrating screen low density cleaner
Ⅹ. Toilet paper machine

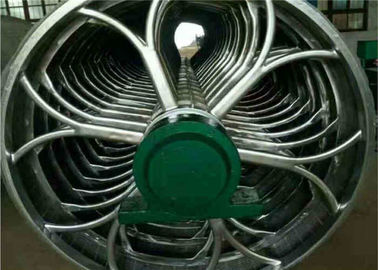

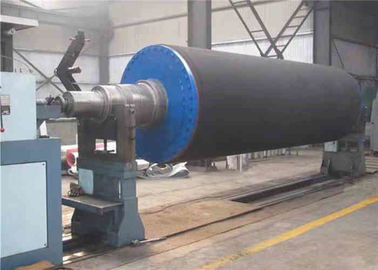

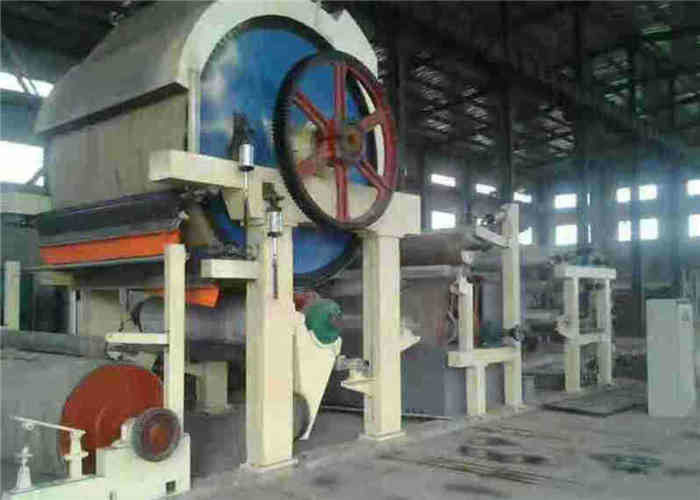

Product Photos
