450m / Min Automatic Toilet Paper Making Machine

High Speed Tissue Paper Making Line Toilet Paper Making Machine

1. Toilet Paper Making Machine Crafts Parameters:

• Feeding pulp concentration : 0.3-0.9‰
• Pulp: wood pulp plate, waste paper, etc as raw material
• Beating degrees: 30-38°SR
• Paper sheet dryness comes out from wire case: 18-20％

• Before going through MG cylinder: 36-40％

• Come out from MG cylinder: 90-94％

• Finish tissue: 90-94％

• Lateral shrinkage: 8-10％
• Day running hours: 22 hours/d
• Papermaking rate: 94％
• Yield: 95％
• Touch roll line pressure: 60 KN/m

2. Toilet Paper Making Machine Supporting parameter

• Control voltage: 220/24V
• AC voltage: 380V；50Hz
• Water pressure: 0.3Mpa;
• Working pressure: 0.2Mpa
• Compressed air pressure: 0.8Mpa;
• Working pressure: 0.5Mpa
• Steam pressure: 0.6Mpa;
• Working pressure:0.3Mpa
• Vacuum suction tank: 20-40Kpa
• Water requirement: pure color, remove impurities, PH value 6.8

3. Toilet Paper Making Machine Main Technical Parameters:

• Net width of paper:3900mm
• Paperweight: 18-30g/m2
• Designed speed: 230m/min
• Working speed: 150-200m/min
• Nominal capacity: 10T/D
• Track gauge: 4600mm
• Wrinkling rate: 15-30℅
• Driveway: Y-type AC motor drive division, section drive
• Control way: frequency conversion
• Power:MG cylinder motor: 95kw, Roll-cylinder motor: 7.5kw, Total:102.5Kw
• Arrangement: single-layer, the left, and right-hand arrangement

4. Toilet Paper Making Machine Application:

Mainly for the production of manufacture paper with pulp 18 - 30 g / ㎡, toilet paper. Paper napkin base paper

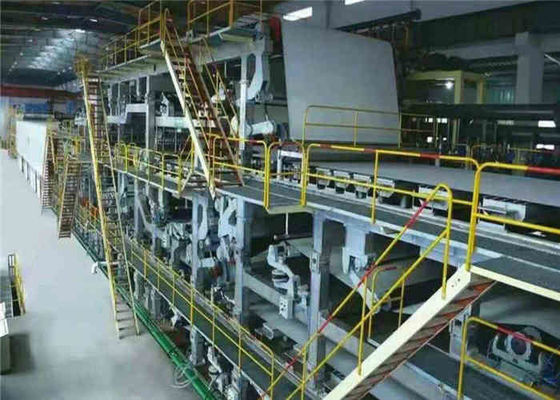

5. Toilet Paper Making Machine Photos:

FAQ

Q: What is the delivery time?
A: It is according to your quantity, normally 7 to 10 days;

Q: What are the advantages of compared to other suppliers?
A: The unique full automatic roller production line, high machining accuracy, uniform and stable quality, which can realize
continuous and efficient professional production, so we can provide good quality products and services to our customers.

Q: Can we visit your company?
A: No problem, we are looking forward to your arrival and we will lead you to visit our factory.

Q: What's your trade term?
A: EXW, FOB, CIF, CFR, etc can be available

Q: Can I ask for samples for test purposes?
A: Yes, it is welcomed. And according to our company policy, the sample fee & shipping cost need to be paid by your end, but we
can refund the sample fee upon receipt of your trial order.

Q: Can I OEM my screens?
A: Yes, OEM material, size, color, package, etc can be acceptable.

Q: Can I order 1 piece?
A: Yes, as our MOQ is 1 piece.
