2.5 Layer Monofilament Polyester Forming Paper Machine Fabric

China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

I'm Online Chat Now

2.5 Layer Monofilament Polyester Forming Paper Machine Fabric

2.5 Layer Monofilament Polyester Forming Paper Machine Fabric
2.5 Layer Monofilament Polyester Forming Paper Machine Fabric
video play

Large Image :  2.5 Layer Monofilament Polyester Forming Paper Machine Fabric

Product Details:
Place of Origin: China
Brand Name: Huatao
Model Number: HT-57
Payment & Shipping Terms:
Minimum Order Quantity: 10 square meter
Price: Price accept negotiation
Packaging Details: pp bags/wooden box
Delivery Time: 3-4 weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1200 suqare meter per week
Detailed Product Description
Usage: Forming Section Material: Polyester
WARP DENSITY: 69.5~70.5 WEFT DENSITY: 79.5~80.5
WARP DIAMETER: 0.13, 0.20 WEFT DIAMETER: 0.13 0.13, 0.27 0.27
High Light:

2.5 Layer paper machine fabric

,

Monofilament paper machine fabric

,

2.5 Layer polyester forming fabric

2.5 Layer Polyester Forming Fabric Paper Machine Clothing





As dehydration and forming mesh belt,polyester forming fabric are mainly used in paper industry.According to the weaving method, polyester forming fabrics can be divided into single /double /2.5/triple layers.



Product Name
Polyester forming fabrics- two and a half layers
Material
100% Polyester monofilaments
Color
white, light green, light blue
Grade
Excellent
Application
Mainly used in paper mills, such as wirting paper, kraft paper, white board, coated paper, corrugated paper and liner paper, etc.
Advantage
stable size, smooth surface, acid-resisting, alkali-resisting, heat resistance, good filteration, good air permeability, long service life , high efficiency, etc.



Forming fabric feature:



1. High temperature resistance, not easy to corrosion, high stability, not easy to deformation under high temperature.
2. Different sizes: different sizes for different users, it is easy to suit all kinds of uses.
3. Strict quality control system: strict ICQ test and production process without wire breakage phenomenon.

4.Net curtain surface is clean and smooth, product forming perfect, pulp easy to peel off.

Technical parameters of 2.5 layer forming Fabric



FABRIC CODE WARP DENSITY WEFT DENSITY WARP DIAMETER WEFT DIAMETER AIR PERMEABILITY FSI DI
HT6408 71.5~72.5 67.5~68.5 0.15 0.18 0.12, 0.22 0.22 275~500CFM 119~155 25~37
HT5608 62.5~63.5 51.0~52.0 0.17 0.18 0.13, 0.25 0.25 380CFM 121 26.9
HT5616-1 62.5~63.5 60.5~61.5 0.17 0.20 0.13, 0.30 0.30 285CFM 139 23.9
HT5616-2 62.5~63.5 60.5~61.5 0.17 0.20 0.13, 0.30 0.30 350CFM 126 26
HT4216 47.0~48.0 47.0~48.0 0.22 0.22 0.13, 0.35 0.35 380CFM 107 24.8

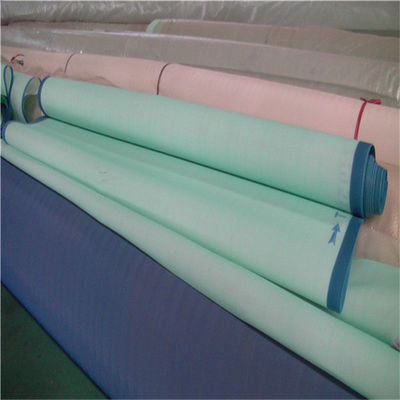

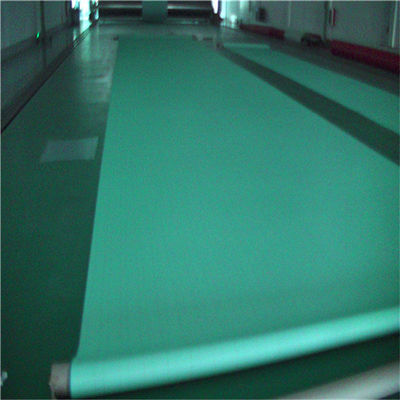

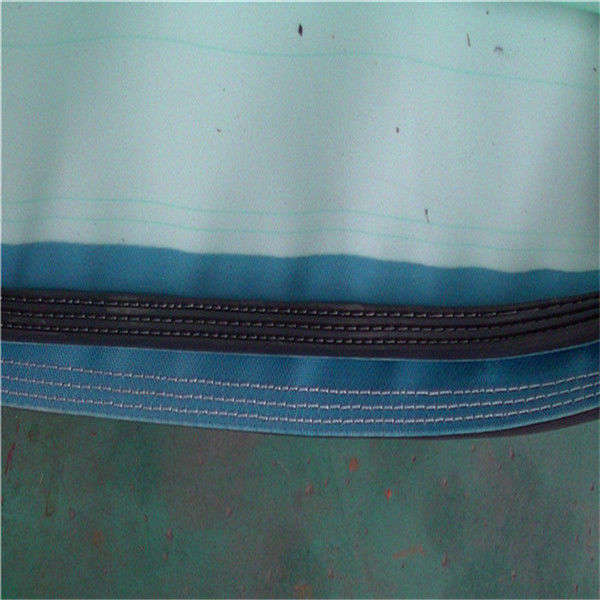

Forming Fabric Picture:

2.5 Layer Monofilament Polyester Forming Paper Machine Fabric 02.5 Layer Monofilament Polyester Forming Paper Machine Fabric 1

FAQ:

1. Q: How to confirm the type?
A: There are many methods for us to confirm the type:
1). tell us the specifications data.
2). tell us your requirements as more as possible, and our engineers will give you the best suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.
3). send us the photos with size
4). send us a small piece sample.
2. Q: What is the payment terms?
A: We prefer T/T, but for some countries, we will also accept L/C.
3. Q: When will delivery the goods?
A: Usually, we will deliver the goods within 15 working days. And if the quantity is big, it will take about 20-30 working days.
4. Q: How long will the fabric be used?
A: The time is different differ the usage and factory. But we can confirm and make sure that our product can be used longer than any other one in China.
5. Q: Is the package strong enough for the long transportation?
A: Of course it is.
By sea, we will pack every piece into wooden box.
By air, we will pack it by strong water-proof bag.





Looking for ideal Forming Wire Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Forming Wire are quality guaranteed. We are China Origin Factory of Paper Making Forming Wire. If you have any question, please feel free to contact us.
