Rubber Cover Stainless Steel Od 500mm 284F Spreader Roll

Rubber Cover Stainless Steel Od 500mm 284F Spreader Roll
Rubber Cover Stainless Steel Od 500mm 284F Spreader Roll Rubber Cover Stainless Steel Od 500mm 284F Spreader Roll Rubber Cover Stainless Steel Od 500mm 284F Spreader Roll Rubber Cover Stainless Steel Od 500mm 284F Spreader Roll

Large Image :  Rubber Cover Stainless Steel Od 500mm 284F Spreader Roll

Product Details:
Place of Origin: CHINA
Brand Name: HT
Certification: SGS 、ISO
Model Number: PM016
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD Negotiation
Packaging Details: WOODEN BOX
Delivery Time: 30Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1-2 PCS/Month
Detailed Product Description
Outside Diameter: Up To 500mm(up To 20 In) Maximum Body Length: 12000 Mm(472 In)
Material: Stainless Steel With Rubber Cover Maximum Temperature: 140℃(284F)
Rubber Thickness: Up To 480 Mm(up To 19 In) Warranty Time: 1 Year
High Light:

od 500mm spreader roll

,

rubber cover ss spreader roll

,

284F spreader roll

Rubber Cover Stainless Steel Spreader Roll



Rubber Cover Stainless Steel Spreader Roll Introduction



spreader rolls are suitable for all spreading applications in pulp and paper processes. Spreader rolls can be used for removing wrinkles from sheet and fabric, to correct tension profiles, and in slitters-winders to prevent interweaving of slit sheets.

rubber covered spreader roll is used in many machine sections and is especially appropriate for high moisture applications. We offer a wide range of rubber sleeves which can provide good wear and temperature resistance. Also fluoropolymer shrink sleeves can be used to provide excellent release and anti-static properties. The rubber sleeve can also be grooved to provide higher spreading efficiency



Rubber Cover Stainless Steel Spreader Roll Features



1,High wear resistance

2,Improved CD tension profile of the sheet, fabrics or felts

3,Improved end product quality

4, Reliable wrinkle-free operation

5,Improved production efficiency

6,Huatao OEM process support and maintenance services



Rubber Cover Stainless Steel Spreader Roll Data Sheet



Diameter Max 2500mm
Face width 12000 mm(472 in)
Maximum speed 2600 mpm(8500 fpm)
Material Stainless Steel with rubber cover
Maximum temperature 140℃(284F)
Rubber thickness up to 480 mm(up to 19 in)

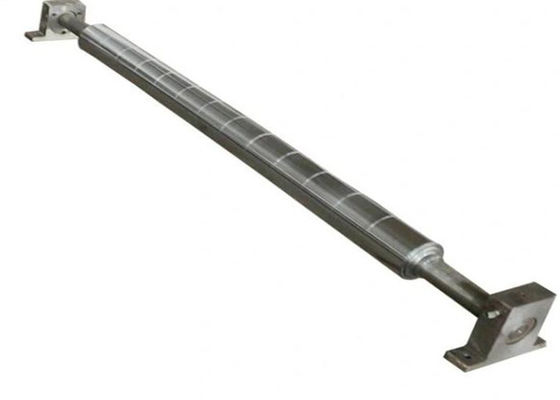

Rubber Cover Stainless Steel Spreader Roll  Picture





Rubber Cover Stainless Steel Od 500mm 284F Spreader Roll 0

Rubber Cover Stainless Steel Od 500mm 284F Spreader Roll 1
