76mm Paper Mill Epoxy Resin Doctor Blades For Paper Industry

76mm Paper Mill Epoxy Resin Doctor Blades For Paper Industry
76mm Paper Mill Epoxy Resin Doctor Blades For Paper Industry 76mm Paper Mill Epoxy Resin Doctor Blades For Paper Industry

Large Image :  76mm Paper Mill Epoxy Resin Doctor Blades For Paper Industry

Product Details:
Place of Origin: China
Brand Name: Huatao
Certification: CE,ISO
Model Number: HT-EPO001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard Package
Delivery Time: 15 works day
Payment Terms: D/P, L/C, T/T, Western Union
Supply Ability: One container per month
Detailed Product Description
Material: Epoxy-glass Structure: As Drawing
Width: 76mm Single: 45 Degree Or As Your Demands
Usage: Cleaning For Roller, Dryer Cylinder Service Life: 3 Months - 9 Months
High Light:

76mm Doctor Blades For Paper Industry

,

Paper Mill doctor blades

,

Epoxy Resin doctor blades

76mm Paper Mill Epoxy Resin Doctor Blade





1. 76mm Paper Mill Epoxy Resin Doctor Blade Introduction



Paper Mill Epoxy Resin Doctor Blade is made of high-strength glass fiber, reinforced resin adhesive, and advanced wear-resistant lubricating materials. The operating temperature shall be equal to or lower than 180℃. As the commonest composite blade, it is applicable to a variety of working parts, such as drying cylinder, stone roller, reeling section, cleaning cylinder, and so on. It is more evenly worn and offers better performance.



2. Epoxy-glass Doctor Blade Specification



1.The most commonly used fiberglass blade in a wide range of applications, Allows the evolustion from metal blades to synthetic in many applications. Outstanding performance on some types for presses and on dryer cylinders.
2.Temperature Resistance:Up to 185 ºC
3.Thickness:5mm, 1.9mm, 3.0mm, 5.0mm
4.Width: 76mm
5.Bending strength:Up to 600 N/mm



3. Epoxy-glass Doctor Blade Application:



Epo-glass fiber blade is officially called epoxy resin Soaked glass fiber. The main application that suits for all rolls from the wire section to the paper-reel section. It can effectively prevent damage to hard rubber roll and avoid a fire in the drying section.

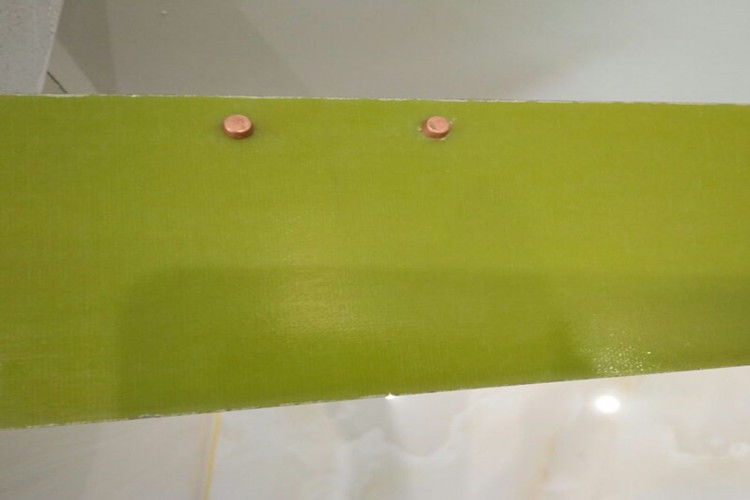

76mm Paper Mill Epoxy Resin Doctor Blades For Paper Industry 0

Tips:


1. Chilled cast iron rollers cannot use stainless steel blades
2. Chrome-plated rollers cannot use bronze blades
3. Steel rollers cannot use steel sheets
4. Metal blades cannot be used for synthetic rubber rollers
5. Before increasing the pressure of the doctor blade, a new doctor blade must be used.
