Product Details:
Payment & Shipping Terms:
|
| Products Type: | Toilet Tissue | Processing Type: | Paper Slitting And Rewinding Machine |
|---|---|---|---|
| Warranty: | 1 Year | Production Capacity: | 180 M/min |
| Core Components: | PLC, Motor, Pump | Product Name: | Toilet Paper Roll Rewinder Machine |
| Function: | Embossing Folding Counting Cutting | Control: | PLC Touch Screen System |
| High Light: | rewinding toilet paper machine,paper slitter rewinder machine,slitter toilet paper machine |
||

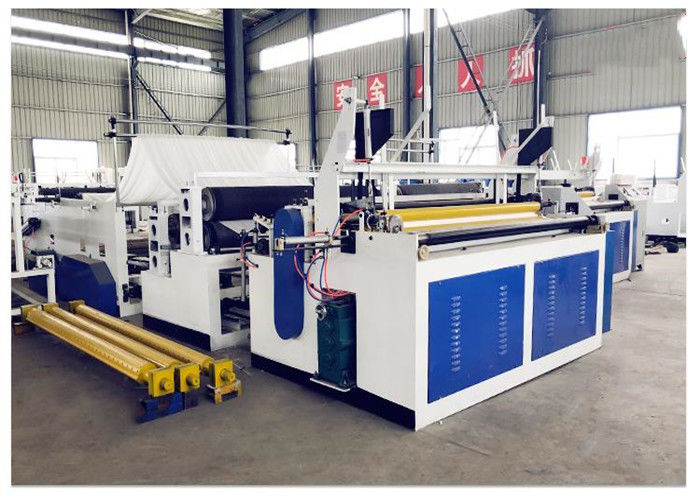

1.Automatic Small Toilet Paper Tissue Rewinding Machine Description:
Toilet Paper Rewinding Machine adopts international new PLC computer programming technology (system can be upgraded), frequency control, automatic electronic brake. The touch-type human-machine interface operating system uses a coreless rewind forming system. application the PLC program wind column forming technology achieves the characteristics of faster rewinding and more beautiful molding.
2.Automatic Small Toilet Paper Tissue Rewinding Machine Parameter:
| Machine Model | 1092/1575/1880/2100/2400 |
| Paper Width(mm) | 1092mm/1575mm/1880mm/2100mm/2400mm |
| Paper Diameter(mm) | φ1200mm(Please Specify) |
| Paper Core Inner Diameter | φ76mm(Please Specify) |
| Product Diameter | φ40mm-200mm |
| Paper Backing | 1-4layer,general chain feed or continuously variable transmission feed paper |
| Punch | 2-4 Knife,Spiral Cutter Line |
| Hole Pitch | Positioning of Belt and Chain Wheel |
| Control System | PLC Control,Variable Frequency Speed Control,Touch Screen Operation |
| Product Range | Core Paper,Non Core Roll Paper |
| Drop Tube | Manual,Automatic(Optional) |
| Non core roll paper | automtic core pulling |
| Production Speed | 150-280m/min |
| Spray,Cutting and Rewinding | Automtic |
| Finished product launch | Automtic |
| Point Moving Mode | Before and After the Point Moving |
| Power Configuration | 380V50HZ |
| Required air pressure | 0.5Mps(The Self) |

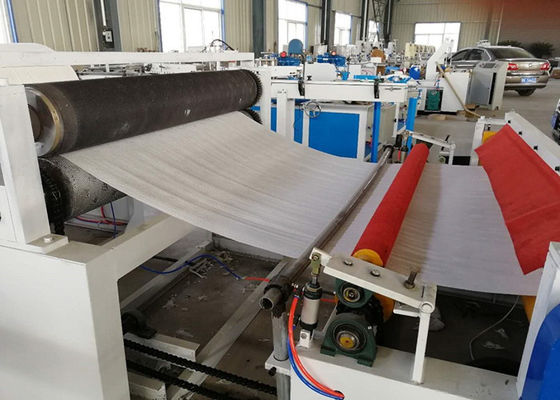

| Embossing | Single Embossing,Double Embossing(Steel Roller to Wool Roller,Steel Roller)Optional |
| Blank Holder | Airbag Control,Cylinder Control,Steel to Steel Structure |
| Outline Dimension | 6200mm-7500mm*2600mm-3200mm*1750mm |
| Machine Weight | 2900KG-3800KG |
3.Automatic Small Toilet Paper Tissue Rewinding Machine Working Principle:
Four-roller automatic feeding→synchronous conveying→embossing→punching→automatic winding→cutting→packing→sealing.
1. Rewinding---The main purpose of the toilet paper rewinding machine is to process the large shaft paper into a long strip of toilet paper roll.
2. Cut the paper---The long piece of toilet paper cut by the paper cutter is cut into semi-finished products of the length required by the customer.
3. Packaging---Packaging can be packaged in a packaging machine or manually wrapped, and the semi-finished products of the toilet paper are packaged and sealed by a sealing machine.
4.Our Service :
Pre-sales
1.Online all day, to ensure that all your questions are answered within two hours;
2.Give you professional advice and recommend the machine that suits you;
3.Arrange the time and invite you to visit our factory;
On-sales
1. one stop service
We have a very reliable freight forwarding company, and the delivery period is controllable;and have a professional engineer team for your instalation and worker traning.
2. customized service
All machines can be customized, like color, embossing, jumbo roll core diameter.
After-sales
One year warranty, we provide free machine parts within one year.
