SS304 Paper Making Machine Parts Cylinder Mould

SS304 Paper Making Machine Parts Cylinder Mould
SS304 Paper Making Machine Parts Cylinder Mould SS304 Paper Making Machine Parts Cylinder Mould SS304 Paper Making Machine Parts Cylinder Mould

Large Image :  SS304 Paper Making Machine Parts Cylinder Mould

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: CE,ISO,ICE
Model Number: CM-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: reconsideration
Packaging Details: Wooden box
Delivery Time: 30-40days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 Set/30days
Detailed Product Description
Material: SS304 Or 316 Shipment Terms: Open Container
Cylinder Mould Normal Working Face Range:: 1000mm - 5000mm Cylinder Mould Normal Specification Diameter:: 1000mm, 1250mm, 1500mm, 1800mm, 2000mm, 2500mm
Quality Guarantee: 1 Year
High Light:

papermaking machine cylinder mould


papermaking cylinder mould


SS304 cylinder mould

Stainless Steel 304 Paper Making Cylinder Mould

Cylinder Mould Normal Specification diameter: 1000mm, 1250mm, 1500mm, 1800mm, 2000mm, 2500mm
Cylinder Mould Normal working face range: 1000mm - 5000mm

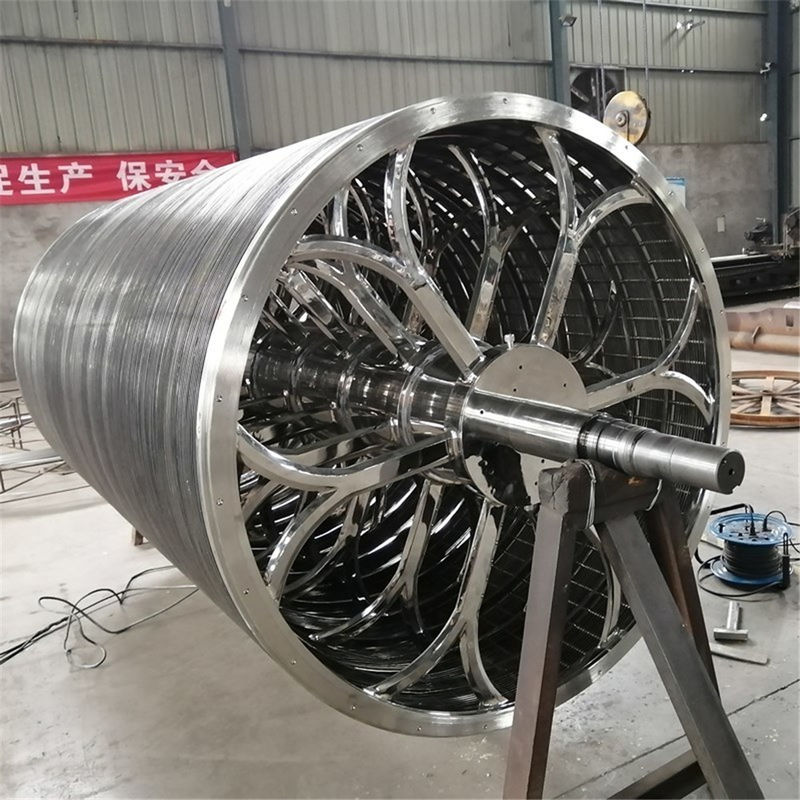

304 SS Cylinder Mould for paper making machine, including spindles, grids, spokes and spacers, with spokes equally spaced on the main shaft, with wire racks mounted on the spokes, stainless steel spokes mounted at equal intervals between the spokes on the main shaft, replacing part of the spokes The stainless steel support ring is embedded at the outer end of the support bar, and the grid is installed along the outer edge of the support steel ring and the spoke, and is tightly wound with stainless steel wire. The paper machine Cylinder Mould is light in weight, corrosion-resistant and reduces energy consumption. Reduce equipment maintenance cycle.

SS304 Paper Making Machine Parts Cylinder Mould 0

SS Cylinder Mould
Structure Material Width Diameter Function
Common Common 1000 ~ 8000 1000 1 Increase filtering area and speed, increase of production.
Piece-type Winding type Stainless Steel 1250 2 Improve finish paper quality including evenness, gram weight and aspect tension ratio.
String chip type
Air exhaust Copper 1500 3 Reduce wear and repair cost of SS wire and felt etc.
Vacuum 2000 4 Strengthen integrity and antiseptic property of the equipment to keep it durable.
2500 5 High precision,beating the trail of less than 0.10 mm.
3000 6 Accept customized size

Advantage of 304 SS Cylinder Mould :
1: High speed: Balance detection, more than 700 meters
2: Weight is reduced by 30% compared to ordinary cages, reducing energy consumption
3: Each piece of spoke has been accurately measured to avoid the overweight phenomenon of the cage and reduce the friction force of the cage on the blanket and the net reduce manufacturing cost
4: All spokes are U-shaped design to reduce water resistance, the surface is very smooth; the speed can be increased by 15-30 meters compared to common cast iron cages without causing water drop phenomenon
5: The strength is higher than that of the common cage for several times, impact resistance, and the maintenance rate of the cage is reduced
6: High surface roughness, increase the area of filtered water, increase production, improve paper quality
7: Acid and alkali resistant, standard 304 stainless steel8: Very strong integrity, durable.

SS304 Paper Making Machine Parts Cylinder Mould 1


1. Q: How to confirm the type?
A: There are many methods for us to confirm the type:

1). tell us the specifications data.
2).tell us your requirements as more as possible, and our engineers will give you the best suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.

2. Q: What is the payment terms?
A: We prefer T/T, but for some countries, we will also accept L/C. So pls feel free about the payment.

3. Q: When will delivery the goods?
A: Usually, we will deliver the goods within 15 working days. And if the quantity is big, it will take about 20-30 working days.

4. Q: How long will the fabric be used?
A: The time is different differ the usage and factory. But we can confirm and make sure that our product can be used longer than any other one in China.

5. Q: Is the package strong enough for the long transportation?
A: Of course it is.
By sea, we will pack every piece into wooden/ polywood box.
By air, we will pack it by strong water-proof bag.
