Iso Passed Stock Preparation 600l/Min Low Consistency Pulp Cleaner

600L/Min Paper Pulping Equipment Parts Slag Separator Low Consistency Cleaner Pulp Cleaner

Description

The low consistency cleaner is applicable to the purification of various fiber suspensions with concentration of 0.4~1.2%, which can effectively remove light sundries, hot melts, heavy impurities, pulp and slag in the pulp, and effectively remove foam, cork chips, ink particles, and has a good effect on the pulp purification of the pulp flow system before the paper machine. Effective coarse residue screening of waste pulp, simplify process operation, save power consumption.

Specifications

1. Capacity                                                           650Lpm
2. Inlet consistency                                               0.3-1.2%
3. Inlet pressure                                                   0.2-0.3mpa
4. Rated inlet and outlet pressure drop               0.15Mpa
5. Min accept pulp pressure                                0.03Mpa
6. Flow rate                                                      400-1000L/min
7. Thickness                                                           8mm
8. Top material                                                      SS304
9. Bottom material                                               Ceramics

Features

Application

Used for removing specifically heavy contaminants from the pulp suspension in stock preparation and approach flow systems. Reject dilution and continuous reject discharge in all stages provides for low-pulsation and blockage-free operation. Isostatic pressing lower ceramic cone greatly increase the service life of the cleaner.

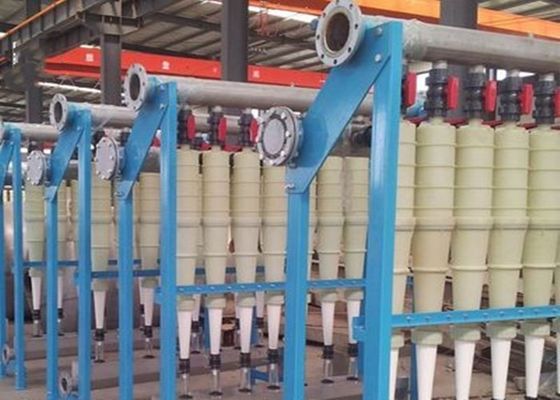

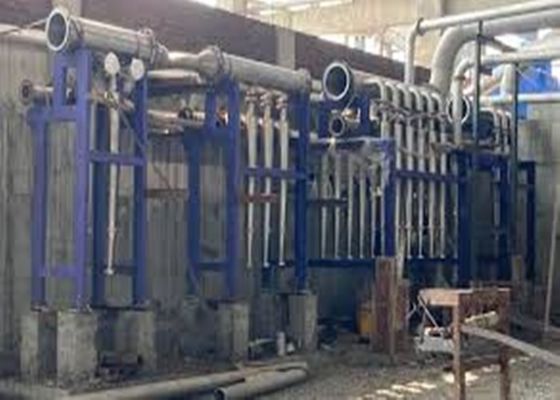

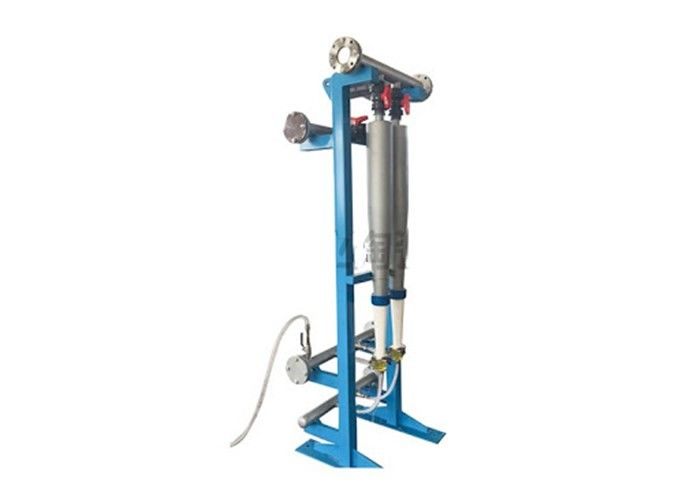

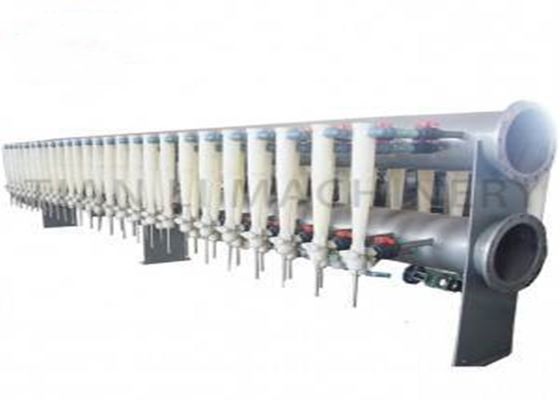

Product Photo
