2500m/Min Paper Making Machine Parts Cast Iron Hubs Felt Roller

China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

I'm Online Chat Now

2500m/Min Paper Making Machine Parts Cast Iron Hubs Felt Roller

2500m/Min Paper Making Machine Parts Cast Iron Hubs Felt Roller
2500m/Min Paper Making Machine Parts Cast Iron Hubs Felt Roller 2500m/Min Paper Making Machine Parts Cast Iron Hubs Felt Roller 2500m/Min Paper Making Machine Parts Cast Iron Hubs Felt Roller 2500m/Min Paper Making Machine Parts Cast Iron Hubs Felt Roller

Large Image :  2500m/Min Paper Making Machine Parts Cast Iron Hubs Felt Roller

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO CE
Model Number: HT-047
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard export package
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 1set /month
Detailed Product Description
Diameter: 100 - 1000 Mm Face Length: 12000 Mm
Working Speed: Max Up To 2500 M/min Shell: Seamless Steel Pipe Or Plate Bended
Hubs: Cast Iron Journals: Cast Steel Or Alloy Steel
Housings: Cast Iron Bearing Balancing: Rotor Rigid Or Flexible Rotor
High Light:

2500m/min paper making machine parts

,

felt roller paper making machine parts

2500 M/Min Cast Iron Hubs Felt Roller





2500 M/Min Cast Iron Hubs Felt Roller Introduce



The guide roller guides and drives the wire mesh and felt in the wet end and drying section of the paper machine. The guide rollers in the two areas use the same bearings. However, different lubrication and sealing are used depending on the application location. In old-fashioned paper machines, the wet end section is usually lubricated with grease, and the dry section is lubricated with oil. In modern paper machines, both sections are lubricated by oil circulation. Due to different working conditions, the wet end and the dry section need to use their own oil circulation lubrication.



2500 M/Min Cast Iron Hubs Felt Roller Feature



guide roll is most used for paper machines, mainly in the wite section, dryer section, and press section. its main function is to pass wite cloth, and blankets. the surface covering of guide rolls is rubber, chroming, and the smooth roll used for dryer section. with the speed of paper machines improve and the width of paper increase, which requires the wall thickness more uniform, and higher requests for dynamic deflection to meet the needs of high speed paper machines.



2500 M/Min Cast Iron Hubs Felt Roller Data Sheet



Manufacturing standard
Shell in seamless steel pipe or plate bended
Cast iron hubs
Cast steel or alloy steel journals
cast iron bearing housings
Grease lubrication
Optional
Stainless steel material bearing housing
oil lubrication
Rubber or chromed coveredRope system:Loose or Fixed
Supply limits
Diameter: 100 - 1000 mm
Face length: 12000 mm
Working speed: max up to 2500 m/min
Balancing:Rotor rigid or flexible rotor

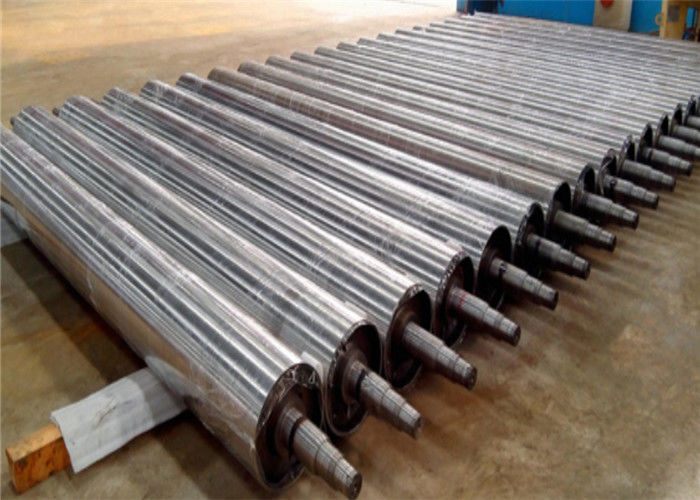

2500 M/Min Cast Iron Hubs Felt Roller  Pictures

2500m/Min Paper Making Machine Parts Cast Iron Hubs Felt Roller 0
