| Model No: | Carbon Blade | Application: | Paper Roller ,Dryer Cylinder Section |
|---|---|---|---|
| Machine Speed: | Below 1200m/min | Product Name: | Carbon Fiber Doctor Blade |
| Material: | Carbon Fiber | Proportion Of Ingredients: | 20%, 40%, 60% Carbon Fiber |
| High Light: | Carbon Fiber Cleaning Doctor Blade,Tissue Papermaking Ductor Blade,Ductor Blade For Tissue Papermaking |
||
Our company specializes in making paper machine doctor blade, cutting round blade, printing Ink blade , all kinds of blade holder etc.We have many years of experience in manufacturing blades, according to the different needs of customers to process a variety of high-quality blades to meet the needs of different customers.

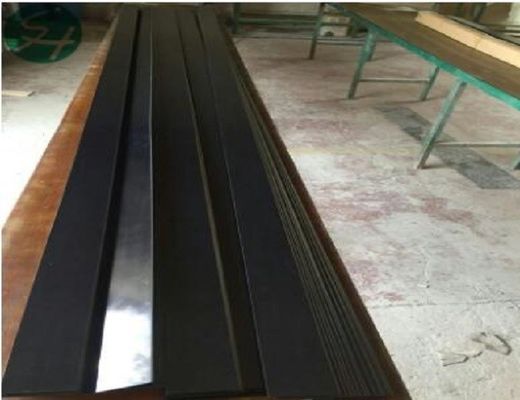

Carbon fiber doctor blade
| Name : | Carbon Fiber Doctor Blade |
| Material : | 2C,3C,4C,6C,100C |
| Major uses: | Suitable for all kinds of ceramic rollers, dryer cylinder rollers and hard rubber rollers. |
| Key Features: | Carton fiber 20%/30%/40%/60%/100%. Epo-glass fiber, with better lubricity and anti-abrasion. |
| Temperature resistance: | 185 centigrade. |
| Bending strength: | 600-790N/mm2 |
Resin doctor blade
| Name : | Fiber Glass /Epo-Glass Doctor Blade |
| Material : | Glass fiber with epoxy fiber |
| Major uses: | suitable for all rolls form mesh fabric to automatic paper reel. |
| Key Features: | micro-glass fiber and epoxy fiber with good chemical resistance. |
| Temperature resistance: | 185 centigrade. |
HDPE doctor blade
| Name : | HDPE-Polymer Doctor Blade |
| Material : | HDPE |
| Major uses: | Suitable for rubber rolls in wet end and polyester rubber rolls. |
| Key Features: | Molecular polyethylene: promoting lubricity blade and suitable for the wet end. |
| Temperature resistance: | over 80 centigrade. |
| Molecular Weight | 3 or 6 million |
Stainless steel doctor blade
| Name | Stainless steel doctor blade |
| Material : | Stainless steel |
| Major uses: | Suitable for stone rolls and Ebonite rolls in press section. |
| Key Features: | High hardness, with better scraping result, better corrosion-resistance. |
Phosphor Bronze Doctor Blade
|
Name : |
Phosphor broze doctor blade |
|
Material : |
Phosphor broze |
|
Major uses: |
Suitable for drying rolls, Yankee rolls in a dryer, cold steel rolls, WC thermal spraying rolls. |
|
Key Features: |
Softest in all metal blades, better removing dirt, less damaging roll. |
Packaging
products will packaged according to their shapes, weight, transport distance and transport modes. large machines will be packaged in sections. every part of export machinery will be in standard export package-seaworthy wooden case, waterproof film, straw rope, carton box etc., which will ensure the intactness of products.
Transportation
products will be transported according to their features and clients's needs. air, train and sea transportation are all available.
Huatao Group is a development, production, technical consulting, engineering design, business and sales into one company.
First of all, the advanced manufacturing process can ensure a longer service life of the blade, a lower wear rate of the roller surface, and can produce high-quality paper products. Secondly, a complete logistics system can enable us to ship to all parts of the world in the fastest time. On the basis of high quality, we are committed to developing new products with high technology content. Enhance market competitiveness and expand market.
