Automatic 0.6mpa 40mm Dia Core Winder Machine Plc Control Kraft Paper Machine

China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

I'm Online Chat Now

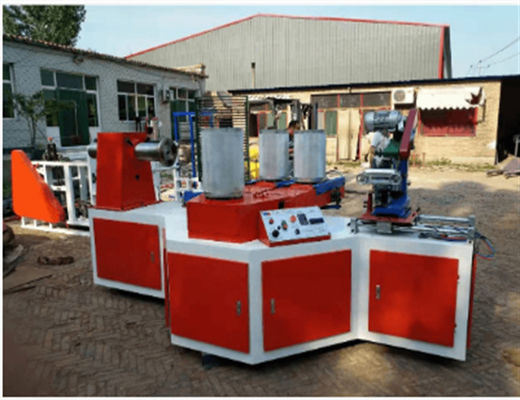

Automatic 0.6mpa 40mm Dia Core Winder Machine Plc Control Kraft Paper Machine

Automatic 0.6mpa 40mm Dia Core Winder Machine Plc Control Kraft Paper Machine
Automatic 0.6mpa 40mm Dia Core Winder Machine Plc Control Kraft Paper Machine

Large Image :  Automatic 0.6mpa 40mm Dia Core Winder Machine Plc Control Kraft Paper Machine

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000/SET
Packaging Details: Standard export packing
Delivery Time: 30days
Payment Terms: L/C, T/T
Detailed Product Description
Inside Diameter: 40-250mm Wall Thickness: 1-15mm
Tube Length: 1000-4000 Mm Tube Speed: 0-20 M/min
Main Motor: 22 KW Working Air Pressure: 0.6Mpa
Cutting Pattern: Double Knife System Operators: 3-5 Persons
Overall Size: 6900*2050*2300mm
High Light:

plc core winder machine

,

0.6mpa core winder machine

,

40mm dia core winder machine

Automatic Paper Core Making Winding Machine PLC Control With Stable Quality



Product description

Paper tube machine is used for producing paper tube. The paper tube produced is used in various industries, chemical fiber industrial tube, film industrial tube, printing industry tube, paper industry tube, leather industry tube, food packaging tube. , pipes for the construction industry, tubes for the exhibition industry, etc.

There are also many types of paper tube machines. The most common paper tube machines are spiral paper tube machines and flat roll paper tube machines.



Function

  1. Paper tube machine adopt microcomputer set in-line cut length, more accurately; Touch screen convenient for data adjusting.
  2. Paper ply tension control system, cylinder press paper ply firmly, can adjust tension freely.
  3. Supply gluing pots and pressure tension control system; adopt single or double side gluing.
  4. Flanged shaft with flexile design, suit with tapered mandrel, can do fine-turning to tube inside diameter.
  5. Tube in-line cutting moving speed controlled by servo motor, synchronous with tube production speed.
  6. Mechanical loading paper reels, helpful for reducing the labor force.
  7. Paper core machine frame is with the anti-deformation treatment, ensures machinery running stability and working precision.
  8. Delta PLC control and automatic meter counter, all the parameters can be set up on the control panel.
  9. HIGHTECH touch screen from Taiwan, all the parameters can be displayed on the HMI interface, easy operation.
  10. Imported frequency inverter drives the AC motor, the machine working is more stable.
  11. Independent electrical control box equips with input plug, the after-sale troubleshooting and repairing will be much easier.
  12. Dialogue monitor, automatic operation memory and store, automatic fault display.
  13. Multi cutter for cutting the paper core, high precision, and more bearable.
  14. Extreme quiet design transmission parts after special treatment, with high efficiency and low maintenance.
  15. Double side glue coating devices, the paper core is more sticky and stronger.
  16. 2 photocells for the paper core length tracking, after reaching the preset length, the paper core will be cut off.
  17. Circuit system with remote control function, if circuit or machine fail, the engineer can assist you in solving problems via machine communications tools and software.



Total Power(W) 22 kw
Dimension(L*W*H)

6900*2050*2300mm

Weight Around 3000-4000KG
Working speed 0-20m/min
Paper tube thickness 3-15 mm
Tube inner diameter 40-250mm
Paper plies

16

Paper gramme 150-550gsm
In-line cutting unit In-line cutting unit
In-line cutting length 1000-4000mm
Service

Engineer available to service machinery



Owing to our years of experience and in-depth knowledge of this domain, we are offering a qualitative range of Paper Tube Machine to the esteemed clients. The machines are designed & developed by our engineers using the premium quality raw material in accordance with the industry laid standards & norms.



Automatic 0.6mpa 40mm Dia Core Winder Machine Plc Control Kraft Paper Machine 0Automatic 0.6mpa 40mm Dia Core Winder Machine Plc Control Kraft Paper Machine 1



FAQ

Question: How to install and maintain the machine?

Answer: Firstly, we will provide the installation guild with the machine for your reference.

Secondly, our company is responsible for training production workers for you, ensuring that the workers will be independent operation.

Question: How can we get the matching accessories or wearing parts conveniently?
Answer: During the warranty, Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price. In fact, the wearing parts are standard parts that you could get it in your country at your convenience.
