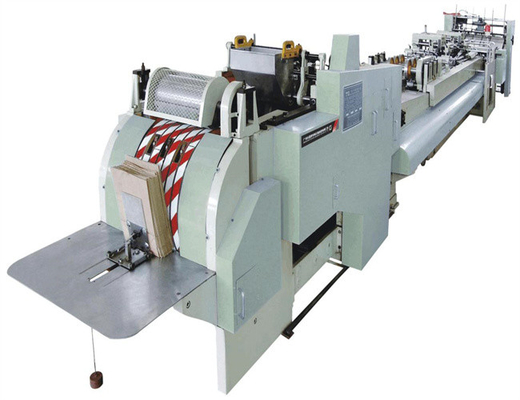

High Speed Plc 180g/M2 Kraft Paper Bag Making Machine

High Speed Plc 180g/M2 Kraft Paper Bag Making Machine
High Speed Plc 180g/M2 Kraft Paper Bag Making Machine High Speed Plc 180g/M2 Kraft Paper Bag Making Machine High Speed Plc 180g/M2 Kraft Paper Bag Making Machine

Large Image :  High Speed Plc 180g/M2 Kraft Paper Bag Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HT430
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000/SET
Packaging Details: Standard export packing
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 10 sets per month
Detailed Product Description
Material: Paper Usage: Paper Bag Making
Color: Dark Grey Trade Mark: HT
Package: Steel Pack Origin: China
Speed: 40-70 Bags/minute Handle: Paper Twisted Handle
High Light:

plc kraft paper bag making machine

,

180g/m2 kraft paper bag making machine

,

high speed kraft paper bag machine



High Speed Brown Paper Food Kraft Flat Handle and Paper Twisted Handle Switching Kraft Shopping Gift Carry Bag Making



Product description

Width of Paper 320-930mm
Length of Bag 225-470mm
Width of Paper Bag 80-280mm
Width of Bag Bottom 60-160mm
Paper weight 60-180G/M2
Max. Diameter of Paper Roll 1200mm
Internal Diameter of Roll Core 76mm
Max. Speed 200PCS/min
Total Power 18.5Kw
Weight of Machine approx. 8600 kg
Overall Dimension L 8600mm X W 2200mm xH 1800mm



Handle Making Unit

This machine puts a string between two pieces of patch and fixes it together with hot melt glue to make a hand grip.
The handle material can be twisted paper string, twisted p. P. String, acrylic round string ribbon string, also semi-round string etc...The handle making machine is installed parallel to the main machine. It's possible to install it on either side of the main machine, according to the space.



Handle (Cardboard) Pasting Unit

Handles or cut cardboard are pasted to the mouth of the main sheet paper to be folded.
This is a sheet paper notch cutting, a mouth pasting, a handle or cardboard applying, folding and pressing unit.


Punching Unit
This unit punches two holes for string or four holes for happy tags. In the case of two, there are 3 kinds of punches. (4, 6, and 8mm).
According to the machine type, it's possible to set the interval between holes from 80 to 200mm.
It's now possible to set up a banana type hole cutter option.



Structure features

  1. Introduce PLC and In-touch screen human-machine interface centralized control system, with reliable performance, easy for operation and maintenance. English/Chinese language can be changed easily.

  2. Shaft less hydraulic material loading system with chuck, hydraulic up/down system

  3. Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter Wheel type gusset unit with motor driving.

  4. Servo motors for main feeding and bag length control, Closed type automatic glue application and forming system, Paper impress, bottom folding, gluing and bag formation can be completed automatically.

  5. Side lay working table, easy operation.



Technology Parameters




Machine Model HT330
Paper Roll Width 530-1010mm
Paper Bag Width 180-330mm
Paper Bag Width without Handle 120-330mm
Paper Tube Length 270-520mm
Paper Tube Length without Handle 270-660mm
Bag Bottom Width 70-150mm
Paper GSM 60-150g
Max. Paper Roll Diameter 1200mm
Paper Roll Core Diameter 76mm
Length of Twisted Rope (customizable) 300-400mm
Length of Twisted Rope 4-6mm
Handle Patch Length 150mm
Handle Patch Width 35-50mm
Handle Patch Roll Diameter 1000mm
Paper Patch Roll Width 70-100mm
Paper GSM for Handle Patch 110-250g
Capacity 70-120 bag per minute
Total Power 30 kw
Machine Weight 18000 kgs
Machine Dimension (L*W*H) 16000 x 4500 x 2600 mm

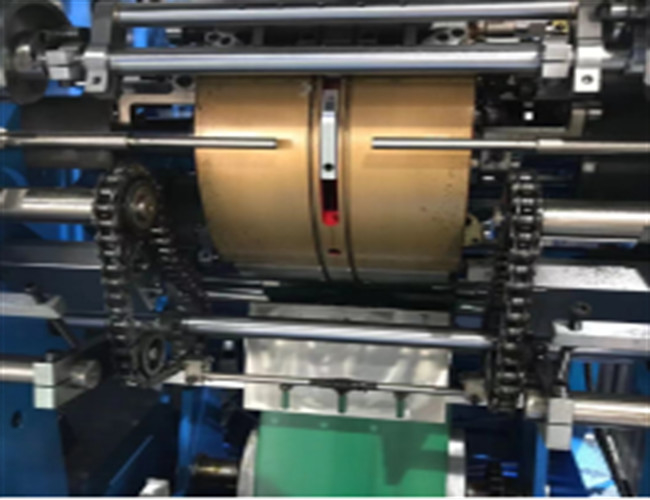

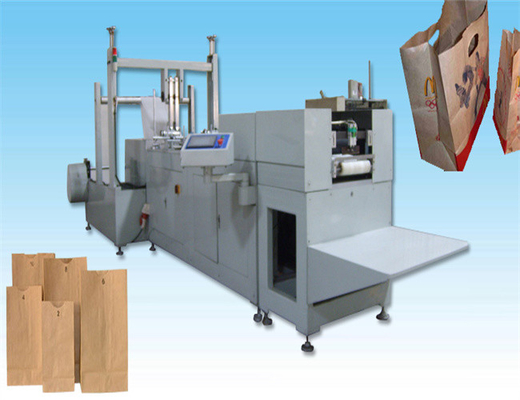

Product Display

High Speed Plc 180g/M2 Kraft Paper Bag Making Machine 0High Speed Plc 180g/M2 Kraft Paper Bag Making Machine 1High Speed Plc 180g/M2 Kraft Paper Bag Making Machine 2High Speed Plc 180g/M2 Kraft Paper Bag Making Machine 3
