Automatic Pe Coated 4oz Paper Cup Forming Machine Single Turnplate

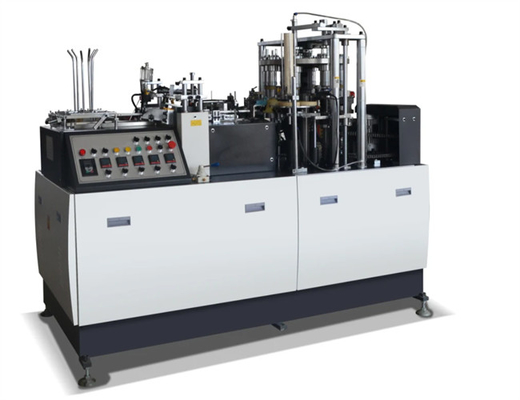

Large Image : Automatic Pe Coated 4oz Paper Cup Forming Machine Single Turnplate

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO
Model Number:	HT MC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 50000/set
Packaging Details:	Standard Export Package
Delivery Time:	10 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Applicable Objects:	Food	Speed:	40-60pcs/min
Required Paper:	Single Side PE Coated Paper	Automation:	Automatic
Logo Printing:	Without Logo Printing	Name:	Automatic Pe Coated Paper Cup Forming Machine
Process:	Paper Machine	Paper Material:	Single/Double PE Coated Paper
Highlight:	4oz paper cup forming machine , single turnplate paper cup forming machine , pe coated paper cup manufacturing machine

Automatic PE Coated 4oz Paper Cup Forming Machine Single Turnplate

Product Specifications

Attribute	Value
Applicable Objects	Food
Speed	40-60pcs/min
Required Paper	Single Side PE Coated Paper
Automation	Automatic
Logo Printing	Without Logo Printing
Process	Paper Machine
Paper Material	Single/Double PE Coated Paper

Professional High Speed Automatic PE Coated Paper Cup Forming Machine

The HT-C800 type machine is an upgraded single turnplate paper cup machine featuring open cam design, interrupted division design, gear drive, and longitudinal axis design for optimal functionality distribution.

Key Features

Spray lubrication system reduces part wear
Swiss Leister heaters for cup body and bottom paper sealing
PLC-controlled silicon oil flow with electromagnetic valve
Two-stage top curling process for perfect cup forming
PLC-controlled process with photoelectric failure-detecting system
Servo control feeding for reliable performance
Optional CCD image detection system for quality control
Automatically stops operation when failures occur

Technical Specifications

Model	HT-C800
Weight	3200 KG
Dimension	2600x1200x1700 MM
Total power	12KW 380V50Hz
Air supply requirement	0.4MPa, 0.6cube/min
Capacity	80-100 PCS/MIN
Paper specification	Single PE coated
Paper grams	190-350g/mm
Cup size	4-16OZ

Machine Advantages

Intermittent indexing cam mechanism of open type
Gear transmission and vertical axis structure for optimal component distribution
Automatic spray lubrication system reduces wear
Swiss Leister heaters ensure stable adhesion
Two-stage curling process improves strength and dimensional stability
Complete process integration from paper feeding to cup collection
Ideal for cup heights from 50 to 135mm
