Nash Liquid Vacuum Industrial Centrifugal Pumps For Paper Machine With Compressor

Nash Liquid Vacuum Industrial Centrifugal Pumps For Paper Machine With Compressor
Nash Liquid Vacuum Industrial Centrifugal Pumps For Paper Machine With Compressor Nash Liquid Vacuum Industrial Centrifugal Pumps For Paper Machine With Compressor

Large Image :  Nash Liquid Vacuum Industrial Centrifugal Pumps For Paper Machine With Compressor

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: CE
Model Number: 2BEC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 20000usd-50000usd/set
Packaging Details: 20ft Container or 40ft Container
Delivery Time: 30-50 days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 20 sets/month
Detailed Product Description
Material: Casting Iron Or Stainless Steel Drive: Belt Or Drive
Power: 1.5-500kw Structure: Rotary Vacuum Pump
Work Function: Pre-Suction Pump Working Conditions: Wet
High Light:

compressor industrial centrifugal pumps

,

paper machine industrial centrifugal pumps

,

paper machine nash vacuum pump

Nash Liquid Vacuum Pump for Paper Machine with Compressor

2BE series products can be driven with many different sets, such as, the V-belt, synchronal motor, gear box etc. In order to save space, more than two or at most four sets of the 2BE series pumps can be driven by one motor simultaneously.
When set a middle wall in the casing, the pressure tolerance between the two sides is lower than 80kPa and the two parts can work in different vacuum status respectively. Thus one pump can work well like two. Hereby the product operating flexibility is improved effectively.





The main characteristics of 2BE series products:

· The tolerance, corrosive status, and the begrime situation can be easily observed by the big inspection port on both sides of the end-shield.
· The 2BE series pumps have flanges both on the top and sides with the same diameter. It is more convenient to connect with the 2BE3 series pumps.
· The bearings are all used of the imported products in order to keep the precise orientation and the high stability during the working of the pump.

· The material of the impeller is QT400 nodular iron or steel plates for ensuring the stability of the pump under the various rigorous situations and extending the life of the pump effectively.
· The casing is made of steel or stainless steel plates to extend the lifetime of the 2BE series pumps.
· The shaft bushing is made of stainless steel plates to extend the life of the pumps 5 times more than the normal material.

Product Parameters



Type revolution ( transmission way) r/min Maximum shaft power kW motor power kW motor model Ultimate vacuumcPa Maximum air valume m3/h Pump weight kg
  1100 (belt) 7.2 11 Y160M-4   300 428
  1300 (belt) 9.2 11 Y160M-4   360 444
2BE1 151 1450 (direct connection) 10.8 15 Y160L-4 3300 405 469
  1625 (belt) 13.2 15 Y160L-4   445 469
  1750 (belt) 14.8 18.5 Y180M-4   470 503
  1100 (belt) 8.3 11 Y160M-4   340 437
  1300 (belt) 10.5 15 Y160L-4   415 481
2BE1 152 1450 (direct connection) 12.5 15 Y160L-4 3300 465 481
  1625 (belt) 15 18.5 Y180M-4   510 515
  1750 (belt) 17.2 22 Y180L-4   535 533
  1100 (belt) 10.6 15 Y160L-4   445 480
  1300 (belt) 13.6 18.5 Y180M-4   540 533
2BE1 153 1450 (direct connection) 16.3 18.5 Y180M-4 3300 600 533
  1625 (belt) 19.6 22 Y180L-4   660 551
  1750 (belt) 22.3 30 Y200L-4   700 601
  970 (direct connection) 17 22 Y200L2-4   760 875
  790 (belt) 14 18.5 Y180M-4   590 850
2BE1 202 880 (belt) 16 18.5 Y180M-4 3300 670 850
1100 (belt) 22 30 Y200L-4 850 940
  1170 (belt) 25 30 Y200L-4   890 945
  1300 (belt) 30 37 Y225S-4   950 995
  970 (direct connection) 27 37 Y250M-6   1120 1065
  790 (belt) 20 30 Y200L-4   880 995
2BE1 203 880 (belt) 23 30 Y200L-4 3300 1000 995
1100 (belt) 33 45 Y225M-4 1270 1080
  1170 (belt) 37 45 Y225M-4   1320 1085
  1300 (belt) 45 55 Y250M-4   1400 1170
  740 (direct connection) 38 45 Y280M-8   1700 1693
  558 (belt) 26 30 Y200L-4   1200 1460
2BE1 252 660 (belt) 31.5 37 Y225S-4 3300 1500 1515
832 (belt) 49 55 Y250M-4 1850 1645
  885 (belt) 54 75 Y280S-4   2000 1805
  938 (belt) 60 75 Y280S-4   2100 1805
  740 (direct connection) 54 75 Y315M-8   2450 2215
  560 (belt) 37 45 Y225M-4   1750 1695
  660 (belt) 45 55 Y250M-4   2140 1785
2BE1 253 740 (belt) 54 75 Y280S-4 3300 2450 1945
792 (belt) 60 75 Y280S-4 2560 1945
  833 (belt) 68 90 Y280M-4   2700 2055
  885 (belt) 77 90 Y280M-4   2870 2060
  938 (belt) 86 110 Y315S-4   3020 2295





Photos:

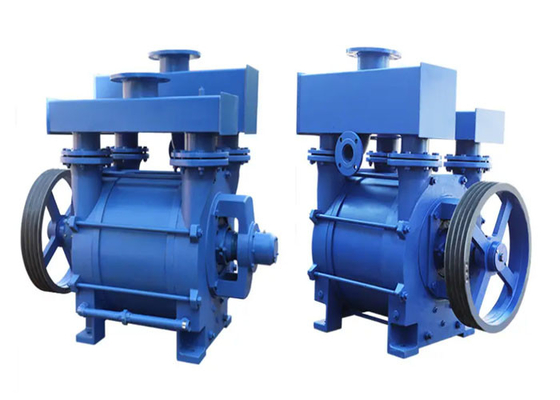

Nash Liquid Vacuum Industrial Centrifugal Pumps For Paper Machine With Compressor 0

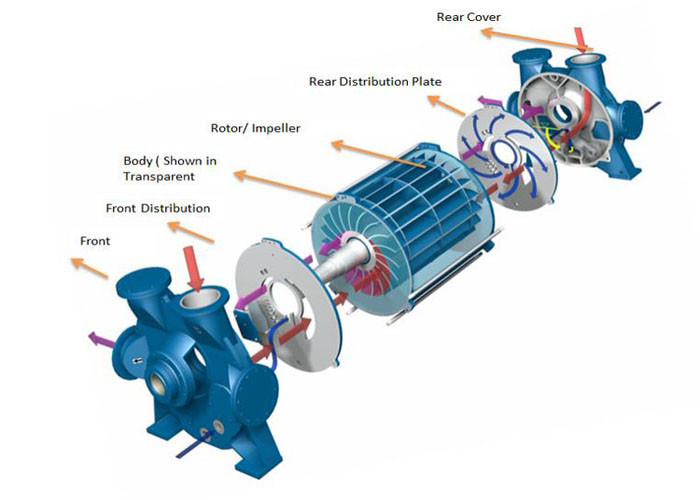

Nash Liquid Vacuum Industrial Centrifugal Pumps For Paper Machine With Compressor 1
