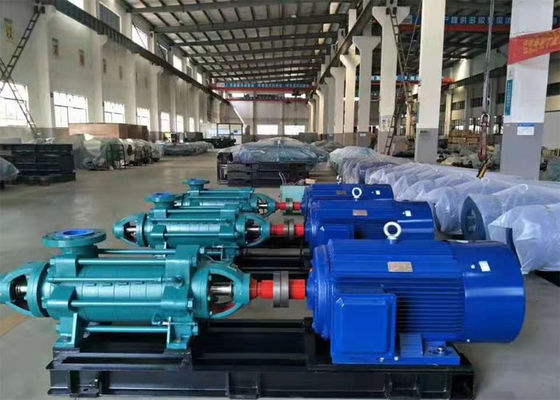

Stainless Steel Industrial Horizontal Multistage Centrifugal Pumps

Horizontal Boiler Feed Water Transfer Multistage Pump

Parameters:

1. Flow rate:Q=20~540m3/h
2. Total head:H=16~370m
3. Speed:n=1450rpm/2950rpm
4. S.g.:γ ≤1.15
5. Temperature:T=-0~80ºC
6. Pump diameter:80,100,125,150,200,250mm

Structure:

1. The pump set mainly consists of bearing housing,inlet and out section,middle section,guide vanes.
2. The pump inlet is horizontal and outlet is vertical;The balance hose on the inlet is connected back to the water inlet side.
3. Between bearings structure.The rotary part consists of shaft,impellers and a balance disk.
4. The gaps between pump inlet section,middle section and outlet section are smeared by molybdenum disulfide compound calcium-based lubricating grease as the sealings. The gaps of rotary part and static part are sealed seal rings,guide vane sleeve and packing.
5. Standard shaft sealing is packing,can be customized as mechanical seal.

FAQ:

Q1: Are you manufacturer or trading company?
Our company is a professional pumps supplier, and export pumps by ourselves.

Q2: What's your business range?

We manufacture chemical centrifugal pump, self-sucking pump, vertical/horizontal multistage pump,sewage pump, water pump,oil pump, screw pump, diaphragm pump, fire pump, constant pressure VFD water supply system and so on.

Q3: How to check and verify the products?

We support video inspection and verification .

Q4: What are your payment terms?

Common terms: T/T 50% deposit, balance payment before shipment, L/C.

Q5: How about warranty and after-service?

12 months warranty time after receiving days, not include quick-wear parts and default phase.We promise 24 hours action for your problems.
