| Material: | Stainless Steel | Coating: | Chrome/Ceramic |
|---|---|---|---|
| Diameter: | 6.35mm -38.00mm | Hard Chrome Plating Thickness: | 0.008mm - 0.075mm |
| Ceramic Coating Thickness: | 0.250mm | Industry: | Paper And Cardboard |
| High Light: | paper coating machine 10mm smooth rod,ss 10mm smooth rod,10mm smooth metal rod |
||
Paper Coating Machine SS Smooth Rods With Optimum Surface Quality And Coating
Description:
Smooth metering rods are primarily used to apply clay coatings to paperboard and to distribute higher viscosity coatings evenly and smoothly. Many customers use a smoothing rod as a follow-up process to a metering rod or other coating method to create a smoother coating result, especially when using high viscosity coatings.
Smooth Metering Rods are mainly relies on the adsorption or penetration of the coating and the substrate (film, paper, cloth, etc.) to make the coating evenly distributed on the surface of the substrate.
Application:
1. Coating paperboard and linerboard
2. Light Weight Coatings on fine papers
3. Specialty & custom coating applications
4. Clay and color coating
Parameter:
| Brand | HUATAO |
| Model | HT-8 |
| Material | Stainless Steel |
| Diameters | 6.35mm -38.00mm |
| Chrome plated rod length | Max 12m |
| Ceramic coated rod length | Max 9.6m |
| Hard Chrome Plating Thickness | 0.008mm - 0.075mm |
| Ceramic Coating Thickness | 0.250mm |
Advantage:
1. Manufactured with the finest stainless steel.
2. Optimum surface quality and optimum coating (hardness & thickness)
3. Our smooth metering rod can meet any surface finish requirement and are hard chrome plated to significantly extend life.

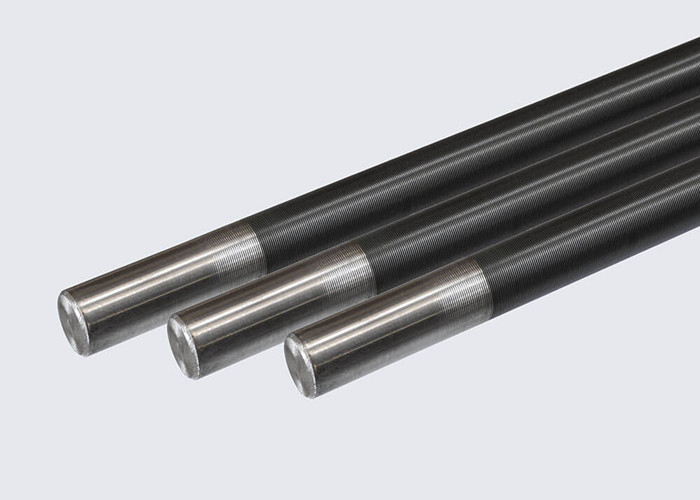

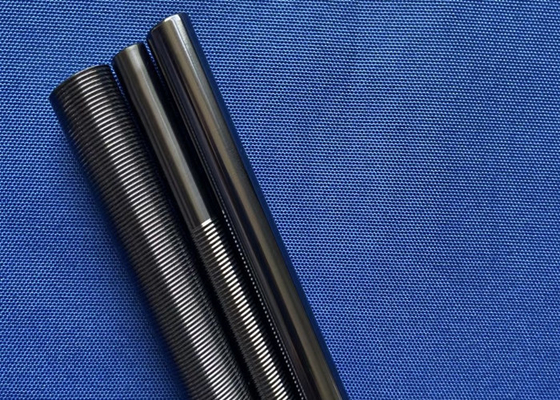

Detail Photo:
