| Name: | Hydraulic Baler Machine | Core Components: | Machine Bory, Oil Cylinder, |
|---|---|---|---|
| Voltage: | 220V/380V 50Hz | Application: | Waste Material Collection |
| Pressure: | 160tons | Bale Size: | 1600*1100*850 |
| Highlight: | 160 tons hydraulic baler machine,waste plastic baling machine,industrial hydraulic baler with warranty |
||

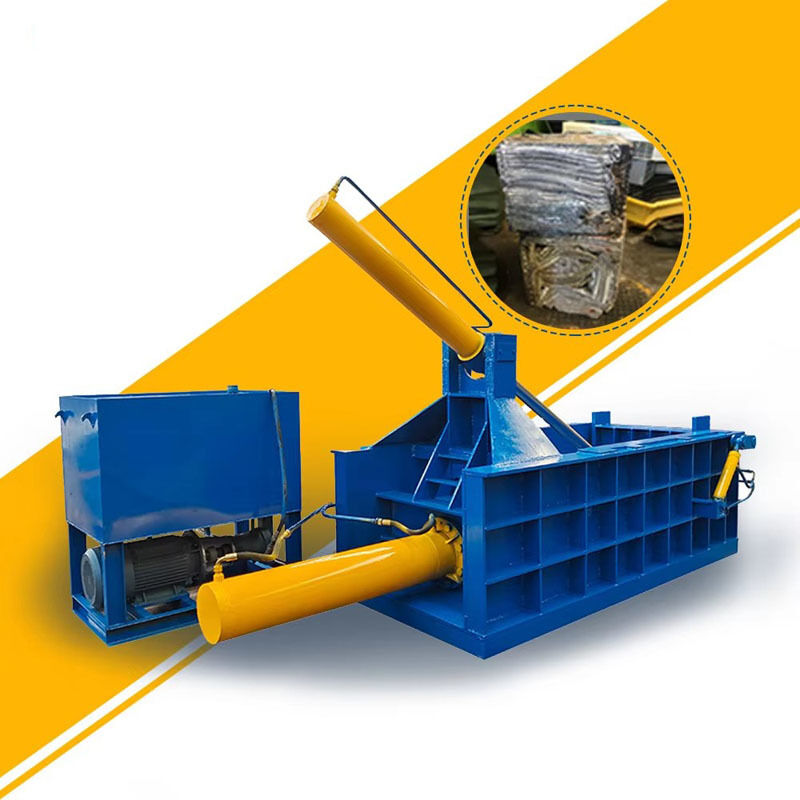

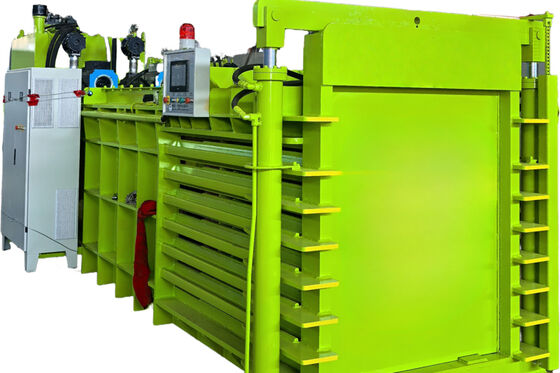

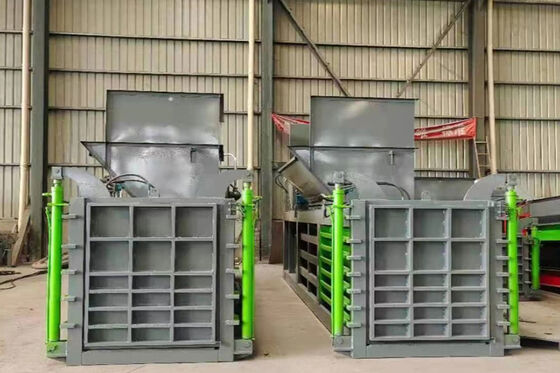

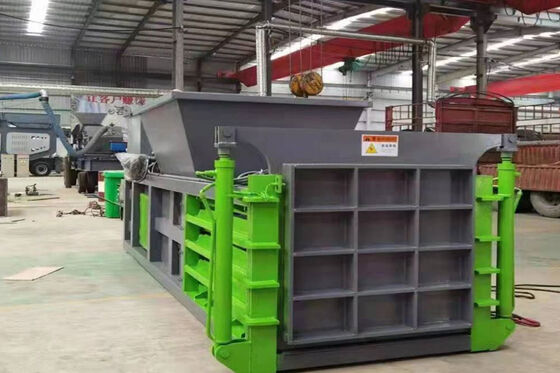

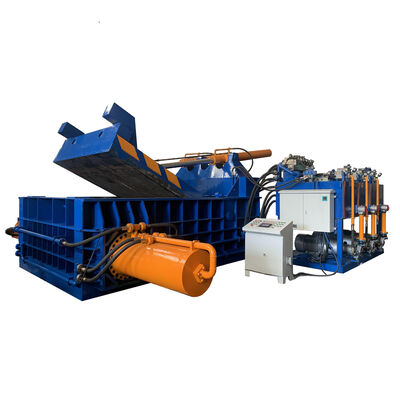

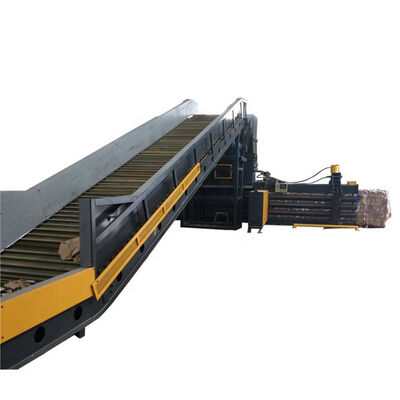

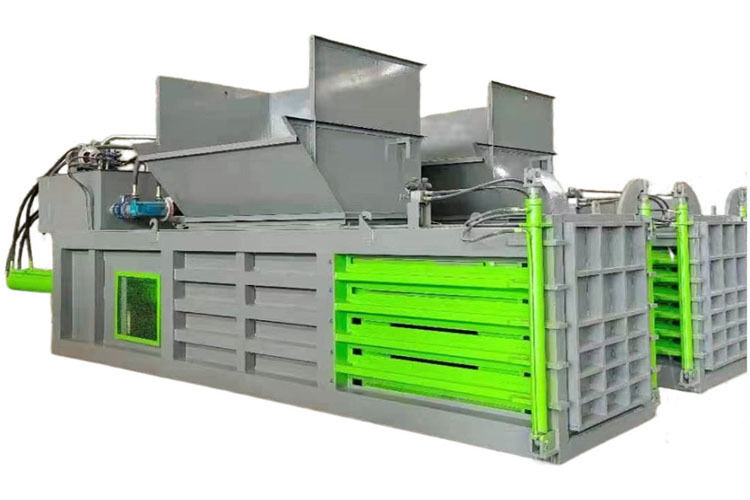

Huatao 160 Tons Pressure Hydraulic Baler Machine For Waste Plastic Baling
Horizontal Hydraulic Baler Description:
HUATAO supply the vertical and horizontal hydraulic baler. They are suitable for compressing and baling the waste paper (cardboard boxes, newsprint, etc.), waste plastics (plastic films, turnover boxes, PET bottles, etc.), straw and other loose materials.
Baled items not only greatly reduce storage space, but also lower transportation costs, and are beneficial for the recycling of waste materials.A hydraulic baler mainly consists of the host frame structure system, hydraulic system, and auxiliary components.
Horizontal Hydraulic Baler Specification:
| Product Name | Fully Automatic Horizontal Hydraulic Baler | |
| Product Model | HTHB-160 | HTHB-120 |
| Pressure | 160T | 120T |
| Oil Pump | 50A38 Double Combination Pump | 50A35 Double Combination Pump |
| Electronic Control System | PLC Computer Automatic Degree Infrared Sensor,Object Detection | |
| Inlet Size | 1100mm*2000mm | 1100mm* 1600mm |
| Outlet Size | 2000 (Adjustable) *1100*1250mm | 1800(Adjustable) *1100*900mm |
| Bale Density | 400-500kg/m3 | 400kg/m3 |
| Capacity | 8-12T/H | 6-10T/H |
| Power | 37KW+5KW+4KW | 30KW+4KW+4KW |
![]()
Technical advantage of baler
01 Highly efficient in energy-saving design
Adopt advanced energy-saving technology to reduce energy consumption, improve baling efficiency and
02 Intelligent control system
Equipped with the intelligent operation interface to realize accurate control and improve the baling
03 Durable material selection
Selection of high strong durable material to extend the lifetime and reduce maintenance frequency.
04 Intelligent recognition system
Integration of intelligent technology can automatically tie up to improve efficiency and accuracy of
05 Environmental protection and energy saving
The energy-saving motor and the optimization design conforms to green production standard by
06 Customized design
Customized baling machine is available according to customer demand in meeting the requirements
07 Diversified baling requirements
Different materials such as waste cardboard, plastics, textiles, etc., are to provide professional
![]()
