Product Details:
Payment & Shipping Terms:
|
| Name: | Vertical Hydraulic Baler Machine | Core Components: | Machine Bory, Oil Cylinder, |
|---|---|---|---|
| Voltage: | 220V/380V 50Hz | Application: | Carton Board Baler |
| Pressure: | 60tons | Weight: | 500KGS/Bale |
| Highlight: | 120 ton hydraulic baler machine,vertical carton board baler,industrial hydraulic baling press |
||

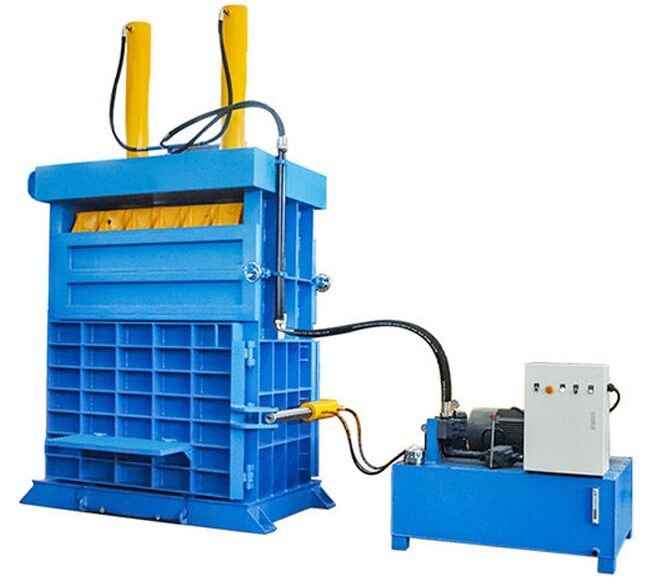

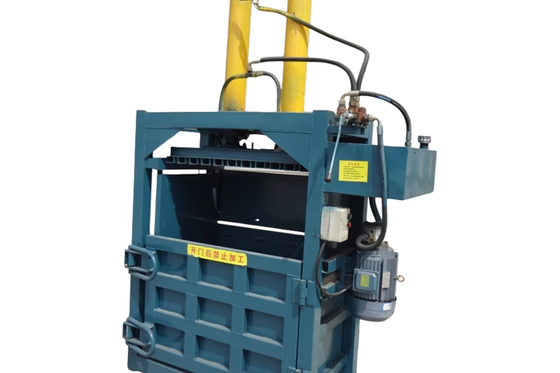

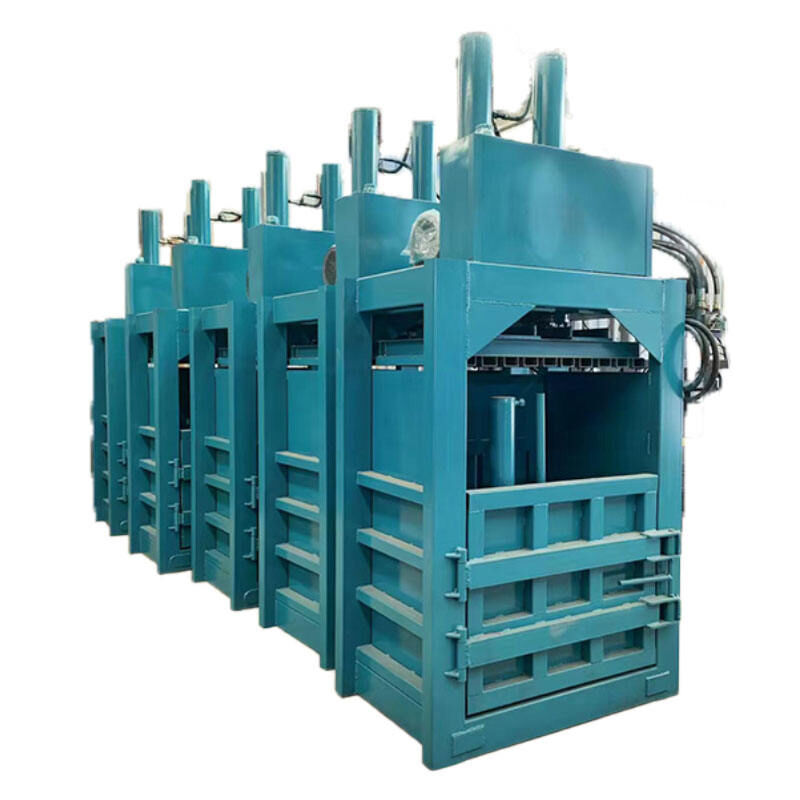

120 Tons Vertical Hydraulic Baler Machine For Carton Board Bale
Vertical Hydraulic Baler Description:
HUATAO supply the vertical and horizontal hydraulic baler. Baler machine mainly is used for baling cartons, cotton yarn, plastic, etc.
It is designed as vertical structure,hydraulic transmission, electrical control and manual binding. Usually the force of this series is from 20 ton to 80ton.
Vertical Hydraulic Baler Specification:
| Type(pressure) | 30T(for film) | 60T | 80T | 80T | 100T(for cans) | 100T |
| Bale size | 1*0.7*0.8m | 1*0.7*0.8m | 1*0.7*1m | 1.25*0.85*1.2m | 1.2*0.8m | 1.6*0.75*1.1m |
| Power | 7.5kw | 11kw | 11kw | 11kw | 18.5kw | 18.5kw |
| Weight | About 1.68T | About 2.48T | About 3.48T | About 3.58T | About 4.86T | About 4.86T |
| Capacity | 400kg/hour | 600kg/hour | 600kg/hour | 800kg/hour | 1000kg/hour | 1000kg/hour |
![]()
Vertical Hydraulic Baler Features
Adopt brand superposition type valve group.
Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump.
Specially designed for large material load, hydraulic door opening and double cylinders deliveer strong compression force.
Equipped with both fixed and movable type of anti-rebound device.
After-sales Service
7X24hours after-sales service
Service phone line keep 24 hours unblocked
All emails will get response within 10 hours
Any needed machine parts can be supplied with professional guiding and ordinary.
Collect after-sale-service feedback from customer, keep improving.
we have rich experience after sale staff who have the ability of handling emergency situation, that can ensure machine normal working and customer's production go smoothly.
![]()
