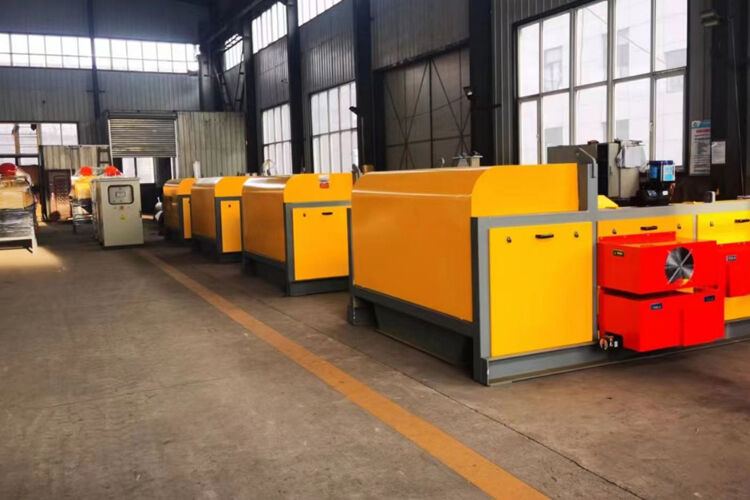

Eddy Current Separator for ABS HIPS Plastic Purification from Aluminium Inserts

Eddy Current Separator for ABS HIPS Plastic Purification from Aluminium Inserts

Product Description:

Recyclers processing lithium-ion battery casings will benefit from this eddy current separator which recovers aluminum and copper current collector tabs from shredded empty battery shells. The machine features an eccentric magnetic rotor made from neodymium iron boron magnets capable of producing an alternating field with 4500 gauss peak intensity. Rotor speed ranges from 1500 to 5200 RPM controlled through an intuitive touchscreen interface. The belt is 600 mm wide and constructed from 5 mm anti-static polyurethane with a mild surface texture. A 2.2 kW drive motor powers the system requiring 220V 60Hz three-phase power for North American installations. The frame is built from 4 mm stainless steel sheet finished with a brushed satin surface that resists corrosion from residual electrolyte. A manual splitter baffle with locking mechanism allows operators to set the separation cut point with 1 mm precision. The feed chute includes an adjustable slide gate to control material flow rate. Optimal particle size for this application is 2 mm to 10 mm with throughput capacities of 1 to 2.5 tons per hour. Overall machine dimensions are 2000 mm by 1000 mm by 1400 mm.

Product Introduction

This Eddy Current Separator (ECS) is an advanced sorting system designed to automatically eject non-ferrous metals (aluminium, copper, zinc, brass) from mixed solid waste streams. Built for continuous operation in Municipal Solid Waste (MSW) facilities, Incinerator Bottom Ash (IBA) recovery lines, and single-stream recycling centers, it transforms low-grade residue into profitable metal fractions.

Target Applications

• Municipal Solid Waste (MSW) Treatment Plants:

  Recovers beverage cans, aluminum foils, and small non-ferrous fragments from the heavy fraction after primary crushing / bag opening.

• Incineration Bottom Ash (IBA) Valorization:

  Extracts valuable non-ferrous metals from bottom ash, maximizing resource recovery and reducing disposal costs.

• Scrap Metal Recycling (Zorba Upgrading):

  Purifies shredded non-ferrous mixtures (Zorba) into high-grade copper, aluminum, and magnesium for smelters.

• Glass / Plastic Purification Lines:

  Removes metal contaminants from crushed glass (cullet) or plastic flakes to protect downstream shredders and improve end-product purity.

Key Advantages for Heavy-Duty Waste Streams

Separation Efficiency Guarantee

Up to 98% recovery rate for aluminium cans (20-50mm size) and 85-92% for fine non-ferrous particles (2-10mm), verified in real MSW plants.

Technical Specifications (Standard Range)

Competitive Advantages for Project Buyers

• Built for 24/7 harsh operation

  Reinforced frame, sealed bearings, and oversized shaft – tested in MSW plants handling >30% moisture and 15% abrasive content.

• Lower operating cost

  Energy-efficient rotor design consumes 20-30% less power than traditional models at same throughput.

• Easy integration

  Bolt-on design with standard inlet/outlet heights; can be retrofitted into existing conveyor lines within 2 days.

• Global after-sales support

  Spare parts (belts, bearings, rotor modules) available from regional warehouses. 12-month warranty + remote troubleshooting.

Request for Quotation (RFQ) – Please Provide:

To engineer the right solution for your facility, kindly share:

• Feed material description (e.g., MSW heavy fraction, bottom ash, glass cullet, Zorba)
• Particle size range (minimum to maximum in mm)
• Target output purity requirement (e.g., >95% aluminium)
• Expected processing volume (tons per hour or tons per day)
• Preferred working width (mm) and local voltage/frequency
• Site environmental conditions (indoor/outdoor, humidity, temperature)
• *Optional: Send a 2-5 kg material sample to our test center for a free separation analysis report.*
