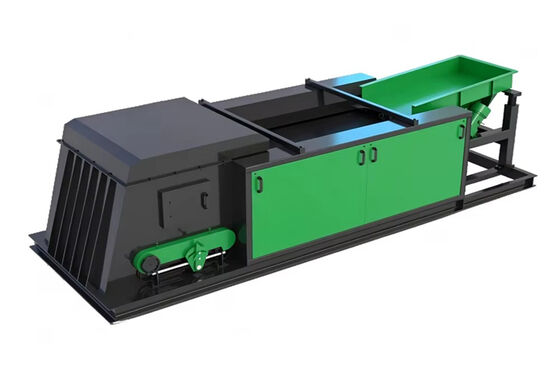

Eddy Current Separator for Copper Recovery from Shredded Battery Casings

Eddy Current Separator for Copper Recovery from Shredded Battery Casings

Product Description:

This eddy current separator serves the WEEE plastics purification market extracting aluminium labels foil and small metal inserts from regrind material. The machine operates with a rotor speed range of 1800 to 4600 RPM allowing operators to match the alternating field strength to specific metal types. The belt width is 800 mm with a processing capacity of 2 to 4 tons per hour for plastic particles sized between 3 mm and 25 mm. A 3 kW motor drives the rotor while a separate 0.75 kW motor powers the belt. The frame is constructed from 5 mm mild steel with a corrosion-resistant RAL 7035 light gray powder coating. The belt material is 6 mm thick anti-static rubber with a diamond pattern texture for positive material grip. A manual splitter baffle with a locking handle and position scale enables quick repeatable adjustments. The feed system includes a leveling gate to ensure a uniform material layer thickness of 10 to 20 mm across the belt. The discharge section features two collection chutes lined with 3 mm wear-resistant polyurethane to reduce noise and prevent material damage. Typical applications include TV housing regrind monitor housing regrind and printer parts regrind.

Product Introduction

This Eddy Current Separator (ECS) is an advanced sorting system designed to automatically eject non-ferrous metals (aluminium, copper, zinc, brass) from mixed solid waste streams. Built for continuous operation in Municipal Solid Waste (MSW) facilities, Incinerator Bottom Ash (IBA) recovery lines, and single-stream recycling centers, it transforms low-grade residue into profitable metal fractions.

Target Applications

• Municipal Solid Waste (MSW) Treatment Plants:

  Recovers beverage cans, aluminum foils, and small non-ferrous fragments from the heavy fraction after primary crushing / bag opening.

• Incineration Bottom Ash (IBA) Valorization:

  Extracts valuable non-ferrous metals from bottom ash, maximizing resource recovery and reducing disposal costs.

• Scrap Metal Recycling (Zorba Upgrading):

  Purifies shredded non-ferrous mixtures (Zorba) into high-grade copper, aluminum, and magnesium for smelters.

• Glass / Plastic Purification Lines:

  Removes metal contaminants from crushed glass (cullet) or plastic flakes to protect downstream shredders and improve end-product purity.

Key Advantages for Heavy-Duty Waste Streams

Separation Efficiency Guarantee

Up to 98% recovery rate for aluminium cans (20-50mm size) and 85-92% for fine non-ferrous particles (2-10mm), verified in real MSW plants.

Technical Specifications (Standard Range)

Competitive Advantages for Project Buyers

• Built for 24/7 harsh operation

  Reinforced frame, sealed bearings, and oversized shaft – tested in MSW plants handling >30% moisture and 15% abrasive content.

• Lower operating cost

  Energy-efficient rotor design consumes 20-30% less power than traditional models at same throughput.

• Easy integration

  Bolt-on design with standard inlet/outlet heights; can be retrofitted into existing conveyor lines within 2 days.

• Global after-sales support

  Spare parts (belts, bearings, rotor modules) available from regional warehouses. 12-month warranty + remote troubleshooting.

Request for Quotation (RFQ) – Please Provide:

To engineer the right solution for your facility, kindly share:

• Feed material description (e.g., MSW heavy fraction, bottom ash, glass cullet, Zorba)
• Particle size range (minimum to maximum in mm)
• Target output purity requirement (e.g., >95% aluminium)
• Expected processing volume (tons per hour or tons per day)
• Preferred working width (mm) and local voltage/frequency
• Site environmental conditions (indoor/outdoor, humidity, temperature)
• *Optional: Send a 2-5 kg material sample to our test center for a free separation analysis report.*
