Anti Static Belt Eddy Current Separator for Dusty E waste Shredding Plant

Anti Static Belt Eddy Current Separator for Dusty E waste Shredding Plant

Product Description:

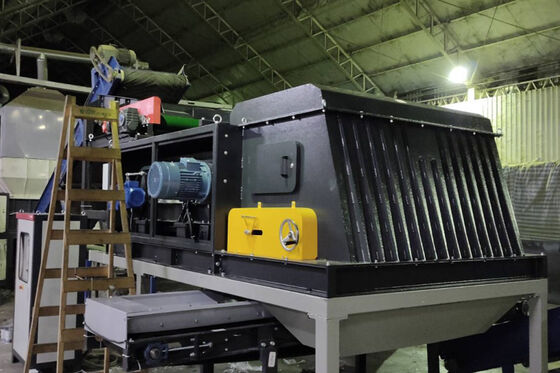

Designed for integration into fully automated WEEE recycling lines this eddy current separator features PLC control with remote monitoring capability. The system communicates via Modbus RTU allowing operators to adjust rotor speed and monitor belt condition from a central control room. Rotor speed range is 1200 to 5200 RPM with automatic adjustment based on material feed rate detected by a upstream sensor. The belt width of 1000 mm processes 4 to 9 tons per hour of shredded electronic waste with particle sizes from 2 mm to 30 mm. A 7.5 kW motor provides power with soft-start capability to reduce mechanical stress. The frame is built from 6 mm stainless steel with a brushed finish and welded internal reinforcements. The belt is 7 mm thick anti-static rubber with a high-friction surface pattern. A pneumatic splitter baffle system with position feedback allows precise cut point control without operator intervention. The magnetic rotor housing includes temperature sensors that trigger an alarm if internal temperatures exceed 80 degrees Celsius. This machine is suitable for large-scale WEEE facilities processing refrigerators washing machines and electronic scrap.

Product Introduction

This Eddy Current Separator (ECS) is an advanced sorting system designed to automatically eject non-ferrous metals (aluminium, copper, zinc, brass) from mixed solid waste streams. Built for continuous operation in Municipal Solid Waste (MSW) facilities, Incinerator Bottom Ash (IBA) recovery lines, and single-stream recycling centers, it transforms low-grade residue into profitable metal fractions.

Target Applications

• Municipal Solid Waste (MSW) Treatment Plants:

  Recovers beverage cans, aluminum foils, and small non-ferrous fragments from the heavy fraction after primary crushing / bag opening.

• Incineration Bottom Ash (IBA) Valorization:

  Extracts valuable non-ferrous metals from bottom ash, maximizing resource recovery and reducing disposal costs.

• Scrap Metal Recycling (Zorba Upgrading):

  Purifies shredded non-ferrous mixtures (Zorba) into high-grade copper, aluminum, and magnesium for smelters.

• Glass / Plastic Purification Lines:

  Removes metal contaminants from crushed glass (cullet) or plastic flakes to protect downstream shredders and improve end-product purity.

Key Advantages for Heavy-Duty Waste Streams

Separation Efficiency Guarantee

Up to 98% recovery rate for aluminium cans (20-50mm size) and 85-92% for fine non-ferrous particles (2-10mm), verified in real MSW plants.

Technical Specifications (Standard Range)

Competitive Advantages for Project Buyers

• Built for 24/7 harsh operation

  Reinforced frame, sealed bearings, and oversized shaft – tested in MSW plants handling >30% moisture and 15% abrasive content.

• Lower operating cost

  Energy-efficient rotor design consumes 20-30% less power than traditional models at same throughput.

• Easy integration

  Bolt-on design with standard inlet/outlet heights; can be retrofitted into existing conveyor lines within 2 days.

• Global after-sales support

  Spare parts (belts, bearings, rotor modules) available from regional warehouses. 12-month warranty + remote troubleshooting.

Request for Quotation (RFQ) – Please Provide:

To engineer the right solution for your facility, kindly share:

• Feed material description (e.g., MSW heavy fraction, bottom ash, glass cullet, Zorba)
• Particle size range (minimum to maximum in mm)
• Target output purity requirement (e.g., >95% aluminium)
• Expected processing volume (tons per hour or tons per day)
• Preferred working width (mm) and local voltage/frequency
• Site environmental conditions (indoor/outdoor, humidity, temperature)
• *Optional: Send a 2-5 kg material sample to our test center for a free separation analysis report.*
