Product Details:
Payment & Shipping Terms:
|
| Width: | Recommend 5.8m Width | GSM: | ≥3600g/sq.mt |
|---|---|---|---|
| Length: | 30m Per Roll Or 50m Per Roll | Layer: | 3 Layer (4 Layer Or 5 Layer Could Be Supply By Us) |
| High Light: | geotextile drainage fabric,geotextile road fabric |
||

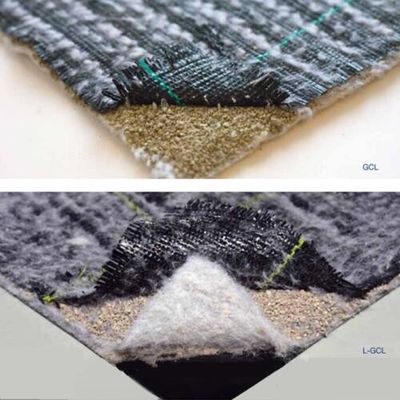

3 Layer Geosynthetic Clay Liner With 4000GSM GCL For Artificial Lake
3 Layer Geosynthetic Clay Liner Description
Geosynthetic clay liner is a new type of geosynthetics in the market currently. As per the structure, Geosynthetic clay liner can be devide into 3 layer, 4 layer and 5 layer. 3 layer Geosynthetic clay liner made from two layers geotextile (PP woven geotextile and PET nonwoven geotextile) with natural sodium in the centre. Geosynthetic clay layer has all the characteristics of geosynthetic materials, moreover it also has excellent waterproof performance.
3 Layer Geosynthetic Clay Liner Specification
| Unit weight |
≥3600g/sq.mt, better ≥4000g/sq.mt
|
| Width x length |
4m-6m width, recommend size 5.8m widht x 30m/Roll
|
| 3 layer |
woven geotextile + natural sodium + nonwoven geotextile
Usually, Woven Geotextile use 120G PP woven geotextile;
Nonwoven geotextile us 220g PET or PP
Or do as your indication.
|
|
Loading
|
40'ft could be load about 37Roll (6438 Sq.mt) |
3 Layer Geosynthetic Clay Liner Property
* Sweel when meet water
* Long time waterproofing and friendly to environment
* Separation, reinforcement, protection, filtration and easy for construction
3 Layer Geosynthetic Clay Liner Application
* Municipal project, subway, undergroung and roof waterproofing
* Landfill, waste water treatment, industrial waste
* Waterproofing and reinforcement in water conservancy, river, lake and dam
* Artificial lake, golf courst and fish pond
* Petrifaction and mineral waterproofing
