Grass Soil Black Plastic HDPE Geocell , 150mm Height Plastic Gravel Stabilizer

Grass Soil Black Plastic HDPE Geocell , 150mm Height Plastic Gravel Stabilizer
Grass Soil Black Plastic HDPE Geocell , 150mm Height Plastic Gravel Stabilizer Grass Soil Black Plastic HDPE Geocell , 150mm Height Plastic Gravel Stabilizer

Large Image :  Grass Soil Black Plastic HDPE Geocell , 150mm Height Plastic Gravel Stabilizer

Product Details:
Place of Origin: China
Brand Name: Huatao
Model Number: HTZM-Geocell-03
Payment & Shipping Terms:
Minimum Order Quantity: 100sq.m.
Price: Price accept negotiation
Packaging Details: average 10days per 40ft high container
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Geocell Materia: HDPE Geocell Color: Black, Green, Yellow
Geocell Strength: 1420N/10cm, 1200N/10cm, 1000N/10cm Geocell Height: 50mm, 75mm, 100mm, 150mm, 200mm
Geocell Thickness: 1.0mm, 1.1mm, 1.2mm, 1.3mm, 1.5mm, 1.6mm, 1.7mm Geocell Welding: 300mm, 330mm, 400mm, 450mm, 500mm, 600mm, 660mm, 712mm, 800mm, 900mm, 1000mm
Geocell Surface: Smooth And Textured Geocell Hole: With Hole Or Without Hole, Circular Hole Or Rectangle Hole
HS Code: 3902100090 Package: Pallet
High Light:

geotextile drainage fabric

,

geotextile filter fabric





Grass Soil Black Plastic HDPE Geocell , 150mm Height Plastic Gravel Stabilizer

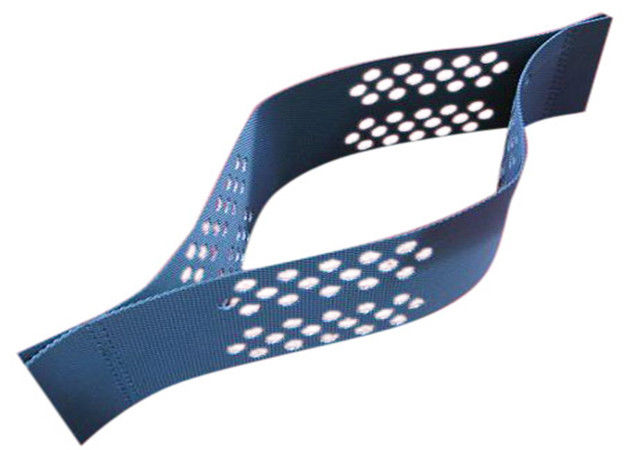

HDPE Geocell Description



Made of welding high tensile HDPE broad bands. It has many cells and is very flexible.

Geocell made of PE or PP sheets through High intensity ultrasonic welding to be three-dimensional net structure material.

It uses local materials (sand, gravel, mud, etc.) as a filler material to be a combination of the steady structurel,achieve a high load carrying capacity.can make roadbed more steady, but also can plant on it, green the slope stability.



Geocell Specification



Name HDPE Geocell / Geoweb
Height (D) 50mm, 75mm, 100mm, 150mm, 200mm
Thickness 1.1mm ,1.2mm, 1.3mm, 1.5mm, 1.6mm,1.7mm
Welding Distance (C) 300mm, 330mm, 400mm, 450mm, 445mm, 500mm, 600mm, 660mm, 712mm, 800mm, 900mm, 1000mm
Surface Smooth or Textured
Perforated or Withtout
Color Black, Green, Yellow
Samples Free



Geocell Applying Area



1. Be used for firm the roadbed of railroad;

2. Be used for firm highway soft foundation handling;

3. Be used for dike and retaining wall, which can bear load force;

4. Be used to harness the shoal water runway;

5. As pipeline and the sewer's propping up structure;

6. Be used for mixed type retaining wall that prevent the slope from falling down and bear load force;

7. Be used for independent wall, dock and breakwater;

8. Be used to harness the desert, beach and riverbed ,river bank



HDPE Geocell Function



1. Slope Protection

The geocell Slope protection system prevents sliding or sloughing off by providing sufficient weight at the foot and or along the face of the slope.

2. Earth Protection

The geocell earth protection system minimizes and eliminates erosion actions of wind and water on exposed soils.

3. Channel Protection

The geocell channel protection system protects channel slops from soil erosion and confines the infill material that from the channel bed and banks.

4. Ground Stabilization

The Geocell Ground Stabilization System provides cost-effevtive solution to ground stabilization project.

5. Vegetation Retention

The Geocell Vegetation retention system’s horizontal create a natural environment for sustainable vegetation and allow water to collect through the wall fascia, and minimizing runoff.



Construction Method



1. Unfolding the geogrid (Some fiber-material can be put under the geogrid according to the concrete condition,for example geotextile and felted cushion.)

2. Fixing it with nail or connecting with the frame of stretcher;

3. Used loader to fill with filler until it is full top and beyond of the geogrid, then through vibration

and rolling, the subbase is completed

By now, the system of geogrid can prop up kinds of construction equipment, and that construction directly above it is accepted, together with conventional manner surface



Grass Soil Black Plastic HDPE Geocell , 150mm Height Plastic Gravel Stabilizer 0       Grass Soil Black Plastic HDPE Geocell , 150mm Height Plastic Gravel Stabilizer 1     Grass Soil Black Plastic HDPE Geocell , 150mm Height Plastic Gravel Stabilizer 2       Grass Soil Black Plastic HDPE Geocell , 150mm Height Plastic Gravel Stabilizer 3   Grass Soil Black Plastic HDPE Geocell , 150mm Height Plastic Gravel Stabilizer 4        Grass Soil Black Plastic HDPE Geocell , 150mm Height Plastic Gravel Stabilizer 5
