Product Details:
Payment & Shipping Terms:
|
| Material: | PP | Width: | 2m Or As Request |
|---|---|---|---|
| Thickness: | 0.5-15cm | Color: | Black,White |
| High Light: | geotextile filter fabric,geotextile road fabric |
||

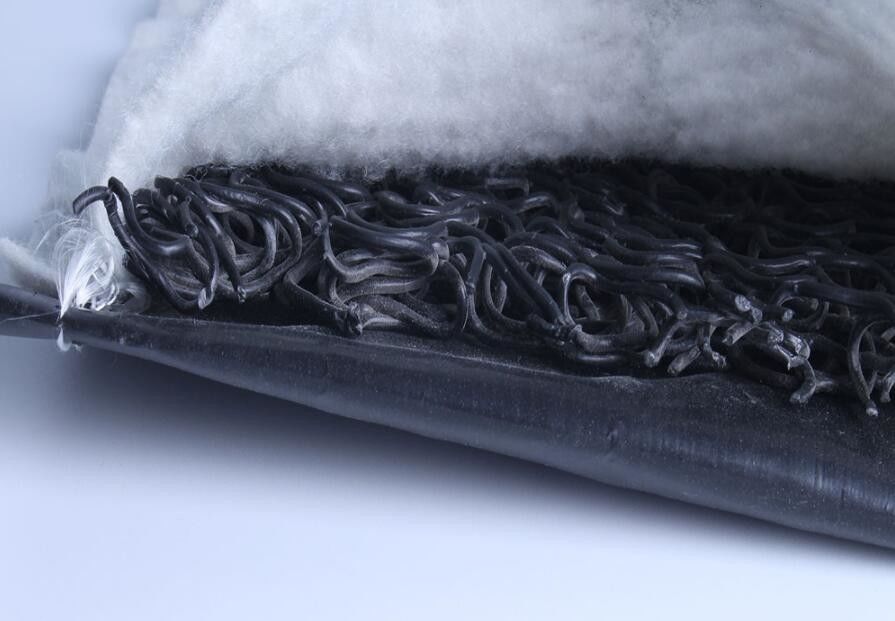

Hdpe Geonet 2m Width Black PP Geocomposite Drain Drainage Sheet Mat With Geomembrane
Description:
The Drain Drainage Sheet Mat is a kind of new geosynthetics made by melting silk, which has resistance high pressure and high hole density. the function of collecting water and horizontal drainage. The composition is a three-dimensional geo net core, both sides are equipped with needle punching non-woven geotextile. Three-dimensional geonet core can quickly discharge groundwater, itself has a pore maintenance system, can be blocked under high load capillary water. At the same time, it can also play a role in isolation and reinforcement.
Specification:
Drain Drainage Sheet Mat
thickness:0.5-15 cm
width:20cm-200cm
length:1m-30m
Compressive Strength:30-100Kpa
| Item | SPS-10 | SPS-15 | SPS-20 | SPS-30 | SPS-40 | SPS-50 | SPS-60 | SPS-70 | SPS-80 | SPS-90 | SPS-100 | |
| Thickness | 10mm | 15mm | 20mm | 30mm | 40mm | 50mm | 60mm | 70mm | 80mm | 90mm | 10mm | |
| Compressive strength |
Flattening 10% |
30-150 Pa | ||||||||||
|
Flattening 20% |
40-240 Pa | |||||||||||
|
Flattening 30% |
50-300 Pa | |||||||||||
| Gap rate≥ | 70-90% | |||||||||||
1) With the high voltage - resistance and high aperture ratio,it can collect water from surroundings and drain in level direction.
2) After coated by non woven geotextile,it can collect the rain water and sewage underground without any block.
Usage:
1) Drainage mats and non-woven geotextile composite, can be buried in the buried under the cover, will be collected through the soil cover the rainwater or the yard itself emissions of sewage, the use of its unique drainage function, in accordance with the engineering requirements From the geotextile mats in the orderly discharge, and will not form a clog. So that it is possible to avoid possible sliding problems due to the saturation of the soil cover.
2) geotextile mats can drain, but also emissions of soil due to fermentation of biogas, in the landfill application is particularly applicable.
3) geotextile mats and HDPE combined with the application, while can play a very good protection of HDPE film is not puncture effect.
Application:
1) Highway and roadway subgrade
2) Retaining wall
3) Landfill
4) Roof garden
5) Building foundation
6) Underground irrigation
