Geosynthetic Clay liner, GC Blanket With 0.2MM Thickness HDPE Geomembrane

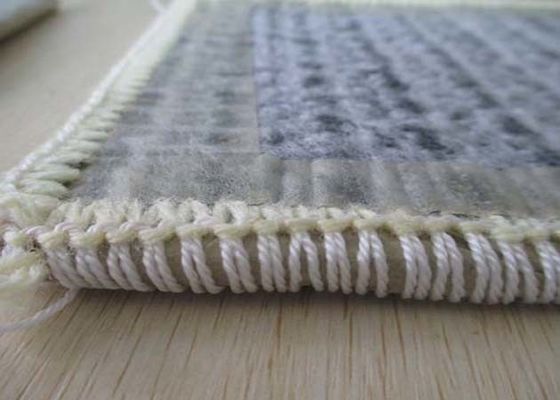

Large Image : Geosynthetic Clay liner, GC Blanket With 0.2MM Thickness HDPE Geomembrane

Product Details:

Place of Origin:	China
Brand Name:	huatao
Certification:	ISO, CE, GB Standard, ASTM standard
Model Number:	HT-098

Payment & Shipping Terms:

Minimum Order Quantity:	1 Ton
Packaging Details:	Iron pipe for inner package + woven bag for outside package
Delivery Time:	5-7days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10000Sq.mt per week

Contact Now

Detailed Product Description

Weight Of GCL:	3600GSM To 5500GSM	Recommend Size Of GCL:	5.8m Width X 30m Length Per Roll
Layer:	4 Layer	Structure:	Woven Fabric + Clay + Nonwoven Fabric + 0.2mm HDPE Geomembrane
Package:	Iron Pipe + Woven Bag
Highlight:	geotextile drainage fabric , geotextile filter fabric

Geosynthetic Clay Liner, GC Blanket With 0.2MM Thickness HDPE Geomembrane

Product Specifications

Attribute	Value
Weight of GCL	3600GSM to 5500GSM
Recommend Size of GCL	5.8m width x 30m length Per Roll
Layer	4 layer
Structure	woven fabric + clay + nonwoven fabric + 0.2mm HDPE Geomembrane
Package	Iron pipe + woven bag

Product Description

Our Geosynthetic Clay Liner (GC Blanket) combines two layers of geotextile with natural sodium bentonite core. For specialized project requirements, we integrate a 0.2mm HDPE geomembrane (available in black or white) to enhance waterproofing performance in demanding environments.

Technical Details

GSM of GCL	3500g-6000g
Standard Roll Size	5.8m x 30m or 5.8m x 50m per roll
4-Layer Structure	First Layer: Woven Geotextile (120GSM PP Material) Second Layer: Expansion Bentonite Third Layer: Non-Woven Geotextile (220GSM PET/PP Material) Fourth Layer: HDPE Geomembrane (0.2mm thickness, black/white) Note: All GSM specifications can be customized to meet project requirements.
Shipping Configuration	20ft container, 40ft container
Available Models	GCL-NP, GCL-OF, GCL-AH

Applications

Municipal projects: subway, underground and roof waterproofing
Environmental protection: landfill, wastewater treatment, industrial waste containment
Water conservancy: river, lake and dam waterproofing and reinforcement
Recreational water features: artificial lakes, golf courses, fish ponds
Industrial applications: petrochemical and mineral waterproofing

Compliance Standard

JC/T 193-2006
