Toilet Paper Mill 1m2 SGS Horizontal Vibrating Screen

Toilet Paper Mill 1m2 SGS Horizontal Vibrating Screen
Toilet Paper Mill 1m2 SGS Horizontal Vibrating Screen Toilet Paper Mill 1m2 SGS Horizontal Vibrating Screen Toilet Paper Mill 1m2 SGS Horizontal Vibrating Screen Toilet Paper Mill 1m2 SGS Horizontal Vibrating Screen

Large Image :  Toilet Paper Mill 1m2 SGS Horizontal Vibrating Screen

Product Details:
Place of Origin: CHINA
Brand Name: HT
Certification: SGS 、ISO
Model Number: PM02
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 2,500-5,000/set
Packaging Details: Export packing.(Wooden case, carbon cast and pallet).
Delivery Time: 20Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5PCS/Month
Detailed Product Description
Port: Shanghai, China Manufacturing Process: Cnc Milling
Material: Stainless Steel Condition: New
Screen Area: 1m2 Screen Slot Size: 0.5-2.0mm
High Light:

toilet paper mill vibrating screen

,

1m2 horizontal vibrating screen

,

SGS horizontal vibrating screen

Toilet Paper Mill Vibrating Screen High Capacity Stainless Steel Vibrating Screen



Product Description



The vibrating screen belongs to the Screening System of paper machinery and is a more advanced Screening System. A vibrating screen is developed with reference to foreign equipment. This machine has the following advantages, such as a reasonable design, strong screening ability, self-cleaning effect, high working efficiency, energy-saving, low noise, easy maintenance, and so on, and is more advanced screening equipment at home. It is mainly used for screening coarse pulp in the pulping and paper-making industry.





Specification Sheet



Type HT-4 HT-5 HT-6 HT-7
Screen area: m2   1 2 3 4

Consistency of inflow pulp



Hole screen: % 1.2-1.5
Slot screen: % 0.5-0.8
The capacity of product: t/d

Treating tail



Hole screen: t/d 4.5-15 9-30 13.5-45 18-60
Slot screen: t/d 2.-45 4-9 6-13.5 8-18
Main flow Hole screen: t/d 7.5-25 15-50 22.5-75 30-100
Slot screen: t/d 3.5-7.5 7-15 10.5-22.5 14-30
Power of motor: kw 2.2 3 4 5.5





Features



  1. Shock-relieving assembly is made from special rubber, therefore, the screen basket is stable during operation, with low noise.
  2. For different areas, the hole diameter arrangement of the screen plate is different, which is beneficial to removing impurities and reducing fiber loss, Air-seal chamber with a special design can make the self-washing ability of the screen plate strong.

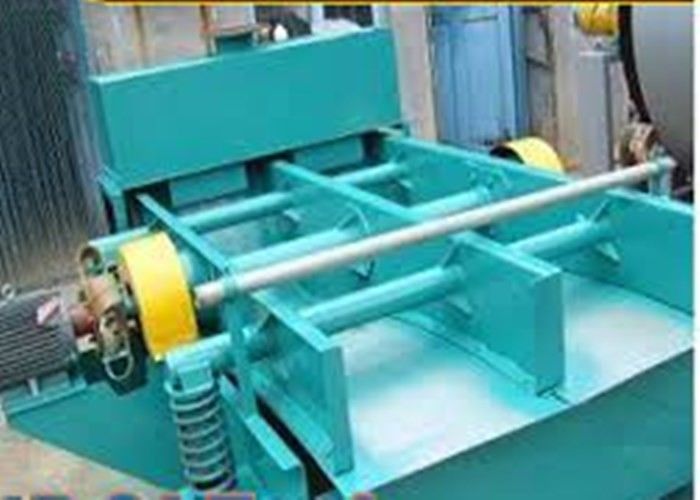

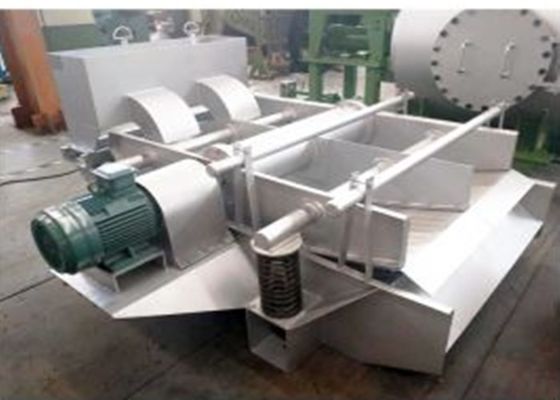

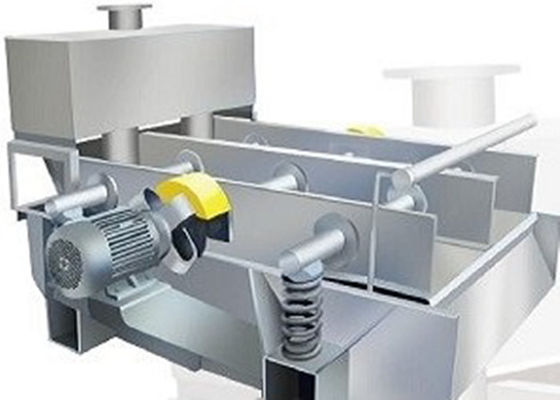

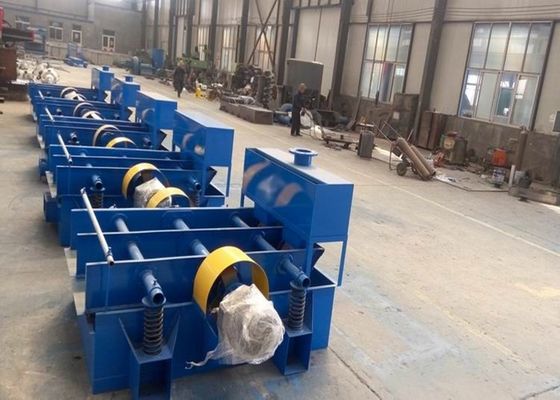

Product Photos



Toilet Paper Mill 1m2 SGS Horizontal Vibrating Screen 0

Toilet Paper Mill 1m2 SGS Horizontal Vibrating Screen 1

Toilet Paper Mill 1m2 SGS Horizontal Vibrating Screen 2
