Product Details:
Payment & Shipping Terms:
|
| Layer: | SSB 3 Layer | Material: | PET |
|---|---|---|---|
| Usage: | Paper Sheet Forming In Paper Machine | Name: | Forming Wire |
| Feature: | Acid Resistance | Advantage: | High Fiber Support Index |
| Place Of Origin: | China | Color: | Green,White |
| Brand: | Huatao | Width: | Max 14 Meter |
| High Light: | polyester paper machine clothing,3 layer paper machine clothing,ssb paper machine clothing |
||

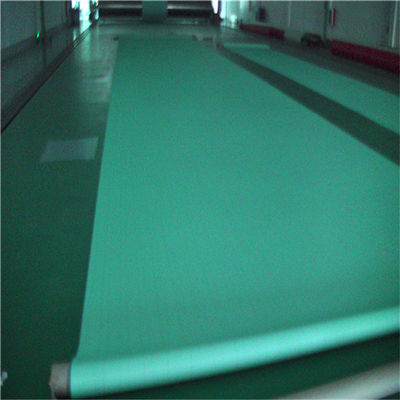

3 Layer Forming Wire for paper machine clothing
This fabric used for form the paper sheet, dewatereing and transfer the wet paper sheet. the fabrics designed to retain as much fiber components as possible, meanwhile allowing water to drain through them.
Application of 3 layer forming wire:
3 Layer forming wire mainly used for all grade high speed paper machine which request high fiber support index and more smooth sureface of paper sheet.
Technical parameters of forming wire:
It can be divided into single, 1.5, double, 2.5, triple (SSB) layer. Which applicable to the machine speed up to 2000m/min.
SSB Forming Wire
| FABRIC CODE | WARP DENSITY | WEFT DENSITY | WARP DIAMETER | WEFT DIAMETER | AIR PERMEABILITY | FSI | DI |
| HT6020 | 69.5~70.5 | 79.5~80.5 | 0.13, 0.20 | 0.13 0.13, 0.27 0.27 | 250CFM | 195 | 25.4 |
| HT5220-1 | 59.5~60.5 | 62.5~63.5 | 0.13, 0.20 | 0.13 0.13, 0.25 0.25 | 540CFM | 157 | 43.2 |
| HT5220-2 | 59.5~60.5 | 63.5~64.5 | 0.13, 0.20 | 0.13 0.13, 0.30 0.30 | 445CFM | 159 | 36.2 |
| HT5224 | 51.5~52.5 | 57.5~58.5 | 0.17, 0.25 | 0.17 0.17, 0.40 0.40 | 250CFM | 142 | 18.4 |
| HT4224 | 41.5~42.5 | 43.5~44.5 | 0.22, 0.30 | 0.22 0.22, 0.45 0.45 | 350CFM | 110 | 19.6 |
paper machine wire cloth Section Feature:
1.High density,good permeability
2.Acid,alkali resistance,heat resistance under 180 degrees
3.Wear resistance,long work time
4.Smooth surface,high strength
5.Install easy to use, interface without imprint
FAQ:
A: There are many methods for us to confirm the type:
1). tell us the specifications data.
2).tell us your requirements as more as possible, and our engineers will give you the best suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.
3). send us the photos with size
4). send us a small piece sample.
A: We prefer T/T, but for some countries, we will also accept L/C.
So pls feel free about the payment.
A: Usally, we will deliver the goods within 15 working days. And if the quantity is big, it will take about 20-30 working days.
A: The time is different differ the usage and factory. But we can confirm and make sure that our product can be used longer than any other one in China.
A: Of course it is.
By sea, we will pack every piece into wooden/wood box.
By air, we will pack it by strong water-proof bag.
Looking for ideal Triple Layer Forming Fabric Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Polyester Triple Layer Forming Fabric are quality guaranteed. We are China Origin Factory of Paper Making Triple Layer Forming Fabric. If you have any question, please feel free to contact us.
