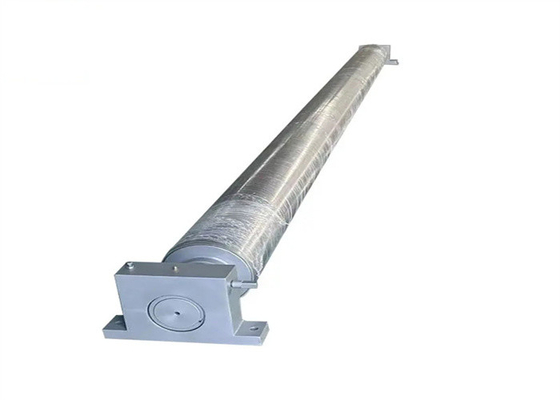

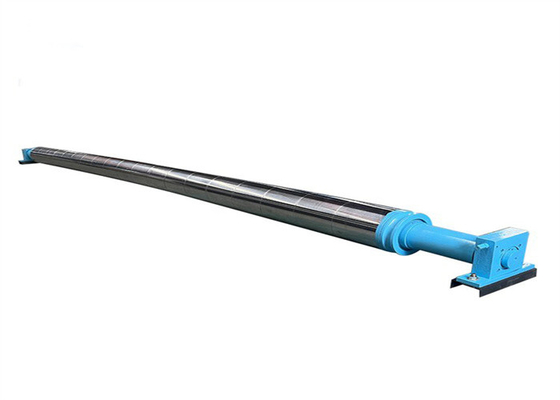

Spreader Roll Description

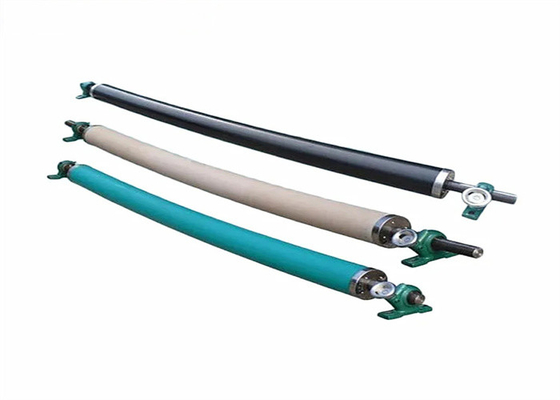

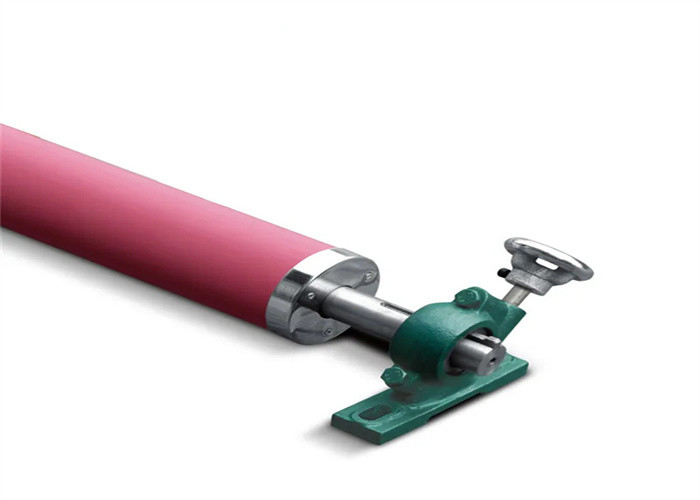

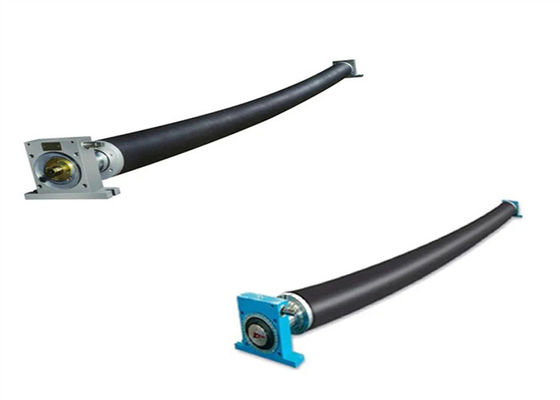

The Spreader Roll is a kind of roller used to eliminate wrinkles and adhesions in the process of coil cutting and winding. The curved shaft is also called a bending roll due to the irregular curvature of the roll surface. The curved roller is mainly composed of the curved mandrel, rolling bearing assembly, rubber sleeve, end sleeve, support, and adjusting wheel. The mandrel has a certain radian and is fixed on the equipment support with support. The mandrel and the roller surface are linked by bearings so that the roller surface can rotate synchronously with the coil to complete the stretching function. The arc roller bends the shaft into the required arc shape, and the shaft is equipped with bearings at a certain distance, and the rubber sleeve is put on the bearing to form an arc-shaped roller that can rotate around the shaft.

Spreader Roll Specifications

Spreader Roll Features

1. High line speed, small runout, no noise, high reliability, and stability
2. No disconnection and no pollution: there will be no disconnection or even oil leakage during operation
3. It has a unique flattening function for substrates that are tight in the middle and loose on both sides or loose in the middle and tight on both sides
4. The rotation torque is small and can bear a large pulling force
5. Good sealing performance, waterproof, acid, and alkali resistance
6. Safe and durable, easy to install and debug

Spreader Roll Applications

Paper processing, plastic film processing, textile processing, non-woven fabric processing, packaging products, coating processing and other industries

Spreader Roll Structure

The internal structure of the spreader roller mainly includes bearings, retaining rings, extension springs and cams. Among them, the bearing is the most critical part of the curved roller, which drives the rotation of the curved roller through the bearing, thereby helping the object to pass smoothly. The retaining ring mainly serves to fix the position of the bearing and ensure the smooth rotation of the bearing. The tension spring is to relieve the impact force of the arc roller during the working process and reduces the burden on the bearing. The cam is responsible for driving the bearing to rotate and works together with the upper pinion to realize the normal operation of the arc roller.
