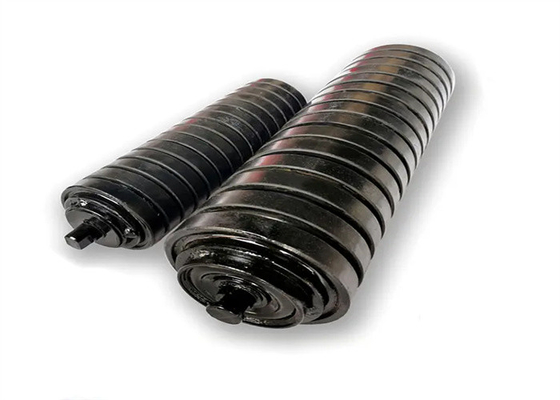

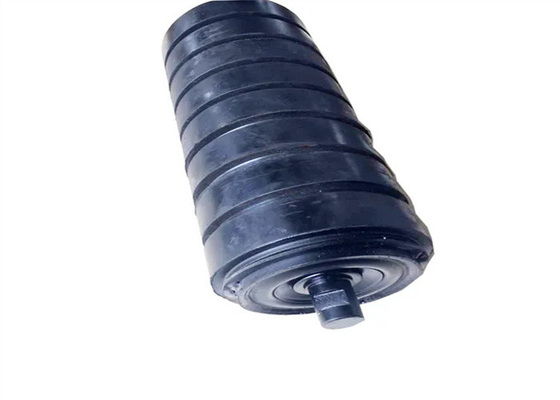

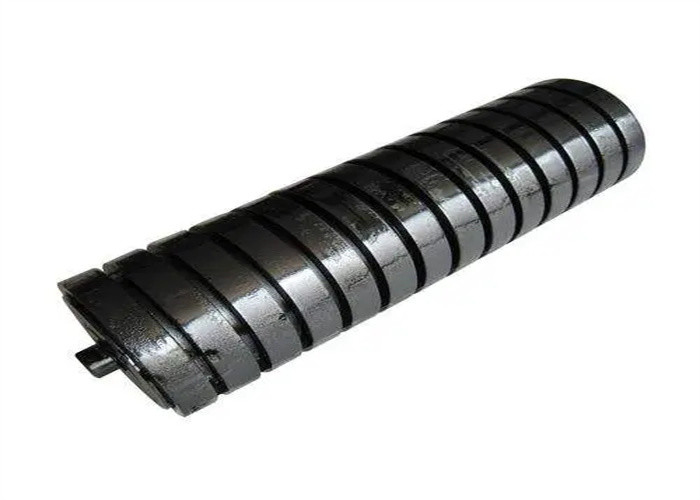

Smooth Running Robust Durable Supporting Roller For Mining Equipment

Smooth Running Robust Durable Supporting Roller For Mining Equipment
Smooth Running Robust Durable Supporting Roller For Mining Equipment Smooth Running Robust Durable Supporting Roller For Mining Equipment Smooth Running Robust Durable Supporting Roller For Mining Equipment Smooth Running Robust Durable Supporting Roller For Mining Equipment

Large Image :  Smooth Running Robust Durable Supporting Roller For Mining Equipment

Product Details:
Place of Origin: China
Brand Name: Huatao
Certification: ISO
Model Number: HT-Support Roll
Payment & Shipping Terms:
Minimum Order Quantity: 10 piece
Price: USD 20 per piece
Packaging Details: Wooden case
Delivery Time: 20-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800 to 1000PCS/Day
Detailed Product Description
Product Name: Supporting Roll Roller Shaft: Q235 Carbon Steel
Life Time: More Than 30000 Hours Hardness: Shore(A)63±5 Degrees
Roller Length: 150mm To 3500mm Roller Bearing: 204, 305and306
High Light:

smooth running industrial conveyor roller

,

robust supporting roller

,

supporting roller for mining equipment

Smooth Running, Robust And Durable Supporting Roll For Mining Equipment



Supporting Roll Description

The bearing pallets are installed on the loaded branches to support the belt and the material. The load bearing pallets are set into different shapes of carrying section according to the nature of the materials to be transported. For example, for transporting bulk materials, grooved bays are usually used to improve productivity and prevent spreading of materials, while for transporting bulk materials, parallel bays are used.

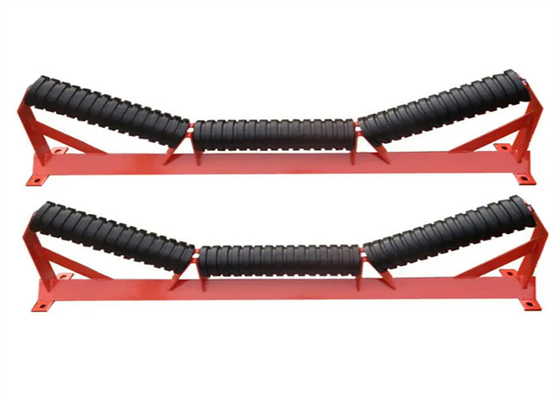

The slotted pallet set usually consists of three or more spokes, among which the rigid three-section slotted pallet stick and the string hanging three-section slotted pallet are especially common. The bevel angle A of the side wheel of the slotted pallet is called slot angle, generally 300-350.



Supporting Roll Specification

Bandwidth D L Bearings
500 89 200 6204/C4
650 89 250 6204/C4
800 108 315 6204/C4
1000 133 380 6306/C4
1200 159 465 6308/C4
1400 159 530 6308/C4



Supporting Roll Features

The bearing rollers adopt slotted forward tilting rollers, the arrangement spacing shall not be greater than 1200mm, 1 group of upper centering rollers in every 10 groups of bearing rollers, 2 groups of transition rollers at the head and tail. The arrangement distance of the convex arc section bearing rollers shall not be greater than 600mm, and the arrangement distance of the bearing rollers under the guide slot shall not be greater than 400mm. the rollers adopt the three-section roller group with the diameter of 159mm, slot angle of 35° and forward inclination of 2°.





Smooth Running Robust Durable Supporting Roller For Mining Equipment 0Smooth Running Robust Durable Supporting Roller For Mining Equipment 1Smooth Running Robust Durable Supporting Roller For Mining Equipment 2
