CIPP Inspection Pipeline Periscope QV Inspection For CIPP Pipe Inspection

CIPP Inspection Pipeline Periscope QV Inspection For CIPP Pipe Inspection

Description For CIPP Inspection Pipeline Periscope QV Inspection For CIPP Pipe Inspection:

The Pipeline Periscope—commonly referred to within the industry as "QV inspection"—is a portable, high-tech device specifically designed for the rapid screening and endoscopic diagnosis of underground pipeline networks.

How Does It Work?
The core structure of the Pipeline Periscope is both simple and efficient. It primarily consists of a telescopic operating pole (typically made of carbon fiber, with lengths ranging from 5 to 12 meters), a probe equipped with a high-intensity light source and a high-definition zoom camera, and a handheld control tablet located at ground level.

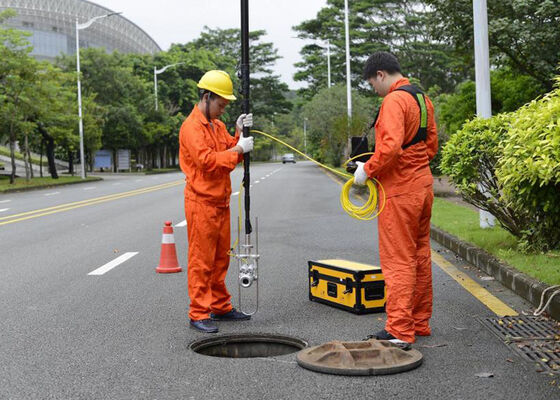

During an inspection, the operator simply stands at the manhole opening and extends the probe into the interior of the pipeline. Utilizing the camera's high-magnification optical zoom (some models offer up to 30x or even 300x zoom) combined with powerful illumination, real-time high-definition video footage of the pipeline's interior is transmitted—either wirelessly or via cable—to the control terminal at ground level. Operators can simultaneously observe the live feed, record video, capture still images, and log the precise locations of any detected defects in real time.

Application For CIPP Inspection Pipeline Periscope QV Inspection For CIPP Pipe Inspection:
The Pipeline Periscope is primarily used to identify two major categories of issues within pipelines:
1. Structural Defects: Such as cracks, ruptures, deformation, misalignment, joint separation, corrosion, leaks, etc.
2. Functional Defects: Such as silt accumulation, scaling, blockages caused by foreign objects, tree root intrusion, or unauthorized connections and illicit discharge.

Its core advantages lie in its "speed" and "portability," making it ideally suited for the following:
1. Municipal Network Surveys and Preliminary Screening:** Rapidly surveying large-scale stormwater and sewage networks to quickly pinpoint problematic pipeline segments.
2. Environmental Supervision and Enforcement:** Enabling environmental protection agencies to investigate and penalize illegal activities, such as unauthorized cross-connections between stormwater and sewage systems, or illicit discharge and leakage by enterprises.
3. Pre-Rehabilitation Surveys (Non-Excavation):** Prior to undertaking trenchless rehabilitation methods (such as CIPP), the device precisely identifies the location and severity of pipeline defects, providing a solid basis for formulating an effective repair plan.
4. Emergency Response:** Rapidly identifying the underlying causes of issues within manholes during emergencies, such as road collapses or sudden pipeline blockages.
