Fast Response Sensor Equipped Induction Heating Roller For Stretch Extrusion And Composite Molding

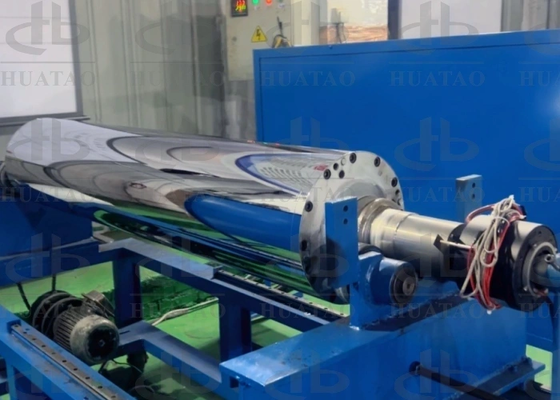

Large Image : Fast Response Sensor Equipped Induction Heating Roller For Stretch Extrusion And Composite Molding

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO
Model Number:	ELECTROMAGNETIC INDUCTION HEATING ROLLER

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Box
Delivery Time:	5-8 weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 PCS/Year

Contact Now

Detailed Product Description

Product Name:	Fast Response Sensor Equipped Induction Heating Roller For Stretch Extrusion And Composite Molding	Key Words:	Electromagnetic Induction Heating Roller, Heating Roller
Processing Accuracy:	Roller Surface Temperature Difference ≦±1℃	Straightness Runout:	≤0.01mm
Material:	Hard Chromium Plating, Teflok, Spray Ceramic Or Tungsten Carbide	Field:	PTFE Carbon Fiber，nonwoven
Surface Treatment:	Hard Chromium Plating, Teflok, Spray Ceramic Or Tungsten Carbide
Highlight:	induction heating roller for stretch extrusion , fast response sensor industrial roller , composite molding induction heating roller

Fast Response Sensor Equipped Induction Heating Roller For Stretch Extrusion And Composite Molding

Product Features

Uniform Thermal Output Across Roller Length: Modified induction core craft balances surface heat divergence within ±1℃, fit carbon fiber and composite high low medium temperature forming.

Precision Sensing Thermal Regulation: Calibrated sensor probes confine temperature swing to 0.1℃, layered ceramic isolation and water cooling coil sustain continuous 600℃ high-load working.

Hidden Danger Eradication Design: Pure non-oil heating eliminates deformation under pressure, blast accident and medium leakage drawbacks of sealed oil circulation rollers.

Low-carbon Running Setup: Omit all oil supply cabinets and steam piping layouts, avoid fluid overflow, factory waste and harmful gas emission in full service cycle.

Verified Energy Reduction Outcome: Reduce total power cost 50~70% compared with regular industrial heating rollers, roller heating acceleration speed doubles significantly.

Technical Specifications

Material	High-quality 45# steel, alloy steel
Roller Surface Temperature Difference	≦±1℃
Heating Method	Electromagnetic induction heating
Surface Treatment	Hard chromium plating, Teflok, spray ceramic or tungsten carbide
Processing Accuracy	≤0.005mm
Straightness Runout	≤0.01mm

Application Fields

Printing, packaging, textiles, non-woven fabrics, thermal transfer printing, laser anti-counterfeiting, electronics, specialty paper, paper drying, pre-coated film lamination, laminated iron/aluminum production, optical films, stretch films, PTFE films, solar panel lamination, lithium battery components, PTFE coated filters, copper clad laminates, polyimide synthesis, chemical fibers, carbon fibers, sheet calendering, rubber/plastic/metal plate processing, high-temperature material composites.

About Huatao Group

Located in Shijiazhuang, Hebei, China, we specialize in manufacturing rollers for BOPET, BOPP, CPP lines, slitters, metalizers, and laminating machines. We welcome partnerships to create a prosperous future.
