Polished Anti Wear Surface Induction Heating Roller For Fiber Calender And Precoat Film Lamination

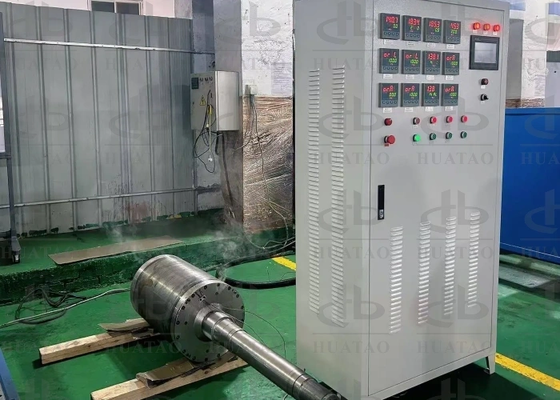

Large Image : Polished Anti Wear Surface Induction Heating Roller For Fiber Calender And Precoat Film Lamination

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO
Model Number:	ELECTROMAGNETIC INDUCTION HEATING ROLLER

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Box
Delivery Time:	5-8 weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 PCS/Year

Contact Now

Detailed Product Description

Product Name:	Polished Anti Wear Surface Induction Heating Roller For Fiber Calender And Precoat Film Lamination	Material:	Hard Chromium Plating, Teflok, Spray Ceramic Or Tungsten Carbide
Key Words:	Electromagnetic Induction Heating Roller, Heating Roller	Processing Accuracy:	Roller Surface Temperature Difference ≦±1℃
Straightness Runout:	≤0.01mm	Field:	PTFE Carbon Fiber，nonwoven
Surface Treatment:	Hard Chromium Plating, Teflok, Spray Ceramic Or Tungsten Carbide
Highlight:	Polished industrial roller for fiber calender , Anti-wear induction heating roller , Precoat film lamination roller

Polished Anti Wear Surface Induction Heating Roller For Fiber Calender And Precoat Film Lamination

Product Features

Homogenized Surface Heating Effect: Tuned electromagnetic induction formula limits whole roller temperature gap ≤±1℃, adaptable to thermal transfer printing graded temperature production lines.

Stable Precise Temp Maintenance: Fine-caliber sensing array keeps temp drift below 0.1℃, composite ceramic liner plus water-cooled winding support long-run peak 600℃ operation.

Intrinsic Safe Working Mode: Direct induction heating bypasses all risks including roller pressure warping, explosion failure and heat medium leakage from oil-based roller systems.

Zero-contamination Eco Layout: Cancel thermal oil storage containers and steam auxiliary fittings, achieve no spillage loss, no workshop pollution and no poisonous exhaust release.

Quantified Energy Optimization Benefit: Consume 50%-70% less energy than outdated heating rollers, thermal response speed doubles to shorten production preparation time.

Technical Specifications

Material	High-quality 45# steel, alloy steel
Roller Surface Temperature Difference	≦±1℃
Heating Method	Electromagnetic induction heating
Surface Treatment	Hard chromium plating, Teflok, spray ceramic or tungsten carbide
Processing Accuracy	≤0.005mm
Straightness Runout	≤0.01mm

Application Fields

Printing, packaging, textiles, non-woven fabrics, thermal transfer printing, laser anti-counterfeiting, electronics, specialty paper, paper drying, pre-coated film lamination, laminated iron/aluminum production, optical films, stretch films, PTFE films, solar panel lamination, lithium battery components, PTFE coated filters, copper clad laminates, polyimide synthesis, chemical fibers, carbon fibers, sheet calendering, rubber/plastic/metal plate processing, high-temperature material composites.

About Huatao Group

Located in Shijiazhuang, Hebei, China, we specialize in manufacturing rollers for BOPET, BOPP, CPP lines, slitters, metalizers, and laminating machines. We welcome partnerships to create a prosperous future.
