Strict Dimension Tolerance Control Induction Heating Roller For Pack Calender And Iron Clad Processing

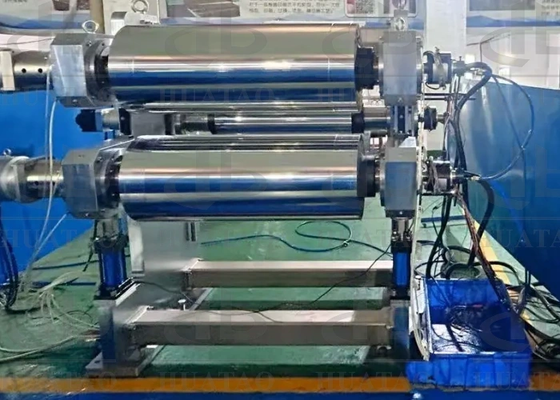

Large Image : Strict Dimension Tolerance Control Induction Heating Roller For Pack Calender And Iron Clad Processing

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO
Model Number:	ELECTROMAGNETIC INDUCTION HEATING ROLLER

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Box
Delivery Time:	5-8 weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 PCS/Year

Contact Now

Detailed Product Description

Product Name:	Strict Dimension Tolerance Control Induction Heating Roller For Pack Calender And Iron Clad Processing	Material:	Hard Chromium Plating, Teflok, Spray Ceramic Or Tungsten Carbide
Key Words:	Electromagnetic Induction Heating Roller, Heating Roller	Processing Accuracy:	Roller Surface Temperature Difference ≦±1℃
Straightness Runout:	≤0.01mm	Field:	PTFE Carbon Fiber，nonwoven
Surface Treatment:	Hard Chromium Plating, Teflok, Spray Ceramic Or Tungsten Carbide
Highlight:	Strict dimension induction heating roller , Industrial roller for pack calender , Iron clad processing induction roller

Strict Dimension Tolerance Control Induction Heating Roller For Pack Calender And Iron Clad Processing

Product Features

Full-surface Homogeneous Heating Outcome: Optimized induction electromagnetic core limits full-length roller heat gap ≤±1℃, fit copper clad laminate low to high temperature compound production.

Accurate Long-run Temp Stabilization: Tuned precision sensing units confine temperature shift to 0.1℃, compound ceramic spacer and water cooling winding allow durable peak 600℃ working.

Hazard-free Structural Advantage: Direct non-oil heating eliminates pressurized warp, equipment crack and oil spill issues widely existing in oil-circulation heating rollers.

Pollution-eliminated System Configuration: Omit all oil storage cabinets and steam auxiliary piping, avoid liquid spillage, site contamination and harmful gas emission entirely.

Distinct Energy Conservation Index: Save fifty to seventy percent operational power compared with ordinary heating rollers, thermal startup efficiency doubles after equipment formal put-in-use.

Technical Specifications

Material	High-quality 45# steel, alloy steel
Roller Surface Temperature Difference	≦±1℃
Heating Method	Electromagnetic induction heating
Surface Treatment	Hard chromium plating, Teflok, spray ceramic or tungsten carbide
Processing Accuracy	≤0.005mm
Straightness Runout	≤0.01mm

Application Fields

Printing, packaging, textiles, non-woven fabrics, thermal transfer printing, laser anti-counterfeiting, electronics, specialty paper, paper drying, pre-coated film lamination, laminated iron/aluminum production, optical films, stretch films, PTFE films, solar panel lamination, lithium battery components, PTFE coated filters, copper clad laminates, polyimide synthesis, chemical fibers, carbon fibers, sheet calendering, rubber/plastic/metal plate processing, high-temperature material composites.

About Huatao Group

Located in Shijiazhuang, Hebei, China, we specialize in manufacturing rollers for BOPET, BOPP, CPP lines, slitters, metalizers, and laminating machines. We welcome partnerships to create a prosperous future.
