Electromagnetic Induction Heating Roller Hard Chromium Plating Teflok Spray Ceramic Or Tungsten Carbide

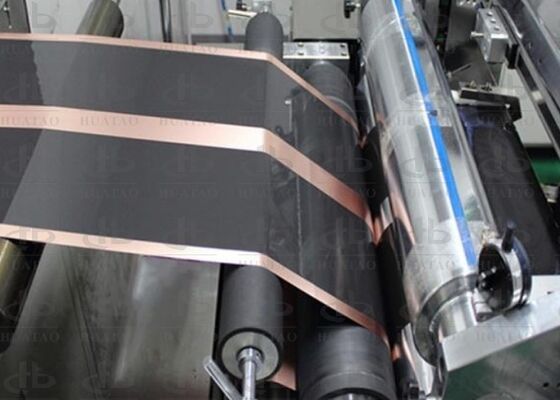

Large Image : Electromagnetic Induction Heating Roller Hard Chromium Plating Teflok Spray Ceramic Or Tungsten Carbide

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO
Model Number:	ELECTROMAGNETIC INDUCTION HEATING ROLLER

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	2000USD/pc-5000USD/pc
Packaging Details:	Wooden Box
Delivery Time:	5-8 weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 PCS/Year

Contact Now

Detailed Product Description

Product Name:	Electromagnetic Induction Heating Roller Hard Chromium Plating Teflok Spray Ceramic Or Tungsten Carbide	Heating Method:	Electromagnetic Induction Heating
Processing Accuracy:	Roller Surface Temperature Difference ≦±1℃	Key Words:	Electromagnetic Induction Heating Roller, Heating Roller
Material:	High-quality 45# Steel, Alloy Steel, And High-quality Steel	Thermal Deformation:	≤0.01mm
Surface Treatment:	Hard Chromium Plating, Teflok, Spray Ceramic Or Tungsten Carbide
Highlight:	Electromagnetic Induction Heating Roller , Hard Chromium Plating Roller , Teflok Spray Ceramic Roller

Electromagnetic Induction Heating Roller Hard Chromium Plating Teflok Spray Ceramic Or Tungsten Carbide

Product Features

Even heat distribution is one of the product’s most valuable strengths. The advanced electromagnetic induction heating technology maintains a surface temperature deviation of ±1°C across all roller diameters and lengths, making it suitable for low‑temperature, medium‑temperature and high‑temperature production processes.

Temperature control accuracy reaches 0.1℃ through precision sensors, ceramic insulation materials and water‑cooled coil design. The roller can operate continuously and stably at a maximum working temperature of 600°C.

Safety performance is significantly improved compared with traditional oil‑heated rollers. The pure electromagnetic heating structure eliminates pressure deformation, explosion risks and medium leakage commonly associated with thermal oil systems.

Environmental protection is also enhanced because no heat transfer oil or steam is required. This means zero leakage, zero pollution and zero hazardous emissions during production.

Energy efficiency is another major advantage. Compared with conventional heating methods, the product saves 50–70% energy and provides heating speeds twice as fast.

Technical Specifications

Material	High-quality 45# steel, alloy steel
Roller Surface Temperature Difference	≦±1℃
Heating Method	Electromagnetic induction heating
Surface Treatment	Hard chromium plating, Teflok, spray ceramic or tungsten carbide
Processing Accuracy	≤0.005mm
Straightness Runout	≤0.01mm

Application Fields

Printing, packaging, textiles, non-woven fabrics, thermal transfer printing, laser anti-counterfeiting, electronics, specialty paper, paper drying, pre-coated film lamination, laminated iron/aluminum production, optical films, stretch films, PTFE films, solar panel lamination, lithium battery components, PTFE coated filters, copper clad laminates, polyimide synthesis, chemical fibers, carbon fibers, sheet calendering, rubber/plastic/metal plate processing, high-temperature material composites.

About Huatao Group

Located in Shijiazhuang, Hebei, China, we specialize in manufacturing rollers for BOPET, BOPP, CPP lines, slitters, metalizers, and laminating machines. We welcome partnerships to create a prosperous future.
